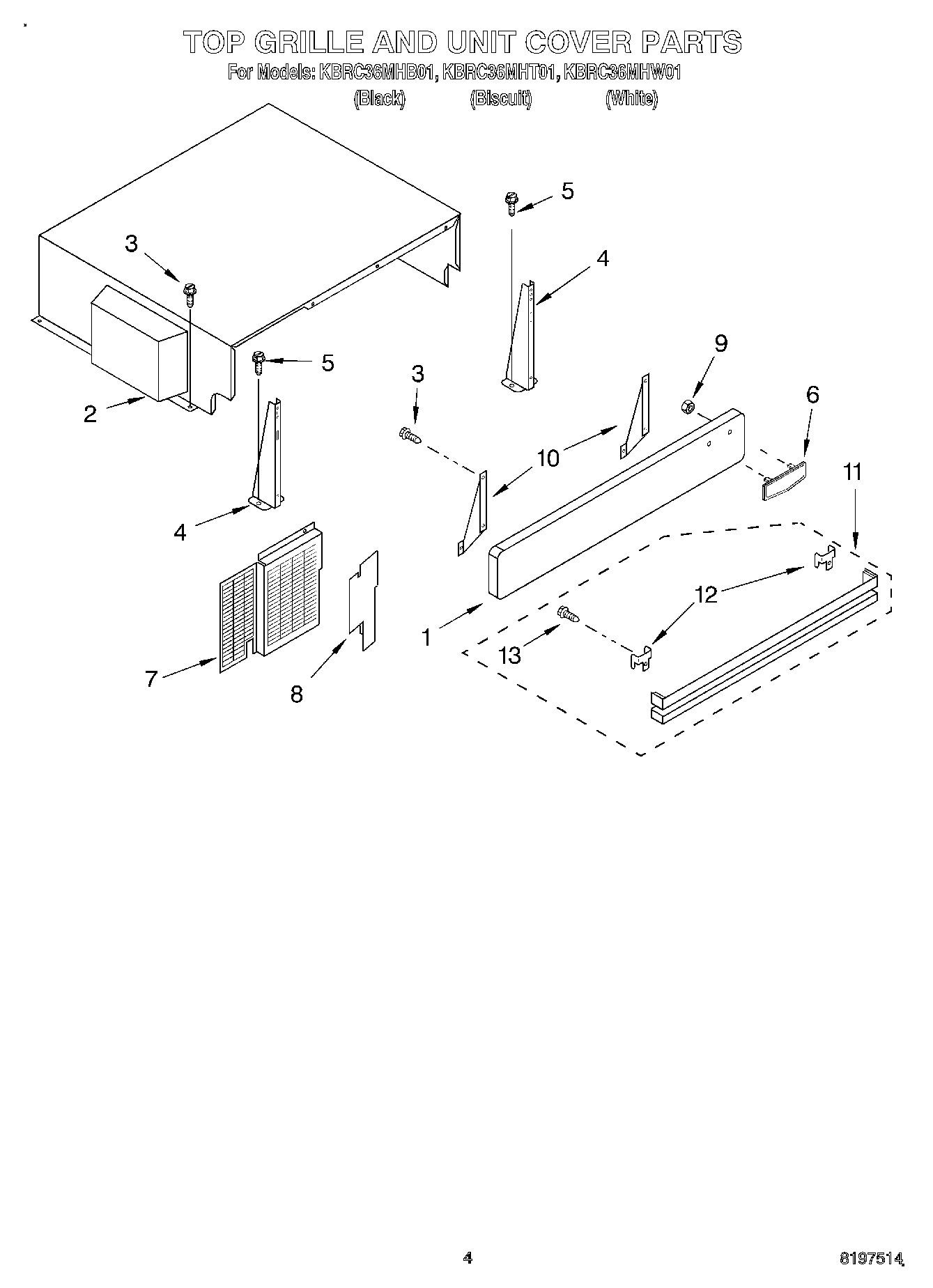

KBRC36MHB01 03 – TOP GRILLE AND UNIT COVER

Products

Position	Product
1	Top Grille Assembly (White)
1	Top Grille Assembly (Biscuit)
1	Top Grille Assembly (Black)
2	Cover, Unit
3	W11624204 Whirlpool Screw
4	Grille, Bracket
5	WP8204624 Whirlpool Bolt
6	Nameplate (Biscuit)
6	Nameplate (White)
6	Nameplate (Black)
7	Guard, Compressor Wiring
8	Baffle-Air, Condenser
9	WP2004333 Whirlpool Refrigerator Nut
10	Bracket, Trim Panel
11	Louver, Vent (White)
11	Louver, Vent (Black)
11	Louver, Vent (Biscuit)
12	Louver, Bracket
13	WPW10141625 Whirlpool Refrigerator Screw Assembly
