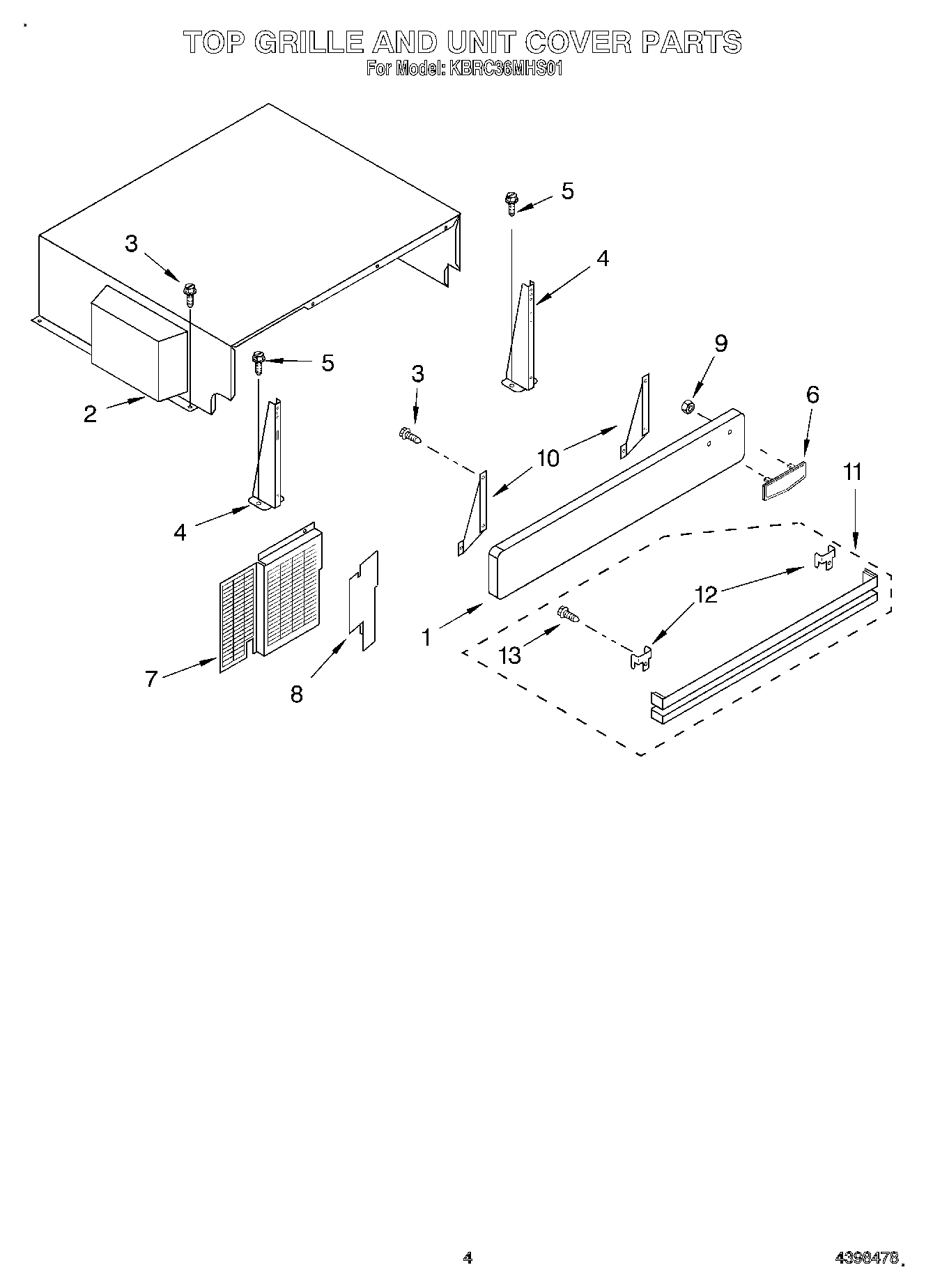

KBRC36MHS01 03 – TOP GRILLE AND UNIT COVER

Products

Position	Product
1	Top Grille Assembly
2	Cover, Unit
3	W11624204 Whirlpool Screw
4	Grille, Bracket
5	WP8204624 Whirlpool Bolt
6	Nameplate (Black)
7	Guard, Compressor Wiring
8	Baffle-Air, Condenser
9	WP2004333 Whirlpool Refrigerator Nut
10	Bracket, Trim Panel
11	Louver, Vent
12	Louver, Bracket
13	WPW10141625 Whirlpool Refrigerator Screw Assembly
