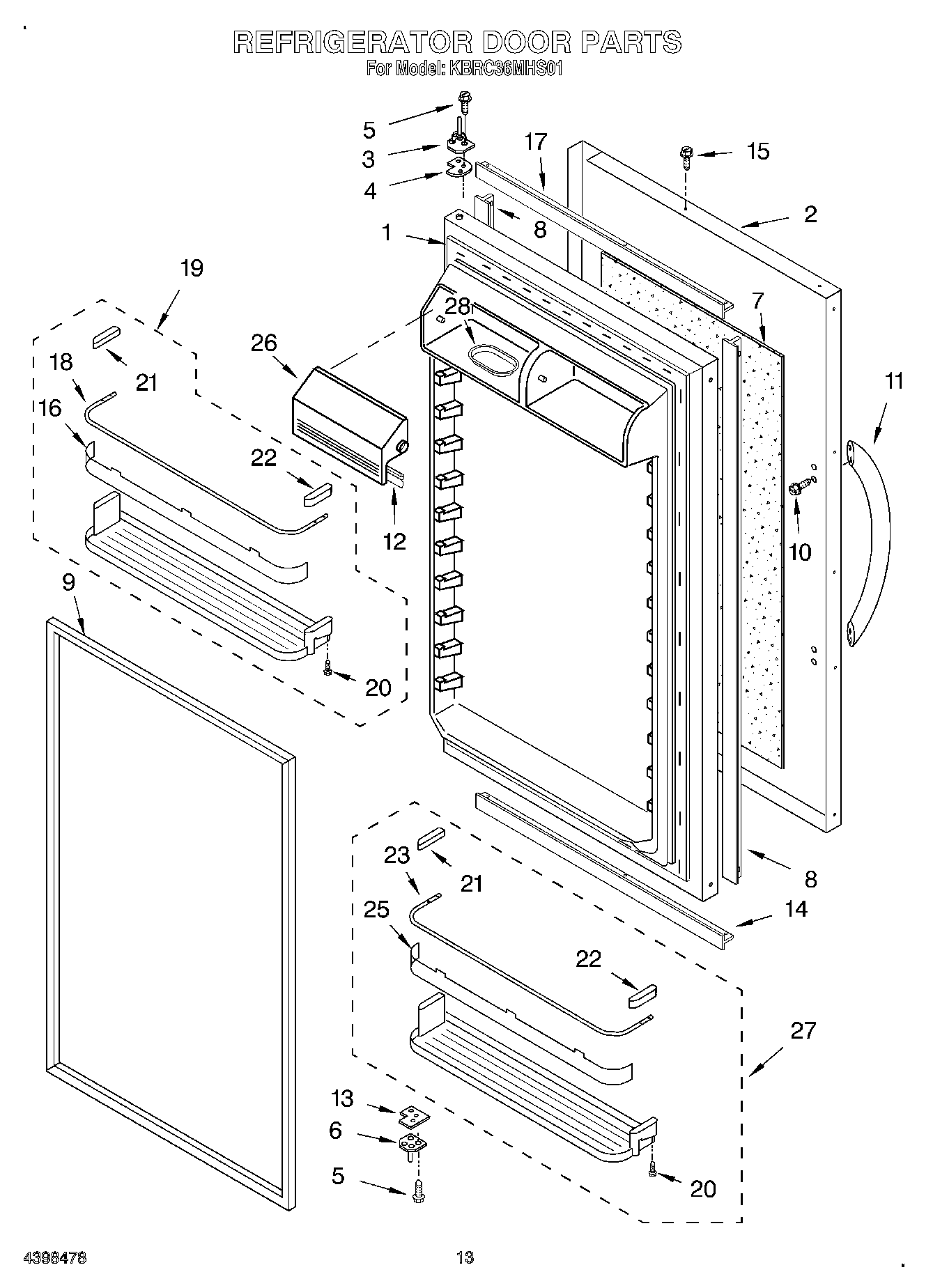

KBRC36MHS01 08 – REFRIGERATOR DOOR

Products

PositionProduct
1Refrigerator Door (Includes Item 9)
2Skin, Door (Stainless Steel)
3Hinge Assembly, Top
4Spacer-Hinge, Top
5W11474472 Whirlpool Screw
6Hinge Assembly, Bottom
7Filler, Foam
8Spacer, Door Edge Side
9Door Gasket, Magnetic
10Screw, 1/4 – 20 x .500
11Handle, Door (Stainless Steel)
12Gasket (2)
13Spacer-Hinge, Bottom
14Spacer, Door Edge Bottom
15WP488729 Whirlpool Refrigerator Door Screw
16Window, Door Shelf
17Spacer, Door Edge Top
18Tube, Door Shelf
19Shelf, Door (2)
20WP681249 Whirlpool Screw Assembly
21End Cap, Left
22End Cap, Right
23Tube, Door Shelf (Gallon)
25Window, Door Shelf (Gallon)
26Door, Utility Bin (2) (
27Door Shelf, Gallon
28Butter Tray
