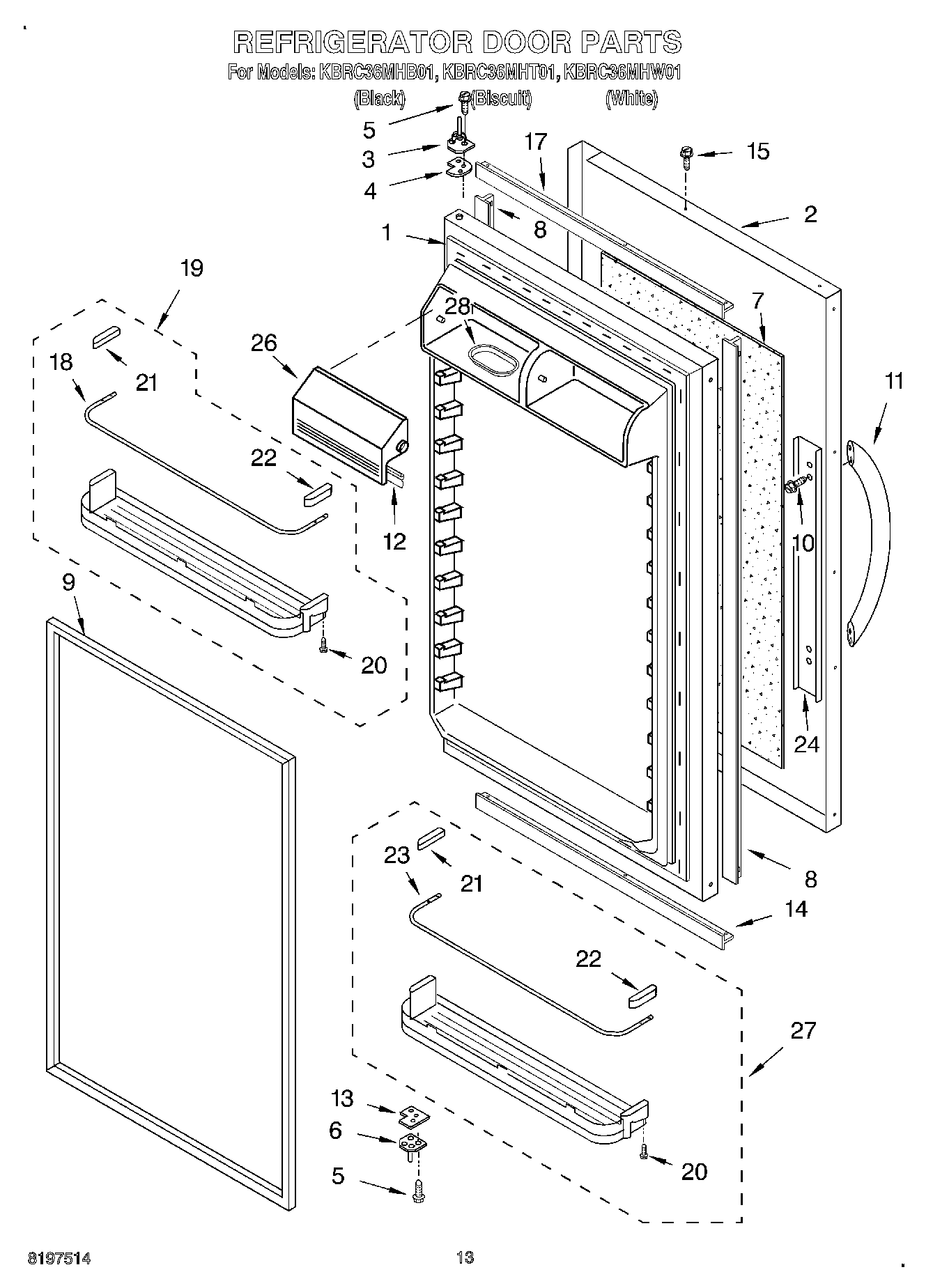

KBRC36MHT01 08 – REFRIGERATOR DOOR

Products

Position	Product
1	Refrigerator Door (Includes Item 9)
2	Skin, Door (White)
2	Skin, Door (Biscuit)
2	Skin, Door (Black)
3	Hinge Assembly, Top
4	Spacer-Hinge, Top
5	W11474472 Whirlpool Screw
6	Hinge Assembly, Bottom
7	Filler, Foam
8	Spacer, Door Edge Side
9	Door Gasket, Magnetic
10	WP308544 Whirlpool Screw
11	Handle, Door (Black)
11	Handle, Door (Biscuit)
11	Handle, Door (White)
12	Gasket (2)
13	Spacer-Hinge, Bottom
14	Spacer, Door Edge Bottom
15	WP488729 Whirlpool Refrigerator Door Screw
17	Spacer, Door Edge Top
18	Tube, Door Shelf
19	Shelf, Door (2)
20	WP681249 Whirlpool Screw Assembly
21	End Cap, Left
22	End Cap, Right
23	Tube, Door Shelf (Gallon)
24	Plate, Handle
26	Door, Utility Bin (2) (
27	Door Shelf, Gallon
28	Butter Tray
