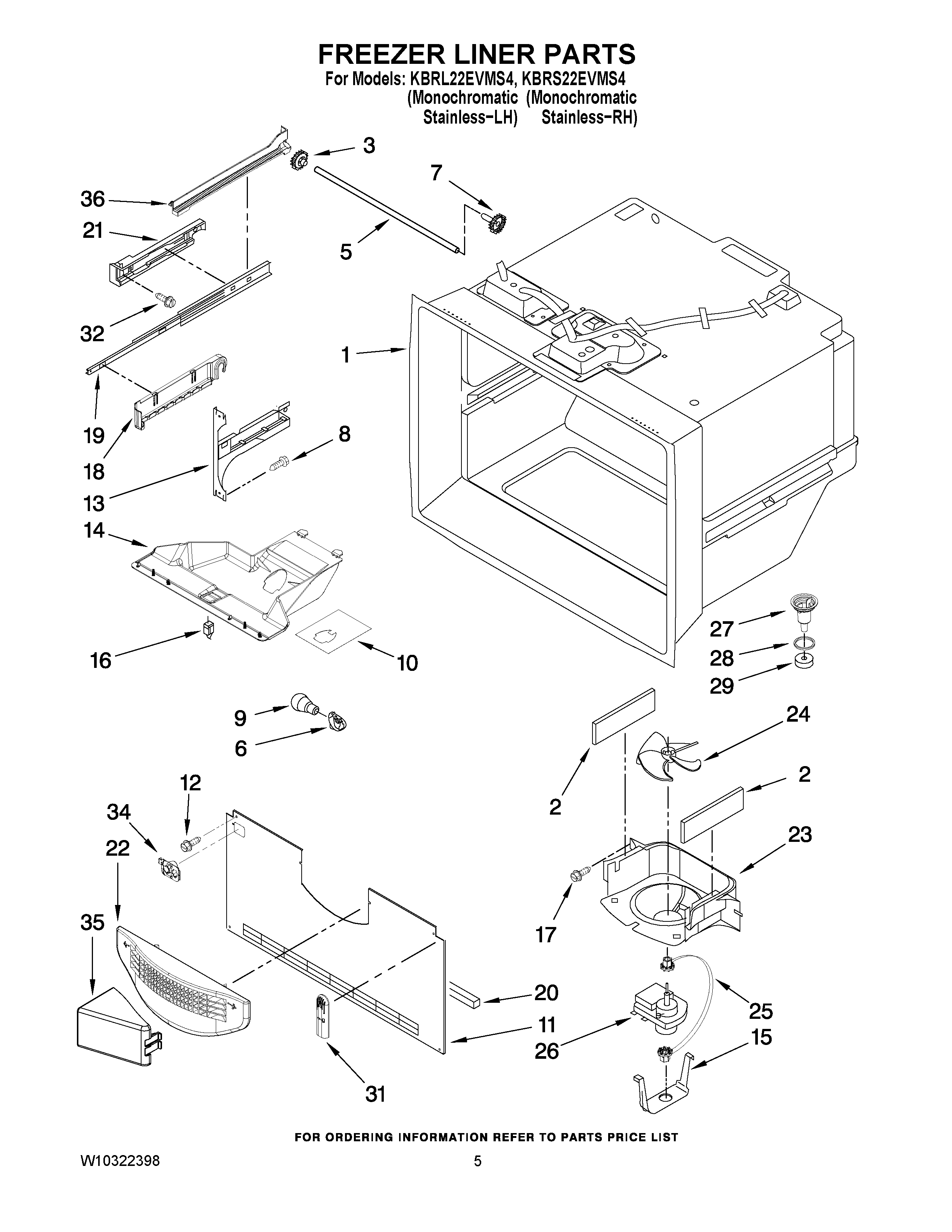

KBRL22EVMS4 03 – FREEZER LINER PARTS

KBRL22EVMS4 03 – FREEZER LINER PARTS

Written by

in

KBRL22EVMS4 03 – FREEZER LINER PARTS

Products

PositionProduct
1CABINET (NOT A SERVICEABLE PART)
2W10856123 Whirlpool Refrigerator Gasket
5W11715937 Whirlpool Shaft
6W11447232 Whirlpool Refrigerator Socket
712002497 Whirlpool Refrigerator Drawer Gear Kit
9W11679940 Whirlpool Refrigerator Light Bulb Assembly
10W11469652 Whirlpool Refrigerator Shield
11W10308415 Whirlpool Refrigerator Evaporator Cover
1267006425 Whirlpool Refrigerator Screw
13WPW10330991 Whirlpool Refrigerator Bracket
13WPW10330993 Whirlpool Refrigerator Bracket
14WPW10277025 Whirlpool Refrigerator Housing
15CLIP, EVAPORATOR MOTOR
16W11396033 Whirlpool Refrigerator Rocker Switch
17WP98165 Whirlpool Screw
18WPW10280613 Whirlpool Refrigerator Bracket
18WPW10280608 Whirlpool Refrigerator Bracket
19W11658402 Whirlpool Drawer Slide Rail
20W11451451 Whirlpool Refrigerator Gasket
21WPW10284684 Whirlpool Refrigerator Bracket
21WPW10284685 Whirlpool Refrigerator Bracket
22WPW10175909 Whirlpool Grille Assembly
23WPW10167023 Whirlpool Refrigerator Shroud
24WP2169142 Whirlpool Fan Blade
25W11690160 Whirlpool Grommet
26MOTOR-EVAP
27W10815413 Whirlpool Refrigerator Funnel
28WPM0500703 Whirlpool Refrigerator O-Ring Seal
29WPB8381501 Whirlpool Refrigerator Door Gasket
31WP67003924 Whirlpool Refrigerator Cover
32WP489474 Whirlpool Refrigerator Screw
34W11448709 Whirlpool Refrigerator Bracket
35W10157765 Whirlpool Refrigerator Deflector
36W11489993 Whirlpool Refrigerator Rail
36W11489994 Whirlpool Refrigerator Rail
