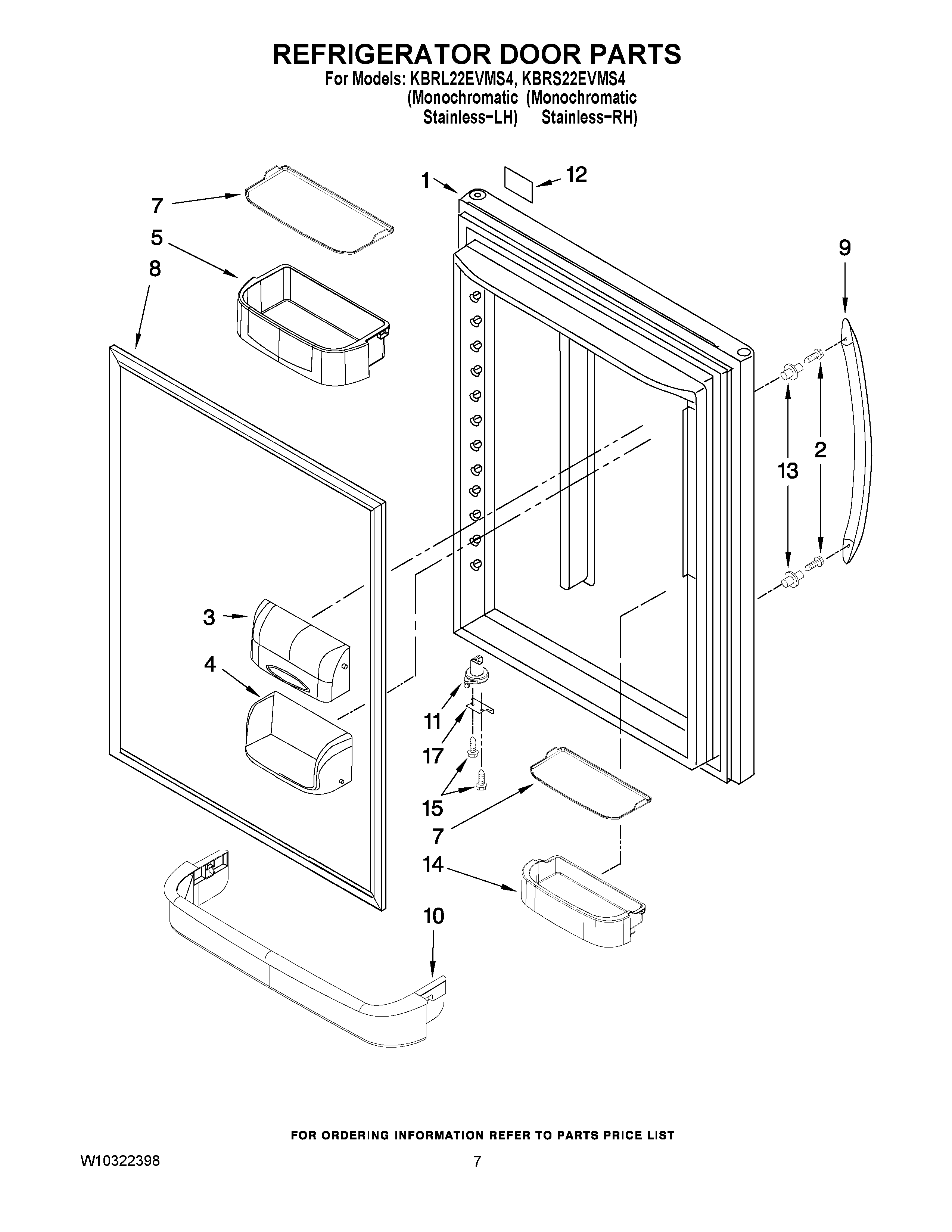

KBRL22EVMS4 04 – REFRIGERATOR DOOR PARTS

KBRL22EVMS4 04 – REFRIGERATOR DOOR PARTS

Written by

in

KBRL22EVMS4 04 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
113107544SQ Whirlpool Refrigerator Foam In Place Door Stainless Steel
113107546SQ Whirlpool Refrigerator FIP Stainless Steel Door
2SCREW
3WP67003637 Whirlpool Dairy Door
4WP67001279 Whirlpool Refrigerator Dairy Tray
5WPW10371195 Whirlpool Refrigerator Cantilever Bin
7WPW10450021 Whirlpool Refrigerator Mat
8W10443314 Whirlpool Refrigerator FIP Gasket
9WPW10314517K Whirlpool Refrigerator Handle
10Retainer, Door
11WP12028505AP Whirlpool Closing Cam
12NAMEPLATE
13WP67006113 Whirlpool Stud Bolt
14Bucket, Short
15WP98165 Whirlpool Screw
17W11401472 Whirlpool Refrigerator Door Stop
