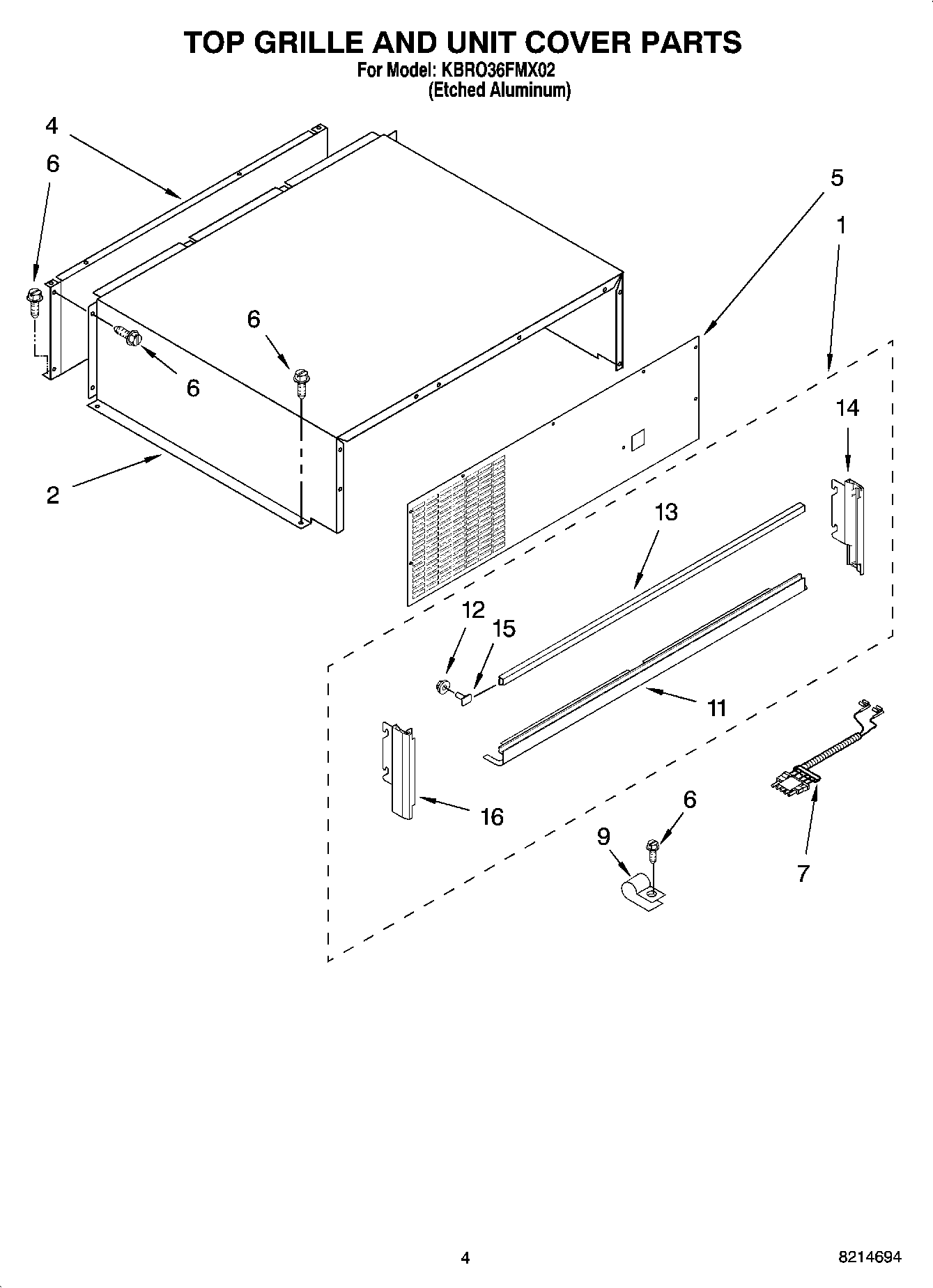

KBRO36FMX02 03 – TOP GRILLE AND UNIT COVER PARTS

Products

PositionProduct
1Top Grille Assembly (Etched Aluminum)
2Cover, Unit
42256466 Whirlpool Refrigerator Unit Cover
5Front, Unit Cover
6WP965173 Whirlpool Dishwasher Screw
7Wire Assembly
9489348 Whirlpool Refrigerator Tube Clamp
11Grille-Trim, Bottom
12WP488130 Whirlpool Air Conditioner Nut
13Trim-Grille, Top (Etched Aluminum)
14Trim-Grille, Right Side (Etched Aluminum)
152003347 Whirlpool Screw
16Trim-Grille, Left Side (Etched Aluminum)
