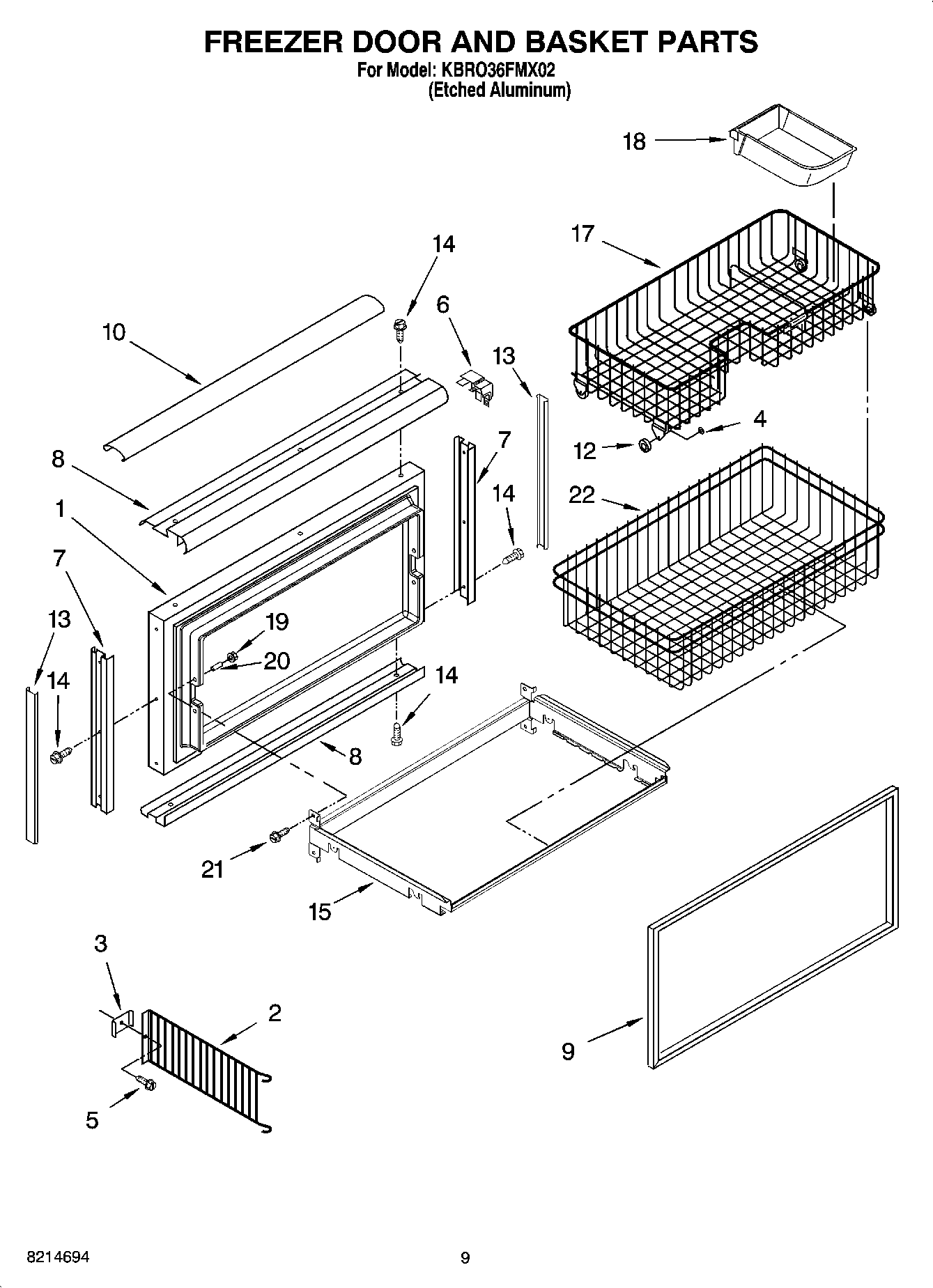

KBRO36FMX02 06 – FREEZER DOOR AND BASKET PARTS

KBRO36FMX02 06 – FREEZER DOOR AND BASKET PARTS

Written by

in

KBRO36FMX02 06 – FREEZER DOOR AND BASKET PARTS

Products

PositionProduct
1Freezer Door Panel (Includes Item 9)
2Divider, Basket
3Clamp, Divider
42207415 Whirlpool Refrigerator Nut
5Screw
62258903 Whirlpool Refrigerator Door Trim
7Trim-Door, Side
8Trim-Door, Top & Bottom
92302710 Whirlpool Refrigerator Door Gasket
10Cover-Screw, Top & Bottom
12W11214482 Whirlpool Refrigerator Roller
13Cover-Screw, Side
14WP8281250 Whirlpool Refrigerator Screw
15Bracket Assembly, Freezer Basket
17Basket, Upper
18Pan, Ice Cube
19WP2207454 Whirlpool Refrigerator Nut
20Bushing
21Screw
22Basket, Freezer Lower
