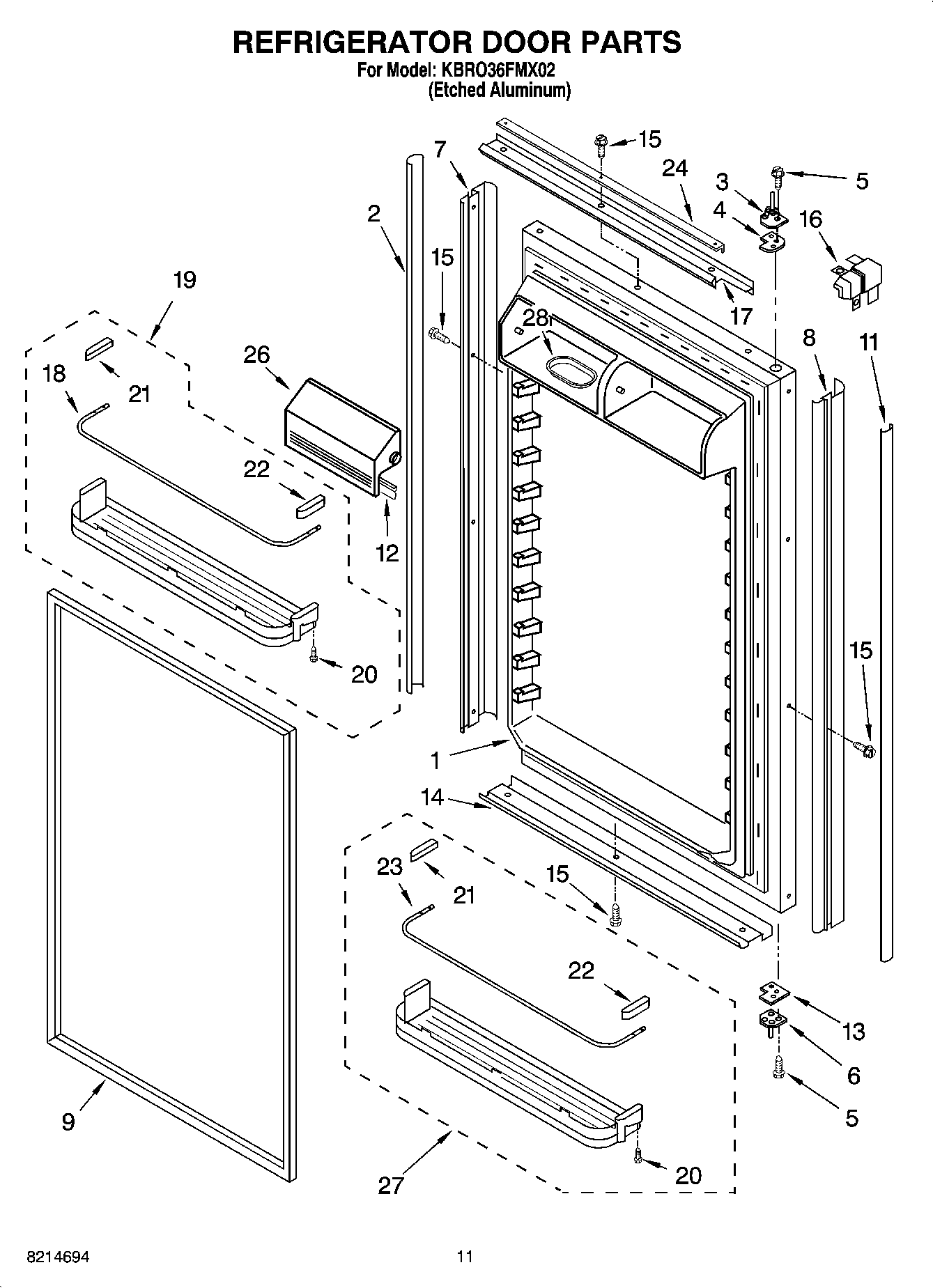

KBRO36FMX02 07 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1	Refrigerator Door (Includes Item 9)
2	Cover-Screw, Handle Side
3	Hinge Assembly, Top
4	Spacer-Hinge, Top
5	W11474472 Whirlpool Screw
6	Hinge Assembly, Bottom
7	Trim-Door, Handle Side
8	Trim-Door, Hinge Side
9	2302709 Whirlpool Refrigerator Door Gasket
11	Cover-Screw, Hinge Side
12	Gasket (2)
13	SPACER, HINGE (BOTTOM)
14	Trim-Door, Bottom
15	WP8281250 Whirlpool Refrigerator Screw
16	2258903 Whirlpool Refrigerator Door Trim
17	Trim-Door, Top
18	Tube, Door Shelf
19	Shelf, Door (2)
20	WP681249 Whirlpool Screw Assembly
21	End Cap, Left
22	End Cap, Right
23	Tube, Door Shelf (Gallon)
24	Cover-Screw, Top
26	Door, Utility Bin (2) (Includes Item 12)
27	Door Shelf, Gallon
28	Butter Tray
