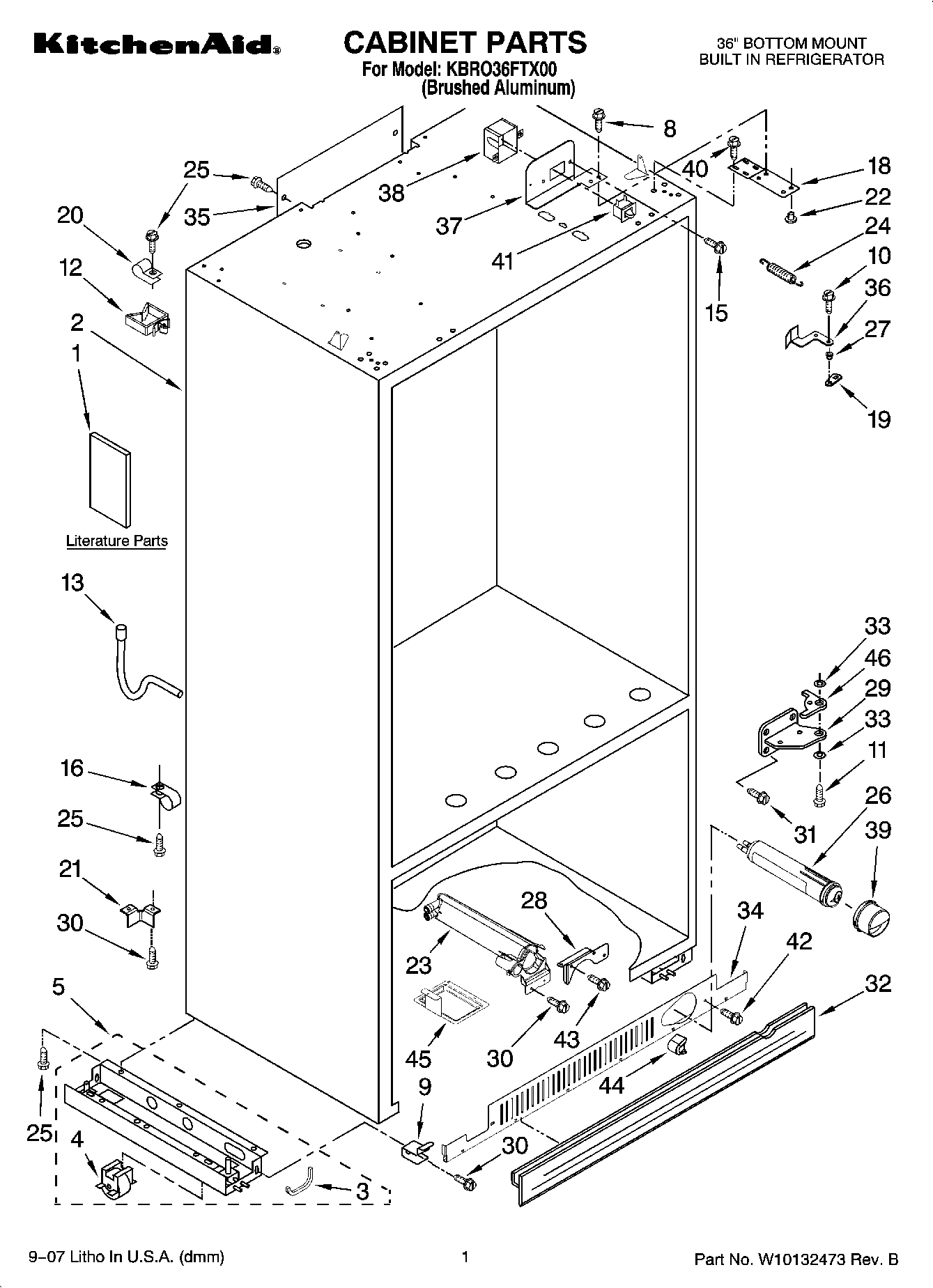

KBRO36FTX00 01 – CABINET PARTS

KBRO36FTX00 01 – CABINET PARTS

Written by

in

KBRO36FTX00 01 – CABINET PARTS

Products

Position	Product
1	Use & Care Guide
1	Installation Instructions
1	Service & Wiring Sheet
1	Modular Icemaker Service Sheet
1	Energy Guide
1	Main Control Service Sheet
2	Cabinet, (Not A Serviceable Part)
3	2307584 Whirlpool Refrigerator Grommet
4	WPW10138054 Whirlpool Refrigerator Cabinet Roller
5	W10860229 Whirlpool Refrigerator Support
5	W10860448 Whirlpool Refrigerator Support
8	WP8281164 Whirlpool Refrigerator Screw
9	W10839844 Whirlpool Refrigerator Bracket
11	Screw
12	CLIP, TUBE
13	2314064 Whirlpool Refrigerator Drain Tube
15	WP965173 Whirlpool Dishwasher Screw
16	Clamp, Tube
18	2252292 Whirlpool Refrigerator Door Hinge
19	Cam-Closer, Door
20	W10833902 Whirlpool Refrigerator Clamp
21	2006617 Whirlpool Refrigerator Bracket
22	Bushing
23	WPW10121140 Whirlpool Refrigerator Housing
24	WP2004517 Whirlpool Refrigerator Spring
25	W11624204 Whirlpool Screw
26	FILTER 3-SINGLE TEAL
27	WP2316859 Whirlpool Refrigerator Bushing
28	W10674648 Whirlpool Refrigerator Bracket
29	2252299 Whirlpool Refrigerator Bottom Hinge
30	WP489464 Whirlpool Refrigerator Screw
31	W11474472 Whirlpool Screw
32	WP2209024B Whirlpool Refrigerator Front Grille
33	WP2006346 Whirlpool Refrigerator Washer
34	WP2325187B Whirlpool Refrigerator Front Grille
35	2215612 Whirlpool Refrigerator Duct Cover
36	W11418227 Whirlpool Refrigerator Extension
37	2221097 Whirlpool Refrigerator Bracket
38	2215938 Whirlpool Refrigerator Switch Cover
39	WP2260518B Whirlpool Water Filter Cap
40	W11189635 Whirlpool Refrigerator Screw
41	W11384469 Whirlpool Door Switch
43	WP8281163 Whirlpool Refrigerator Screw
44	WP2260503B Whirlpool Refrigerator Button
45	2318189 Whirlpool Refrigerator Drip Pan
46	W10188434 Whirlpool Refrigerator Hinge Gap
