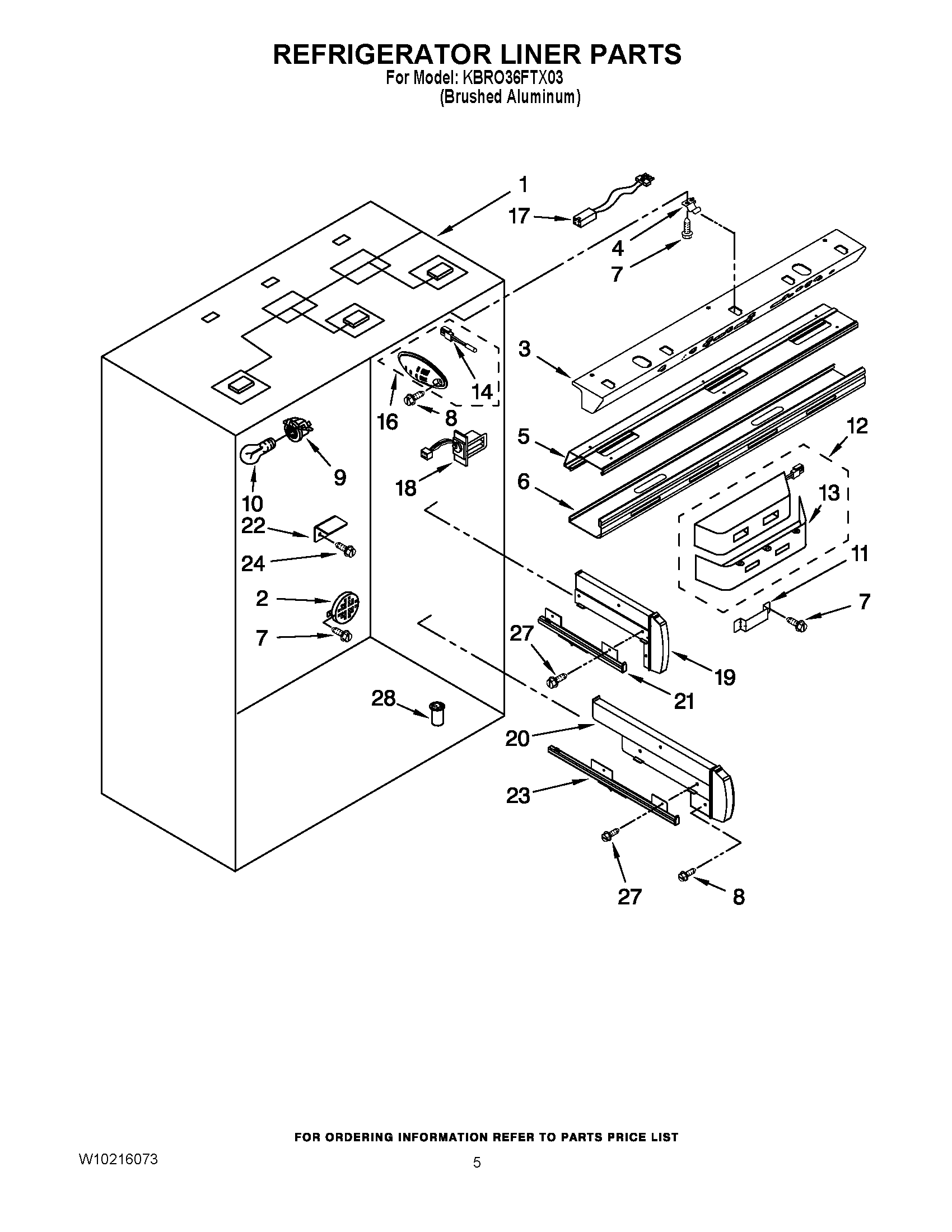

KBRO36FTX03 04 – REFRIGERATOR LINER PARTS

KBRO36FTX03 04 – REFRIGERATOR LINER PARTS

Written by

in

KBRO36FTX03 04 – REFRIGERATOR LINER PARTS

Products

PositionProduct
1CABINET (NOT A SERVICEABLE PART)
22317004 Whirlpool Refrigerator Air Cover
3W10468945 Whirlpool Refrigerator Control Box
4Clip, Control Box
5Bracket, Control Box
6Shield, Light
7WP488729 Whirlpool Refrigerator Door Screw
8WP488163 Whirlpool Refrigerator Screw
9WPW10191429 Whirlpool Refrigerator Socket
10WPA3073101 Whirlpool Light Bulb
11Clip, Diffuser Cover
12Diffuser Assembly
132320519 Whirlpool Refrigerator Cover
14WP2188820 Whirlpool Refrigerator Thermistor
16WP2317844 Whirlpool Refrigerator Cover
172310164 Whirlpool Refrigerator Wire Harness
18WP2221296 Whirlpool Air Baffle
19Spacer, Crisper (Left)
19Spacer, Crisper (Right)
20Spacer, Deli (Right)
20Spacer, Deli (Left)
212302952 Whirlpool Refrigerator Slide
212302953 Whirlpool Refrigerator Slide
22Support, Crisper Cover
232302956 Whirlpool Refrigerator Slide
232302957 Whirlpool Refrigerator Slide
24WP8533928 Whirlpool Refrigerator Screw
27WPW10001160 Whirlpool Refrigerator Screw
28WP2210509 Whirlpool Refrigerator Tub Valve
