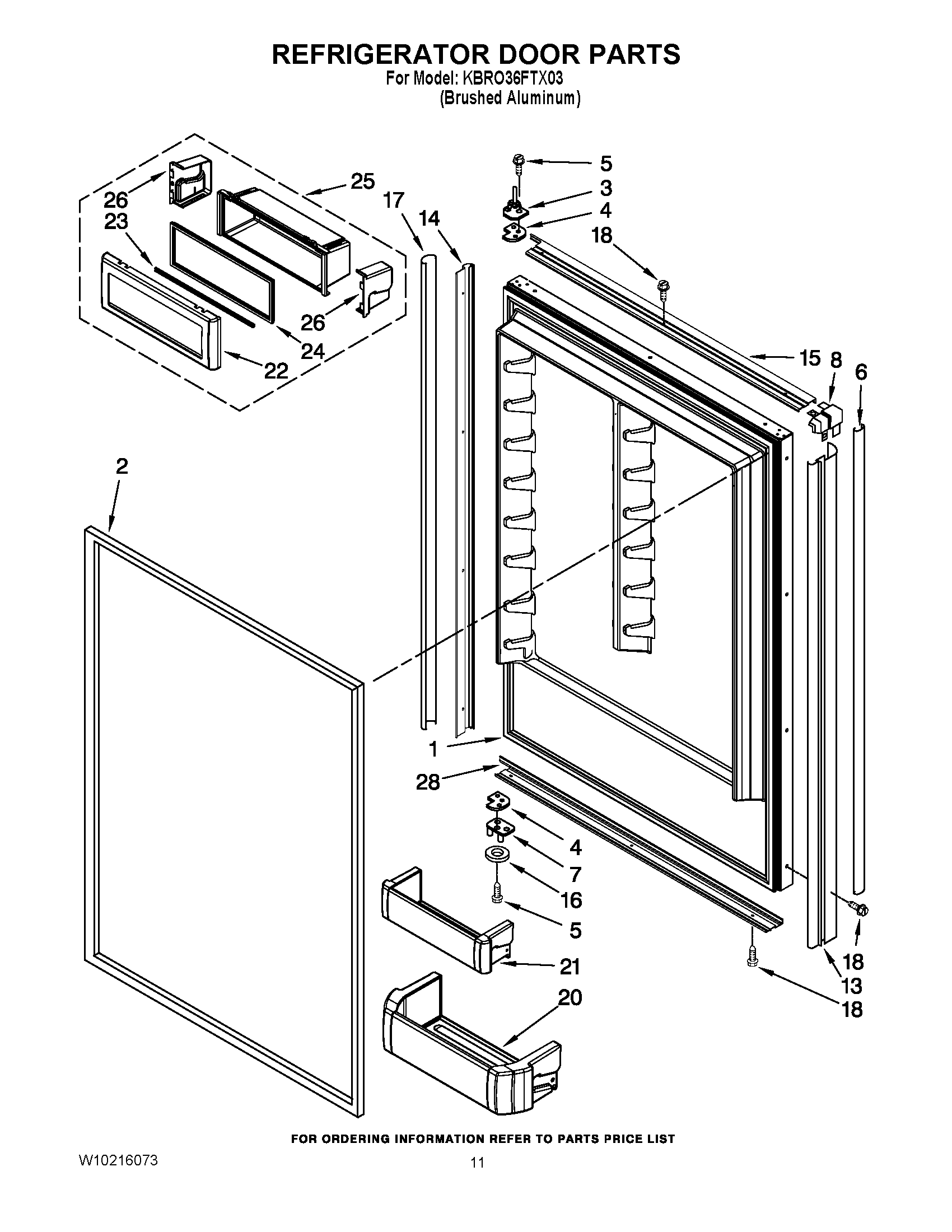

KBRO36FTX03 07 – REFRIGERATOR DOOR PARTS

KBRO36FTX03 07 – REFRIGERATOR DOOR PARTS

Written by

in

KBRO36FTX03 07 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1Door, Refrigerator (Includes Item 2)
22302709 Whirlpool Refrigerator Door Gasket
32256384 Whirlpool Refrigerator Door Hinge
4W11673500 Whirlpool Door Hinge
5W11474472 Whirlpool Screw
62209084S Whirlpool Refrigerator Trim Cover
7Bottom Hinge Assembly
82207457 Whirlpool Refrigerator Door Trim
132309475 Whirlpool Refrigerator Door Trim
14TRIM, DOOR (HINGE SIDE)
152309473 Whirlpool Door Trim
16WP2006346 Whirlpool Refrigerator Washer
17Cover, Trim (Handle Side)
18WP8281250 Whirlpool Refrigerator Screw
20W10323749 Whirlpool Refrigerator Cantilever Bin
21W11590561 Whirlpool Refrigerator Cantilever Bin
22Door, Utility Bin
23Rail, Lid
24Gasket, Utility Bin
25W10323044 Whirlpool Refrigerator Cantilever Bin
26WPW10323172 Whirlpool Refrigerator Retainer End Cap
26WPW10323173 Whirlpool Refrigerator Retainer End Cap
282309474 Whirlpool Door Trim
