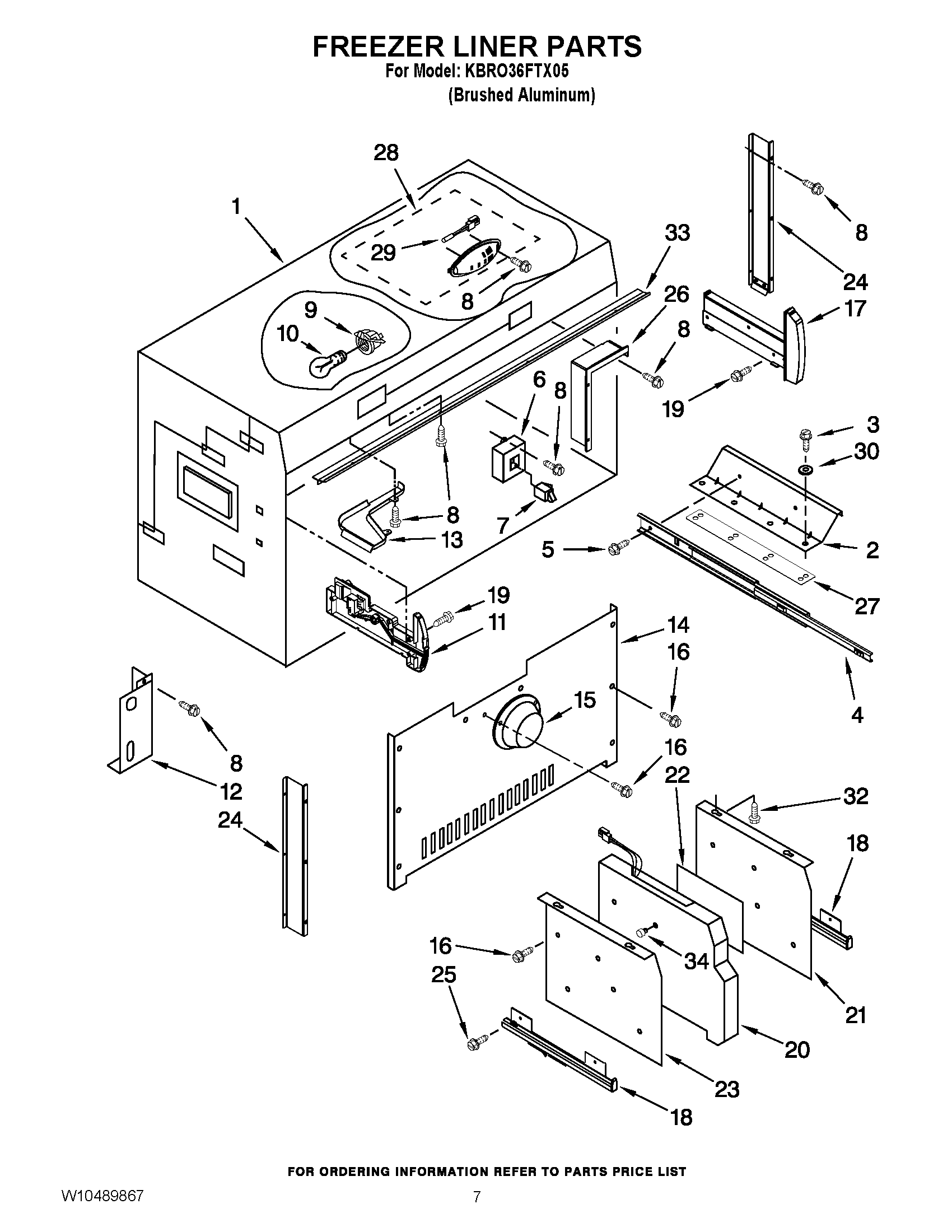

KBRO36FTX05 05 – FREEZER LINER PARTS

Products

PositionProduct
1CABINET (NOT A SERVICEABLE PART)
2W10744329 Whirlpool Refrigerator Support
3WP8204624 Whirlpool Bolt
4W11650036 Whirlpool Slide
5Screw
6W10234211 Whirlpool Refrigerator Cover
7W11384469 Whirlpool Door Switch
8W11624204 Whirlpool Screw
9WPW10191429 Whirlpool Refrigerator Socket
10WPA3073101 Whirlpool Light Bulb
11SPACER ASSEMBLY, ICEMAKER (INCLUDES EMITTER)
12Cover, Wiring (Icemaker)
13Duct, Air Flow (Icemaker)
14Cover, Evaporator
152317829 Whirlpool Refrigerator Cover
16WP488729 Whirlpool Refrigerator Door Screw
172306106 Whirlpool Refrigerator Track
182306117 Whirlpool Refrigerator Slide
182306116 Whirlpool Refrigerator Slide
19WP488163 Whirlpool Refrigerator Screw
20DIVIDER, FREEZER BINS (INCLUDES ITEM 34)
21W10716209 Whirlpool Refrigerator Support
22SHIELD
23SUPPORT, SLIDE LEFT
24Bracket, Evaporator Cover (Left Side)
24Bracket, Evaporator Cover (Right Side)
25WPW10001160 Whirlpool Refrigerator Screw
26Bracket, Air Return
27SLIDE BRACKET SHIM
28WP2317844 Whirlpool Refrigerator Cover
29WP2188820 Whirlpool Refrigerator Thermistor
30W10075920 Whirlpool Refrigerator Washer
32WP8533928 Whirlpool Refrigerator Screw
33Air Deflector Asy
34WP2198643 Whirlpool Refrigerator Lens
