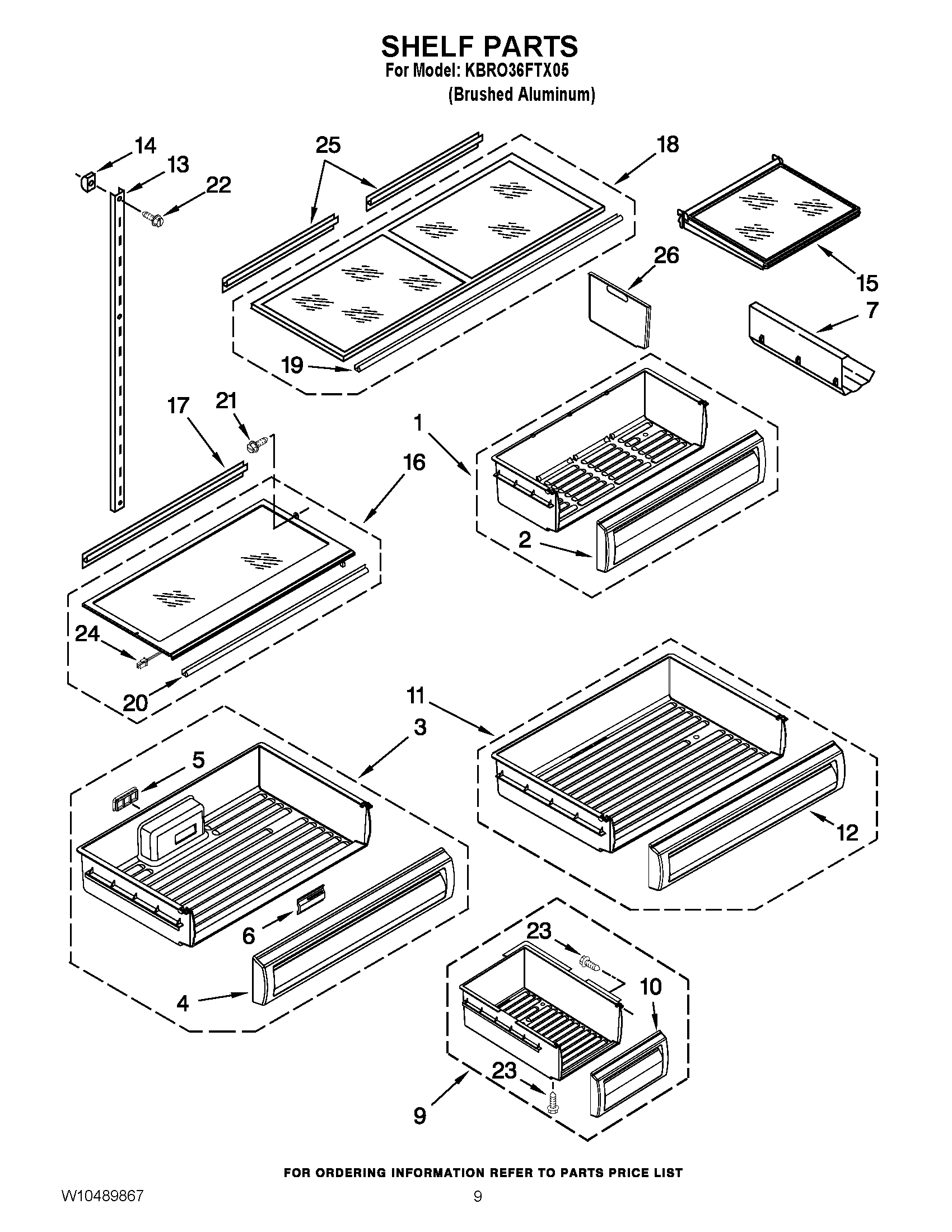

KBRO36FTX05 06 – SHELF PARTS

KBRO36FTX05 06 – SHELF PARTS

Written by

in

KBRO36FTX05 06 – SHELF PARTS

Products

PositionProduct
1WP2256375 Whirlpool Refrigerator Crisper Pan
22256374 Whirlpool Front Pan
3DELI PAN ASSEMBLY (INCLUDES ITEM 6)
42257548 Whirlpool Refrigerator Front Pan
52307810 Whirlpool Refrigerator Air Duct
62317939 Whirlpool Refrigerator Deflector
7W10777924 Whirlpool Refrigerator Wine Rack
9Ice Pan Assembly (Includes 10)
102306175 Whirlpool Refrigerator Front Pan
112327512 Whirlpool Freezer Pan
122268383 Whirlpool Front Panel
13Ladder, Shelf (4)
14520965 Whirlpool Refrigerator Support
15Shelf (4)
16Cover, Deli Bin
17Gasket, Rear
18WPW10183749 Whirlpool Glass Shelf
20Gasket, Front (Deli Cover)
21Screw 8-15 x 1/2 (White)
222006475 Whirlpool Refrigerator Screw
23WP488787 Whirlpool Refrigerator Screw
24Light Assy, (Deli)
252309398 Whirlpool Pan Gasket
26Divider, Crisper Pan
