KBRO36FTX05 07 – REFRIGERATOR DOOR PARTS

KBRO36FTX05 07 – REFRIGERATOR DOOR PARTS

Written by

in

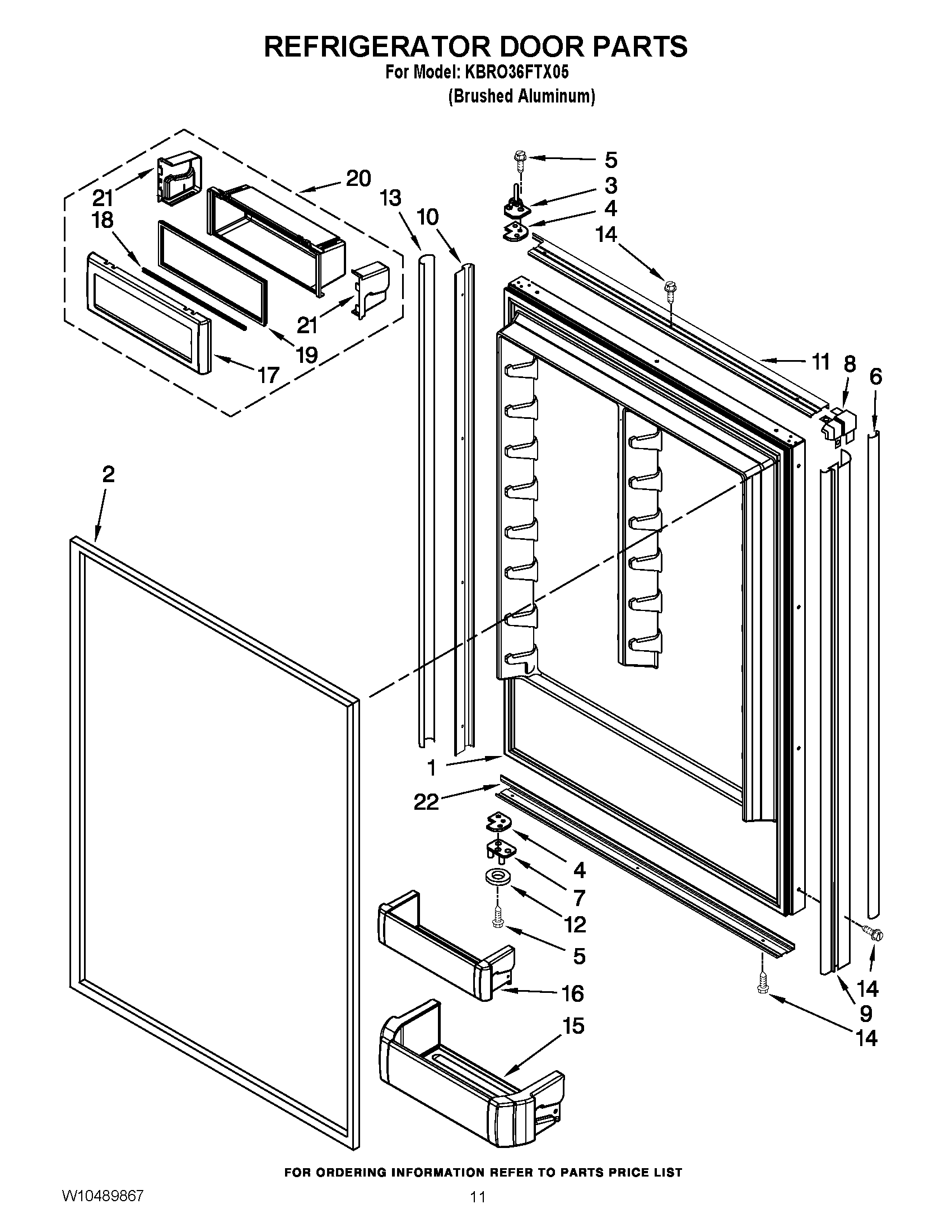

KBRO36FTX05 07 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1Door, Refrigerator (Includes Item 2)
22302709 Whirlpool Refrigerator Door Gasket
32256384 Whirlpool Refrigerator Door Hinge
4W11673500 Whirlpool Door Hinge
5W11474472 Whirlpool Screw
62209084S Whirlpool Refrigerator Trim Cover
7Bottom Hinge Assembly
82207457 Whirlpool Refrigerator Door Trim
92309475 Whirlpool Refrigerator Door Trim
10TRIM, DOOR (HINGE SIDE)
112309473 Whirlpool Door Trim
12WP2006346 Whirlpool Refrigerator Washer
13Cover, Trim (Handle Side)
14WP8281250 Whirlpool Refrigerator Screw
15W10323749 Whirlpool Refrigerator Cantilever Bin
16W11590561 Whirlpool Refrigerator Cantilever Bin
17Door, Utility Bin
18Rail, Lid
19Gasket, Utility Bin
20W10323044 Whirlpool Refrigerator Cantilever Bin
21WPW10323172 Whirlpool Refrigerator Retainer End Cap
21WPW10323173 Whirlpool Refrigerator Retainer End Cap
222309474 Whirlpool Door Trim
