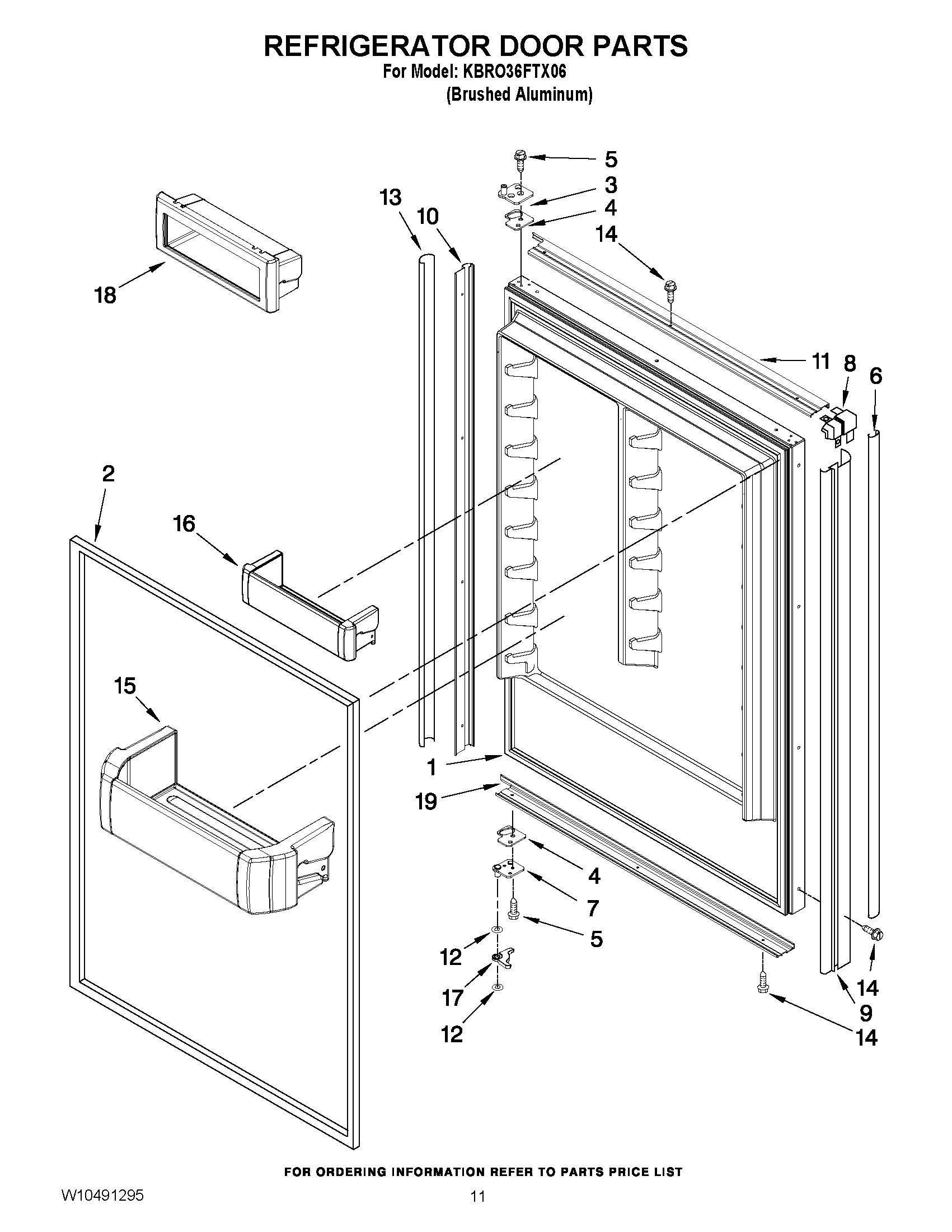

KBRO36FTX06 07 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1	Door, Refrigerator (Includes Item 2)
2	2302709 Whirlpool Refrigerator Door Gasket
3	2256384 Whirlpool Refrigerator Door Hinge
4	W11673500 Whirlpool Door Hinge
5	W11474472 Whirlpool Screw
6	2209084S Whirlpool Refrigerator Trim Cover
7	Bottom Hinge Assembly
8	2207457 Whirlpool Refrigerator Door Trim
9	2309475 Whirlpool Refrigerator Door Trim
10	TRIM, DOOR (HINGE SIDE)
11	2309473 Whirlpool Door Trim
12	WP2006346 Whirlpool Refrigerator Washer
13	Cover, Trim (Handle Side)
14	WP8281250 Whirlpool Refrigerator Screw
15	W10323749 Whirlpool Refrigerator Cantilever Bin
16	W11590561 Whirlpool Refrigerator Cantilever Bin
17	W10188434 Whirlpool Refrigerator Hinge Gap
18	W10323044 Whirlpool Refrigerator Cantilever Bin
19	2309474 Whirlpool Door Trim
