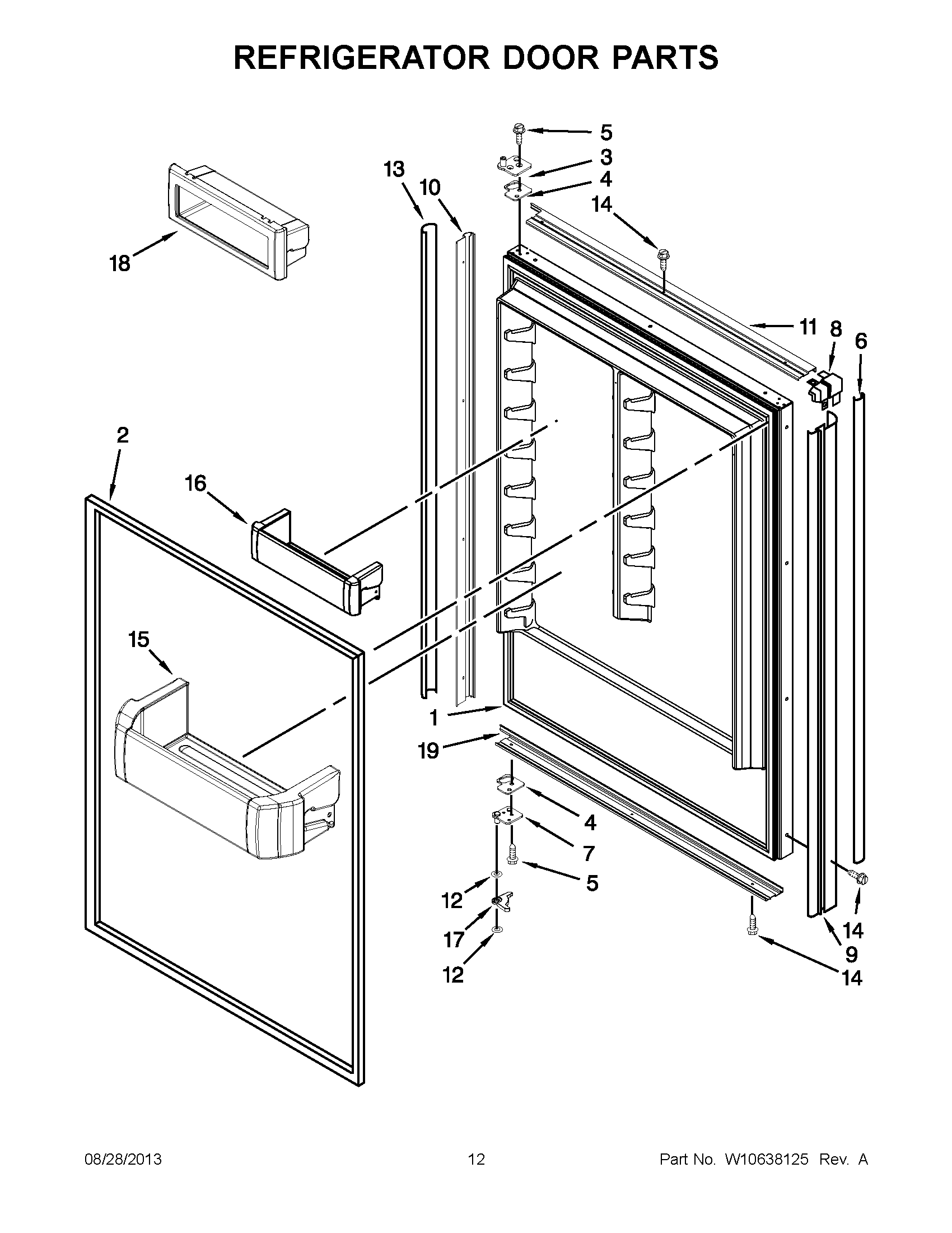

KBRO36FTX08 07 – REFRIGERATOR DOOR PARTS

KBRO36FTX08 07 – REFRIGERATOR DOOR PARTS

Written by

in

KBRO36FTX08 07 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1Door, Refrigerator (Includes Item 2)
22302709 Whirlpool Refrigerator Door Gasket
3W10484480 Whirlpool Refrigerator Door Hinge
4W11673500 Whirlpool Door Hinge
5W11474472 Whirlpool Screw
62209084S Whirlpool Refrigerator Trim Cover
7Bottom Hinge Assembly
82207457 Whirlpool Refrigerator Door Trim
92309475 Whirlpool Refrigerator Door Trim
10TRIM, DOOR (HINGE SIDE)
112309473 Whirlpool Door Trim
12WP2006346 Whirlpool Refrigerator Washer
13Cover, Trim (Handle Side)
14WP8281250 Whirlpool Refrigerator Screw
15W10323749 Whirlpool Refrigerator Cantilever Bin
16W11590561 Whirlpool Refrigerator Cantilever Bin
17W10188434 Whirlpool Refrigerator Hinge Gap
18W10323044 Whirlpool Refrigerator Cantilever Bin
192309474 Whirlpool Door Trim
