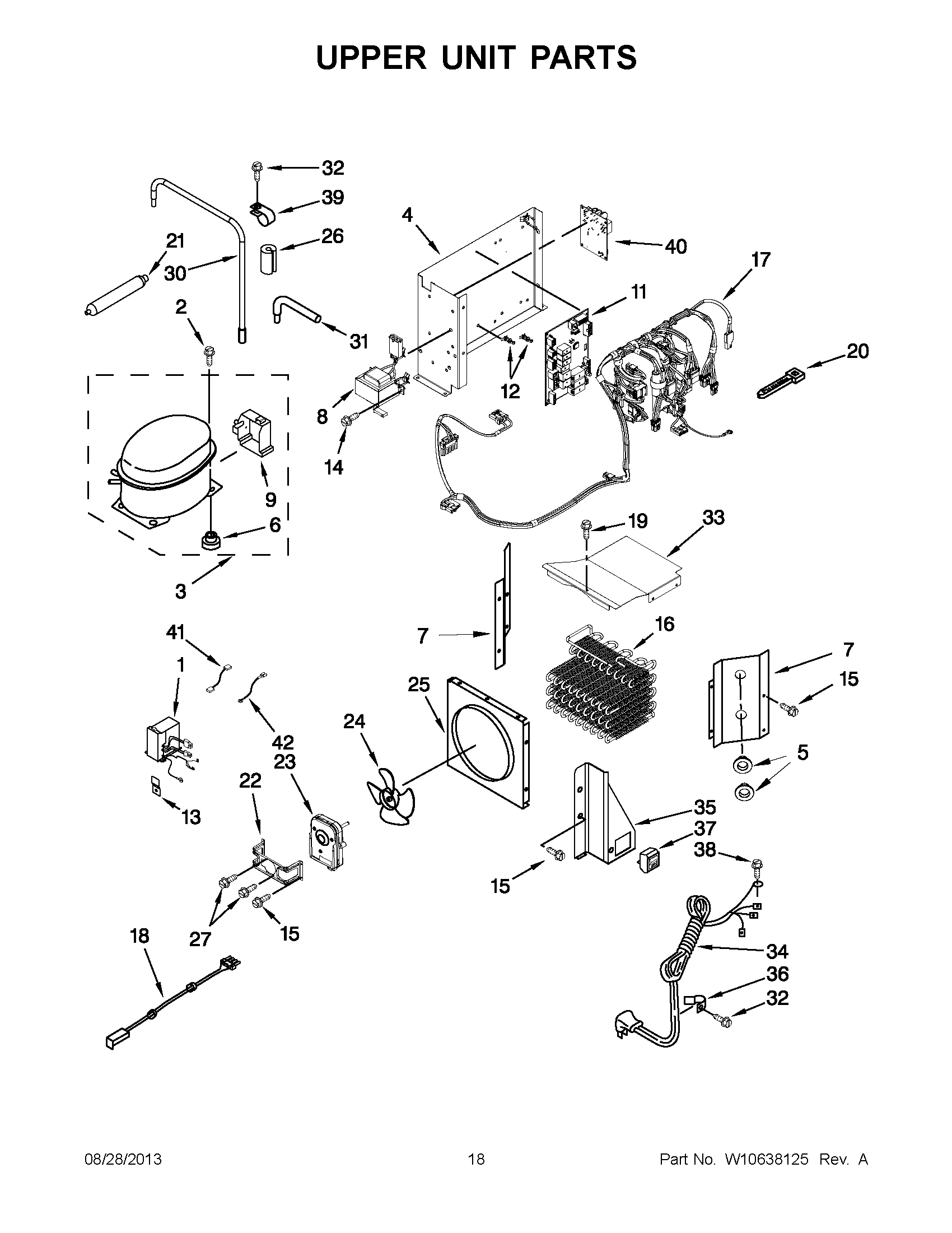

KBRO36FTX08 10 – UPPER UNIT PARTS

Products

PositionProduct
NI876764 Whirlpool Refrigerator Primary Valve
NI978026 Whirlpool Refrigerator Primary Valve
NI978027 Whirlpool Refrigerator Primary Valve
NI978030 Whirlpool Refrigerator Valve
NIWP978025 Whirlpool Refrigerator Valve
NIVALVE, ACCESS (1/2“)
NICABINET (NOT A SERVICEABLE PART)
NIVALVE, ACCESS (5/8“)
1WPW10449006 Whirlpool Refrigerator Inverter Box
38201675 Whirlpool Refrigerator Compressor
4WPW10321056 Whirlpool Refrigerator Housing
5GROMMET
6876811 Whirlpool Grommet
7WPW10525177 Whirlpool Plate
7WPW10525179 Whirlpool Plate
8Transformer
92215676 Whirlpool Refrigerator Terminal Cover
11WPW10427079-includeCORE Whirlpool WPW10427079 Refrigerator Electronic Control Board + Core
12WP2203075 Whirlpool Refrigerator Spacer
132256328 Whirlpool Bracket Assembly
14WP965173 Whirlpool Dishwasher Screw
15WP489069 Whirlpool Compactor Screw
16W10591457 Whirlpool Refrigerator Condenser
17W10427099 Whirlpool Wire Harness
182310207 Whirlpool Wire Harness
19WP489399 Whirlpool Refrigerator Screw
20WPW10339879 Whirlpool Wire Tie
21WPW10143759 Whirlpool Dryer Filter
22W10414681 Whirlpool Bracket
23W11578915 Whirlpool Condenser Motor
24WPW10139483 Whirlpool Refrigerator Condenser Fan Blade, 40%
25W10415670 Whirlpool Orifice
26W10852725 Whirlpool Refrigerator Grommet
27WP8533993 Whirlpool Refrigerator Screw
30W10624944 Whirlpool Refrigerator Tube
31W10528578 Whirlpool Refrigerator Tube
32W11624204 Whirlpool Screw
33W10525175 Whirlpool Refrigerator Cover
34WP2310251 Whirlpool Refrigerator Power Cord
35W10321055 Whirlpool Refrigerator Bracket
36549193 Whirlpool Refrigerator Power Clamp
37WP2266802 Whirlpool Refrigerator Switch
38WP489128 Whirlpool Refrigerator Screw
39CLAMP, TUBE
40WPW10356040-includeCORE Whirlpool WPW10356040 Refrigerator Electronic Control Board + Core
41WPW10483905 Whirlpool Jumper Wire
42WPW10495645 Whirlpool Wire Jumper
