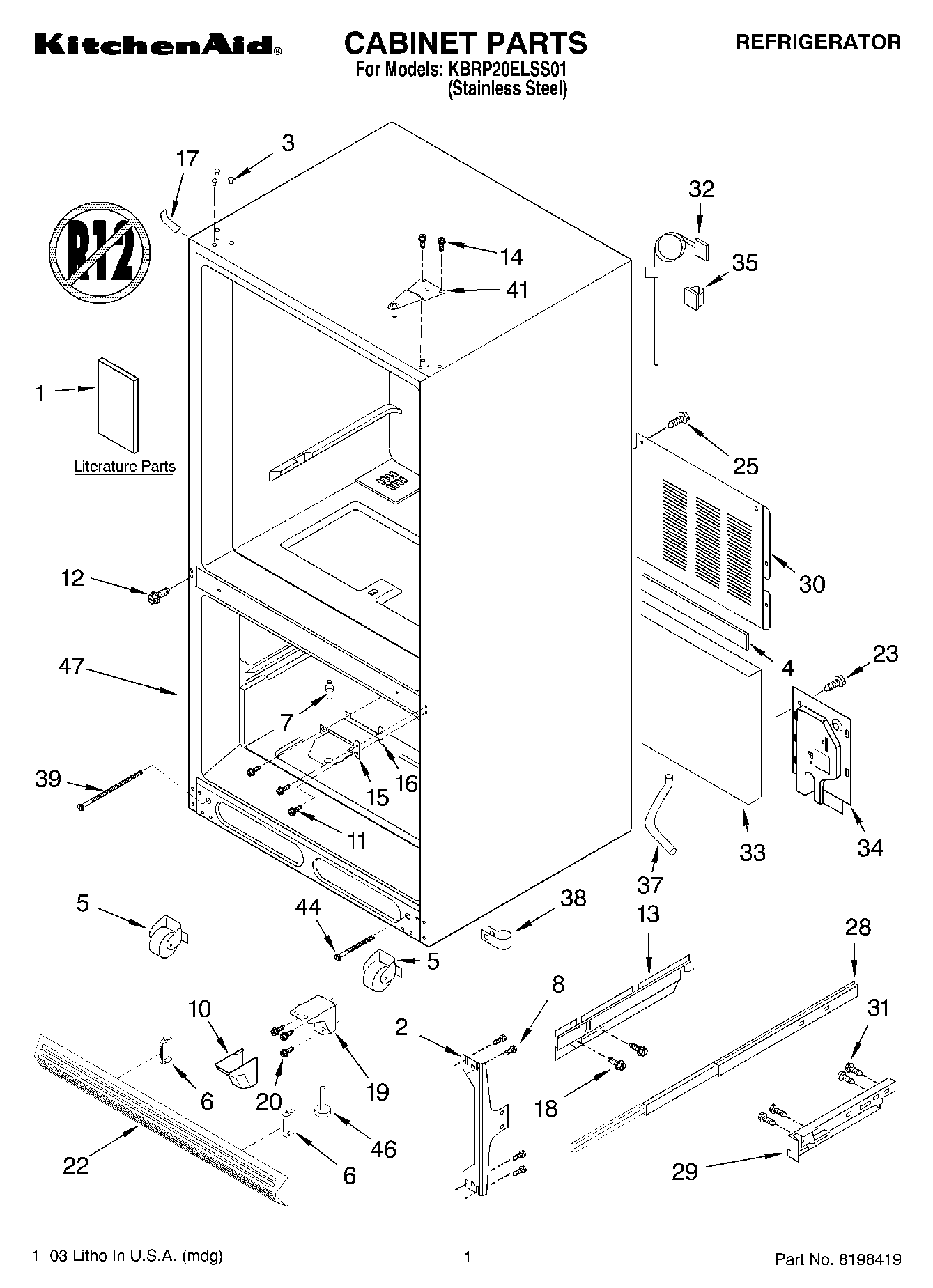

KBRP20ELSS01 01 – CABINET PARTS

Products

Position	Product
1	Literature Parts (Tech Sheet)
1	Literature Parts (Guide, Energy)
1	Literature Parts (Use & Care Guide)
2	Bracket, Door (2)
3	WP2189009 Whirlpool Refrigerator Handle Plug
4	GASKET
5	Roller Assembly
6	Clip, Grille
7	12002311 Whirlpool Refrigerator Center Hinge Pin Kit
8	WP98165 Whirlpool Screw
10	Hinge Cover, Bottom (Black)
11	WP67006380 Whirlpool Screw
13	Bracket, Slide (2) (Left)
13	Bracket, Slide (2) (Right)
14	WP489349 Whirlpool Refrigerator Screw
15	Hinge, Center
16	WPM0274062 Whirlpool Refrigerator Shim
17	67003485 Whirlpool Refrigerator Corner Cover (Black)
18	WPL 4343861
19	Hinge Bottom (Black)
20	WP67006715 Whirlpool Refrigerator Screw
22	WP67002224 Whirlpool Refrigerator Grille Assembly
23	681390 Whirlpool Refrigerator Screw
25	WPL 4344167
28	Slide, Drawer (2)
29	Track, Door (Right)
29	Track, Door (Left)
30	Cover, Unit
31	WP489474 Whirlpool Refrigerator Screw
32	WP67006506 Whirlpool Refrigerator Power Cord
33	67003796 Whirlpool Refrigerator Fiber Acoustic
34	Cover, Water Valve
35	Clip, Cord
37	Tube, Drain
38	67001067 Whirlpool Refrigerator Drain Tube Clip
39	Bolt, Adjusting (Rear)
41	12626910ED Whirlpool Refrigerator Door Hinge
41	Hinge, Top (Left)
44	71003131 Whirlpool Oven Screw
46	W11177593 Whirlpool Leveling Feet
47	Cabinet (Not A Serviceable Part)
