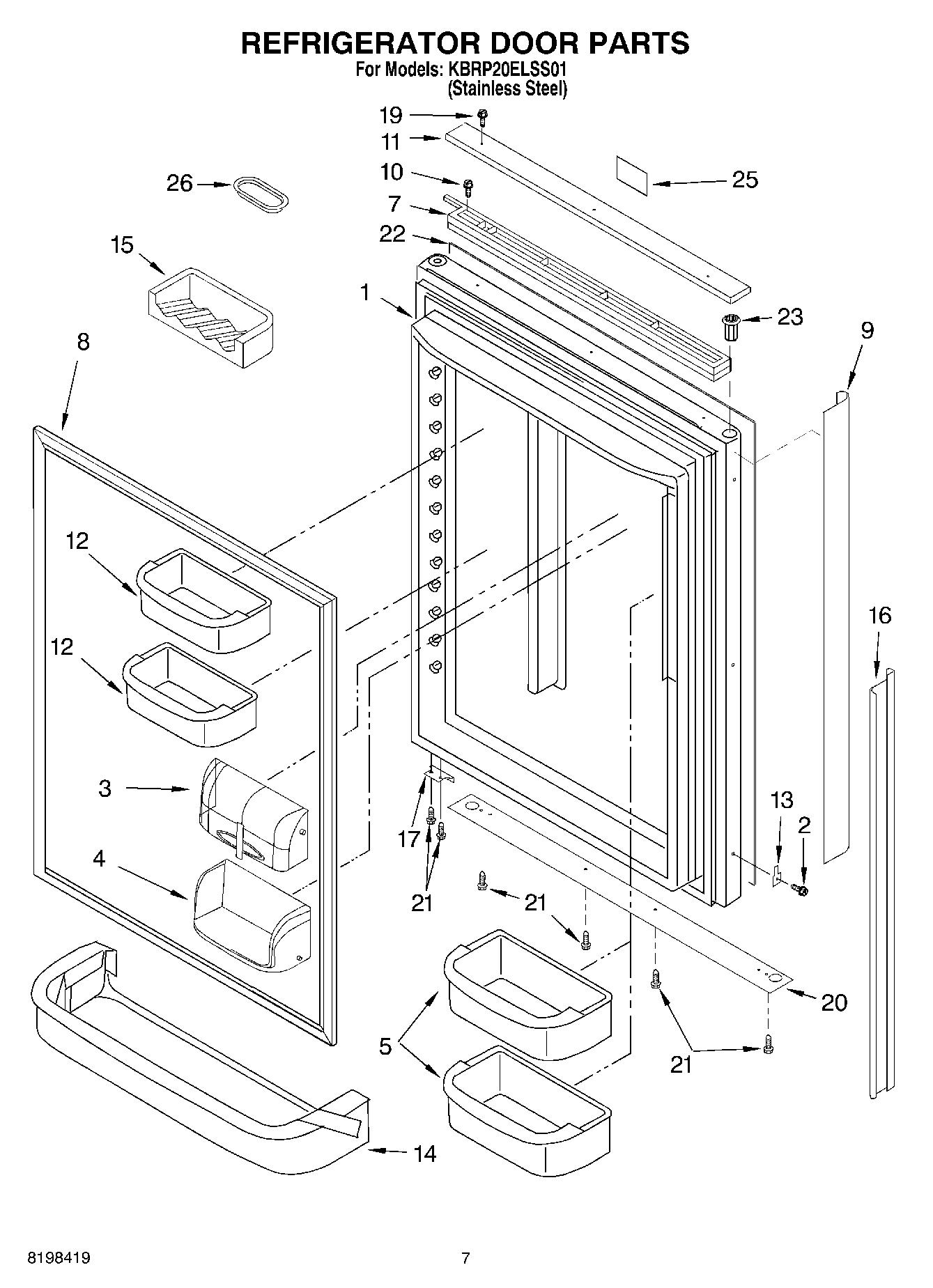

KBRP20ELSS01 04 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1	Refrigerator Door
2	Screw
3	WP67003637 Whirlpool Dairy Door
4	WP67001279 Whirlpool Refrigerator Dairy Tray
5	Shelf Bin (2) (Large)
7	Trim, Door Extension
8	W10849442 Whirlpool Refrigerator FIP Gasket
9	Door Handle
10	WP489474 Whirlpool Refrigerator Screw
11	Trim, Door (Top)
12	Shelf Bin (Medium)
13	67002451 Whirlpool Refrigerator Handle Clip Assembly
14	Door Shelf
15	WP67005626 Whirlpool Refrigerator Can Caddy
16	Trim, Door (Left Side)
16	Trim, Door (Right Side)
17	W11708403 Whirlpool Door Stop
19	Screw
20	Trim, Door (Bottom)
21	WPW10348409 Whirlpool Screw
22	Panel, Door (Stainless Steel)
23	Bushing (Black)
25	Nameplate (Black)
26	WPL 4344296
