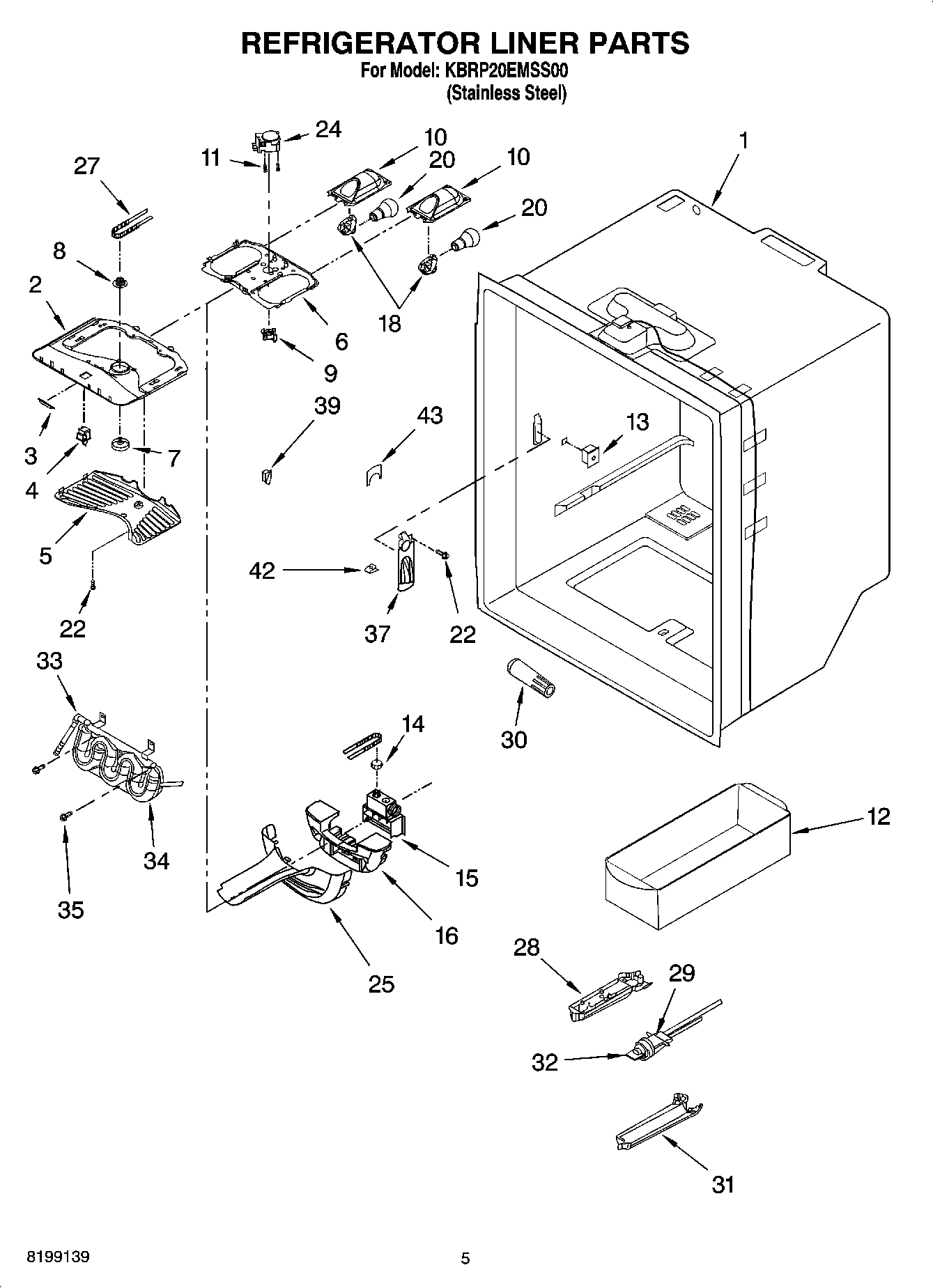

KBRP20EMSS00 03 – REFRIGERATOR LINER PARTS

Products

Position	Product
1	Liner (Not A Serviceable Part)
2	Housing, Ref. Light
3	OVERLAY
4	W11384469 Whirlpool Door Switch
5	Cover, Ref. Light
6	WP67002085 Whirlpool Refrigerator Housing
7	Knob, Damper
8	67001033 Whirlpool Refrigerator Knob Gear
9	67001034 Whirlpool Refrigerator Tensioner Belt
10	Housing, Light
11	Screw (2)
12	W10136387A Whirlpool Refrigerator Egg Container
13	Grommet, Screw
14	Gear, Damper
15	Control, Damper
16	Insulation, Damper
18	W11447232 Whirlpool Refrigerator Socket
20	W11679940 Whirlpool Refrigerator Light Bulb Assembly
22	67006425 Whirlpool Refrigerator Screw
24	WP67001036 Whirlpool Refrigerator Defrost Timer
25	Cover, Control
27	Belt, Damper
28	PLATE-FIL
29	WP67004106 Whirlpool Water Filter Housing
30	everydropÂ® Filter 4 EDR4RXD1 Whirlpool Refrigerator Water
31	WP12568001 Whirlpool Filter Cover
32	Head, Filter Bypass
33	WP2300868 Whirlpool Refrigerator Fitting
34	W11361728 Whirlpool Reservoir Assembly
35	WP98165 Whirlpool Screw
37	Dispenser
39	WP12575501 Whirlpool Refrigerator Micro Switch
42	67002816 Whirlpool Refrigerator Waterline Clip
43	W11519867 Whirlpool Refrigerator Cover
