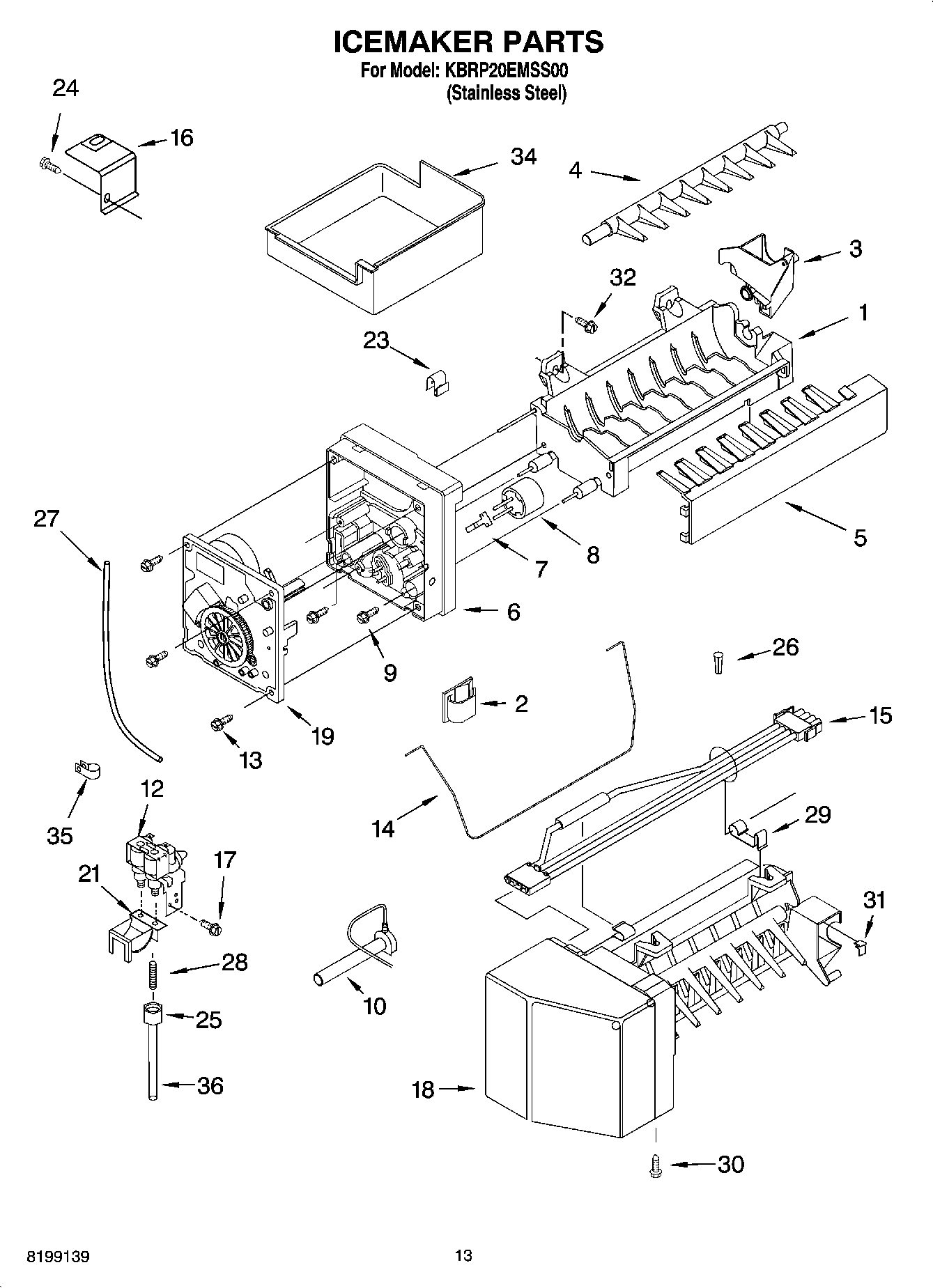

KBRP20EMSS00 07 – ICEMAKER PARTS

KBRP20EMSS00 07 – ICEMAKER PARTS

Written by

in

KBRP20EMSS00 07 – ICEMAKER PARTS

Products

PositionProduct
1WPW10190929 Whirlpool Refrigerator Ice Maker Mold
2WPM0104106 Whirlpool Refrigerator Clip
3WP628356 Whirlpool Refrigerator Fill Cup
4WP627843 Whirlpool Refrigerator Ejector Arm
5WP2182124 Whirlpool Refrigerator Stripper Arm
6WP2195914 Whirlpool Refrigerator Ice Maker Housing
7WP2315522 Whirlpool Refrigerator Clip
8WP627985 Whirlpool Icemaker Cycling Thermostat
9WP681249 Whirlpool Screw Assembly
10W11176463 Whirlpool Refrigerator Water Tube
12WP67005154 Whirlpool Water Valve
13WPL 4344397
14ARM-SHUT
15WPD7813010 Whirlpool Refrigerator Wire Harness
16WP2256087 Whirlpool Refrigerator Bracket
17WPL 4344167
18WPW10289690 Whirlpool Ice Maker Cover
19W10190935 Whirlpool Refrigerator Icemaker Motor Module Assembly
2112831101 Whirlpool Refrigerator Tube Clamp
23WP628379 Whirlpool Refrigerator Clip
2467006425 Whirlpool Refrigerator Screw
25WP627018 Whirlpool Refrigerator Nut
26WPA3223101 Whirlpool Refrigerator Insert PL
28Spring
29WPL 4343984
30WP98165 Whirlpool Screw
31WPM0114003 Whirlpool Microwave Speed Clip Clamp
32W10709801 Whirlpool Refrigerator Screw
34WP67001255 Whirlpool Ice Bucket
35W10833902 Whirlpool Refrigerator Clamp
36W10823511 Whirlpool Refrigerator Water Tube
100W11033771 Whirlpool Refrigerator Coupling
100FOLLOWING PARTS NOT ILLUSTRATED
100Tube Clamp
100Retainer, Tube
100Screw, Bracket
100681390 Whirlpool Refrigerator Screw
100WPL 4344549
100WPL 4344316
100D7824706Q Whirlpool Refrigerator Ice Maker Assembly
100Note: The Following Parts Are Components of Accessory Bag
