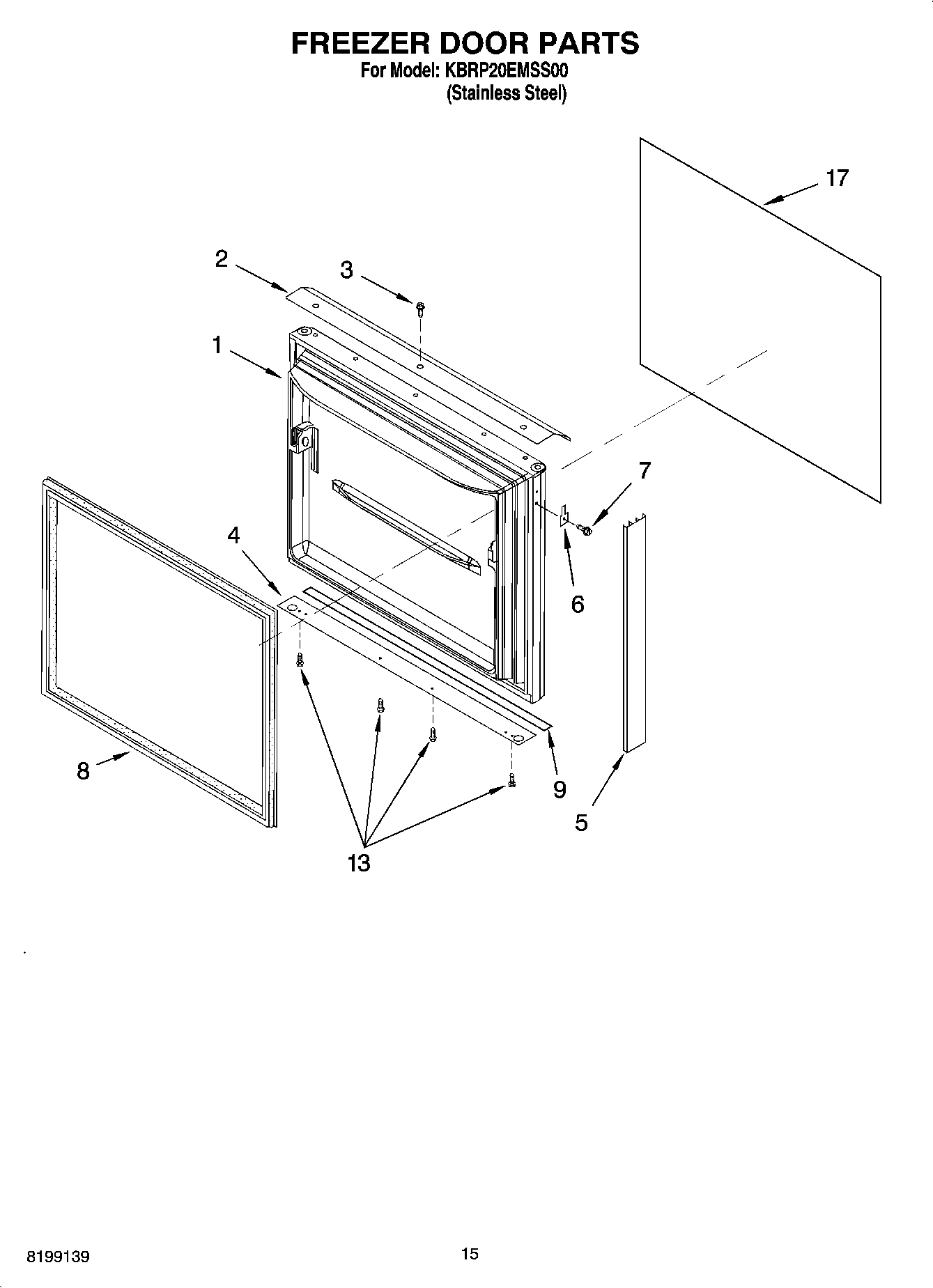

KBRP20EMSS00 08 – FREEZER DOOR PARTS, OPTIONAL PARTS

Products

Position	Product
	WPL ARI79774A3
	TAPE, VINYL (3/4 X 108“)
	CEMENT, ALUMILASTIC (1 1/4 OZ.)
	Enamel, Black (1 Qt. Uncut)
	WPL 799833
	WPL 876029
	285006 Whirlpool Spray
	72032 Whirlpool Touch Up Paint Black
	Ice Container Assembly
	WPL ARI79771A8
	Parts Not Illustr
	WPL ARI79772A4
	WPL ARI79773A7
	Torx Key
	WP542638 Whirlpool Refrigerator Grease
	WP505587 Whirlpool Refrigerator Sealer
	799344 Whirlpool Refrigerator Paint
	Almond (Uncut)
	72017 Whirlpool Appliance Touch-Up Paint White
	350956 Whirlpool Spray Assembly
	350930 Whirlpool White Spray Paint
	212643 Whirlpool Refrigerator Permagum Sealer
	350942 Whirlpool Spray Paint
	511873 Whirlpool Refrigerator Paint
	606755 Whirlpool Refrigerator Bag
	833938 Whirlpool Refrigerator Terminal
	876370 Whirlpool Refrigerator Insulation
	WP503695 Whirlpool Refrigerator Sealer
	WP72107 Whirlpool Touchup
1	Freezer Door
2	HANDLE
3	67006529 Whirlpool Refrigerator Screw
4	Trim, Door (Bottom)
5	Trim, Door (Left Side)
5	Trim, Door (Right Side)
6	67002451 Whirlpool Refrigerator Handle Clip Assembly
7	Screw
8	W10436252 Whirlpool Door Gasket
9	Spacer
13	Screw
17	Panel, Door Stainless Steel
