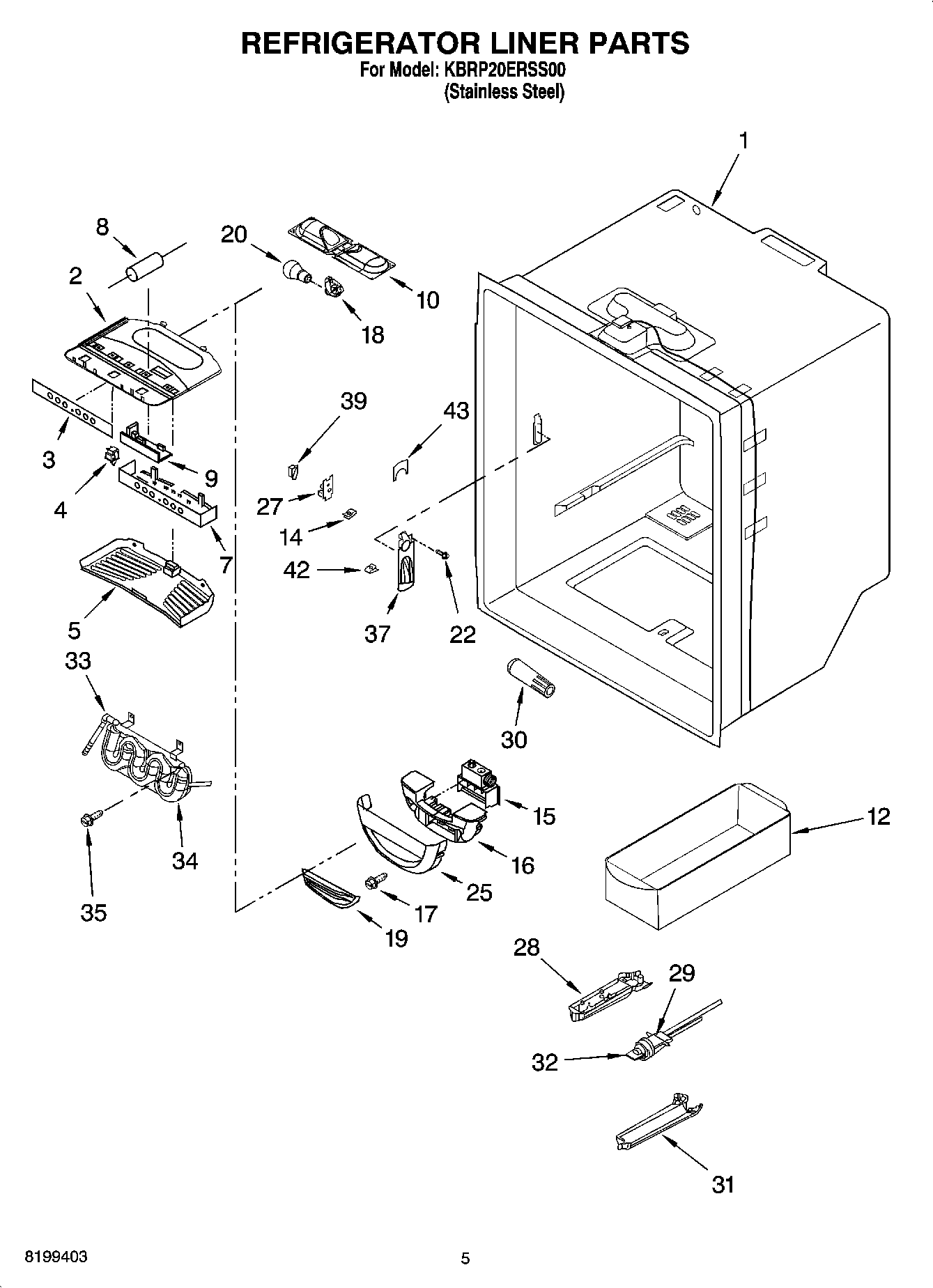

KBRP20ERSS00 03 – REFRIGERATOR LINER PARTS

Products

Position	Product
1	Liner (Not A Serviceable Part)
2	Bracket, Control and Lights
3	Overlay
4	W11384469 Whirlpool Door Switch
5	W11284721 Whirlpool Refrigerator Cover
7	W11416469 Whirlpool Refrigerator Housing
8	12002355 Whirlpool Refrigerator Thermistor Kit
9	WPW10207861-includeCORE Whirlpool WPW10207861 Refrigerator Electronic Control Board + Core
10	12806601 Whirlpool Refrigerator Light Housing
12	W10136387A Whirlpool Refrigerator Egg Container
14	Clip, Front
15	WP67003903 Whirlpool Refrigerator Damper Control
16	WP67003904 Whirlpool Refrigerator Insulation
17	WP400021-1 Whirlpool Screw
18	W11447232 Whirlpool Refrigerator Socket
19	67003900 Whirlpool Refrigerator Insert Damper Cover
20	RANGE ONLY 40W 120V APPL BULB
22	67006425 Whirlpool Refrigerator Screw
25	WP12806701 Whirlpool Refrigerator Box Cover
27	12707303SP Whirlpool Refrigerator Plate
28	PLATE-FIL
29	WP67004106 Whirlpool Water Filter Housing
30	everydropÂ® Filter 4 EDR4RXD1 Whirlpool Refrigerator Water
31	WP12568001 Whirlpool Filter Cover
32	Head, Filter Bypass
33	WP2300868 Whirlpool Refrigerator Fitting
34	Tank, Water
35	WP98165 Whirlpool Screw
37	Dispenser
39	WP12575501 Whirlpool Refrigerator Micro Switch
42	67002816 Whirlpool Refrigerator Waterline Clip
43	Harness, Damper Control
43	67005644 Whirlpool Refrigerator Wire Harness
43	W11519867 Whirlpool Refrigerator Cover
43	FOLLOWING PARTS NOT ILLUSTRATED
