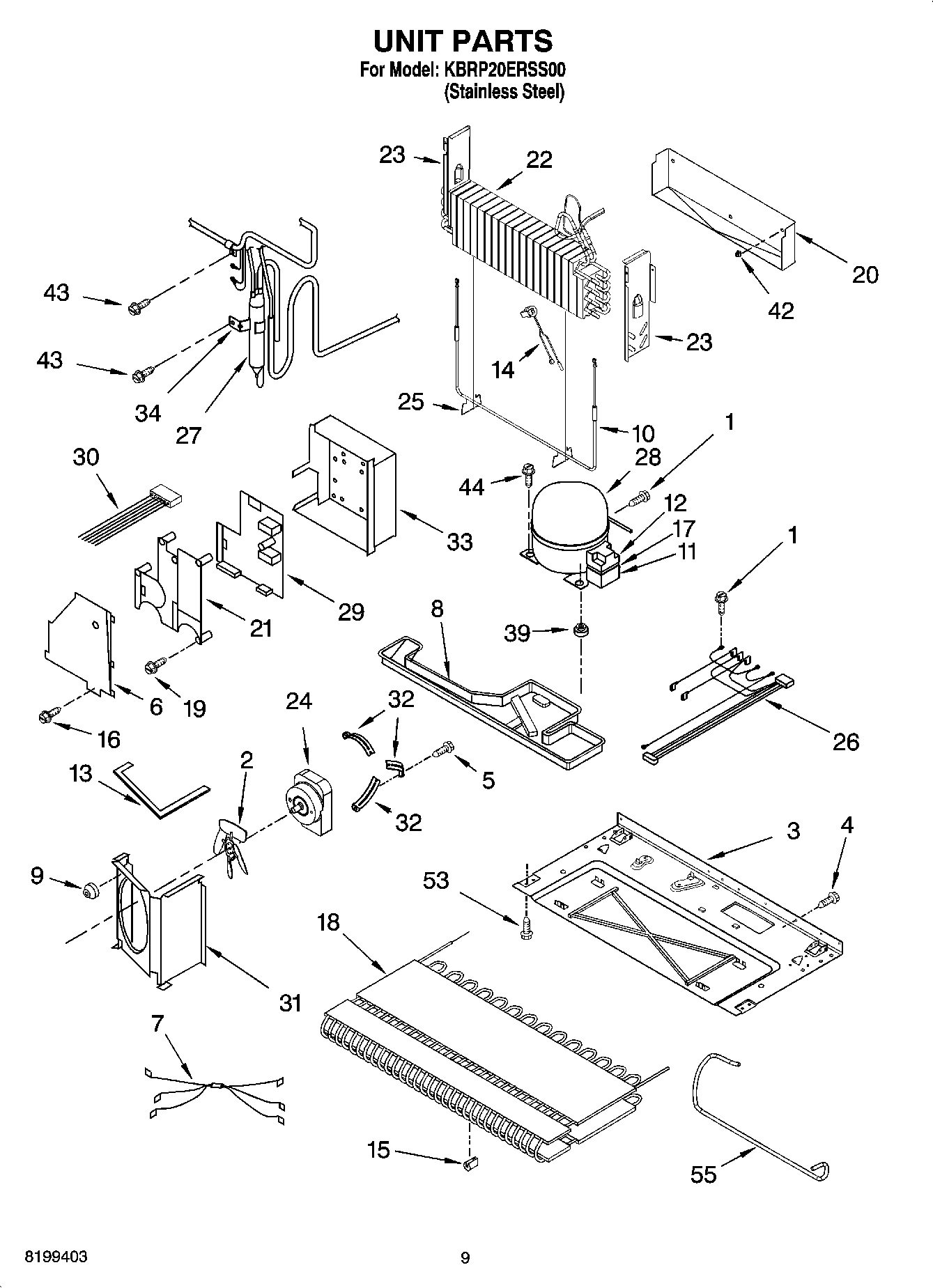

KBRP20ERSS00 05 – UNIT PARTS

KBRP20ERSS00 05 – UNIT PARTS

Written by

in

KBRP20ERSS00 05 – UNIT PARTS

Products

PositionProduct
112992301 Whirlpool Refrigerator Screw
2W10156818 Whirlpool Refrigerator Fan Blade
3Base
4WPL 4344167
5WP67004954 Whirlpool Refrigerator Screw
667005421 Whirlpool Hoist Cover
7Harness, Evap Heater
8WP12579803 Whirlpool Refrigerator Drain Pan
9Grommet (3)
10WP67002493 Whirlpool Refrigerator Defrost Heater
11Clip
12W10613606 Whirlpool Refrigerator Start Device Relay Overload
13WP854334 Whirlpool Air Conditioner Sealing Strip
14WP67003426 Whirlpool Refrigerator Thermostat
1567005680 Whirlpool Refrigerator Condenser Grommet
16Screw
17WP65889-4 Whirlpool Refrigerator Capacitor
18WP67006131 Whirlpool Refrigerator Condenser
19Screw
20Tray, Drip
21Spacer
2212002041 Whirlpool Refrigerator Evaporator Replacement Kit
23Dam (Right Side)
23Dam (Left Side)
24W11613295 Whirlpool Condenser Motor
25W11673433 Whirlpool Clip
26Harness, Unit
27W10843121 Whirlpool Refrigerator Tube
28W10309989 Whirlpool Refrigerator Compressor
29Control Board
30Harness, Wiring
31SHROUD
32WP67004953 Whirlpool Refrigerator Bracket
33Box, Control
34Clip, Drier
39WPL 4343845
42Clip, Evap Motor
43W10709801 Whirlpool Refrigerator Screw
4412846902 Whirlpool Refrigerator Screw
53WPL 4344292
55and Optional Parts Not Included
55FOLLOWING PARTS NOT ILLUSTRATED
55876764 Whirlpool Refrigerator Primary Valve
55978030 Whirlpool Refrigerator Valve
55978026 Whirlpool Refrigerator Primary Valve
55978027 Whirlpool Refrigerator Primary Valve
55WP978025 Whirlpool Refrigerator Valve
55VALVE, ACCESS (1/2“)
55VALVE, ACCESS (5/8“)
55WP12866903 Whirlpool Refrigerator Discharge Tube
55REFRIGERANT CHARGE 5.0 Ozs. (R-134A)
