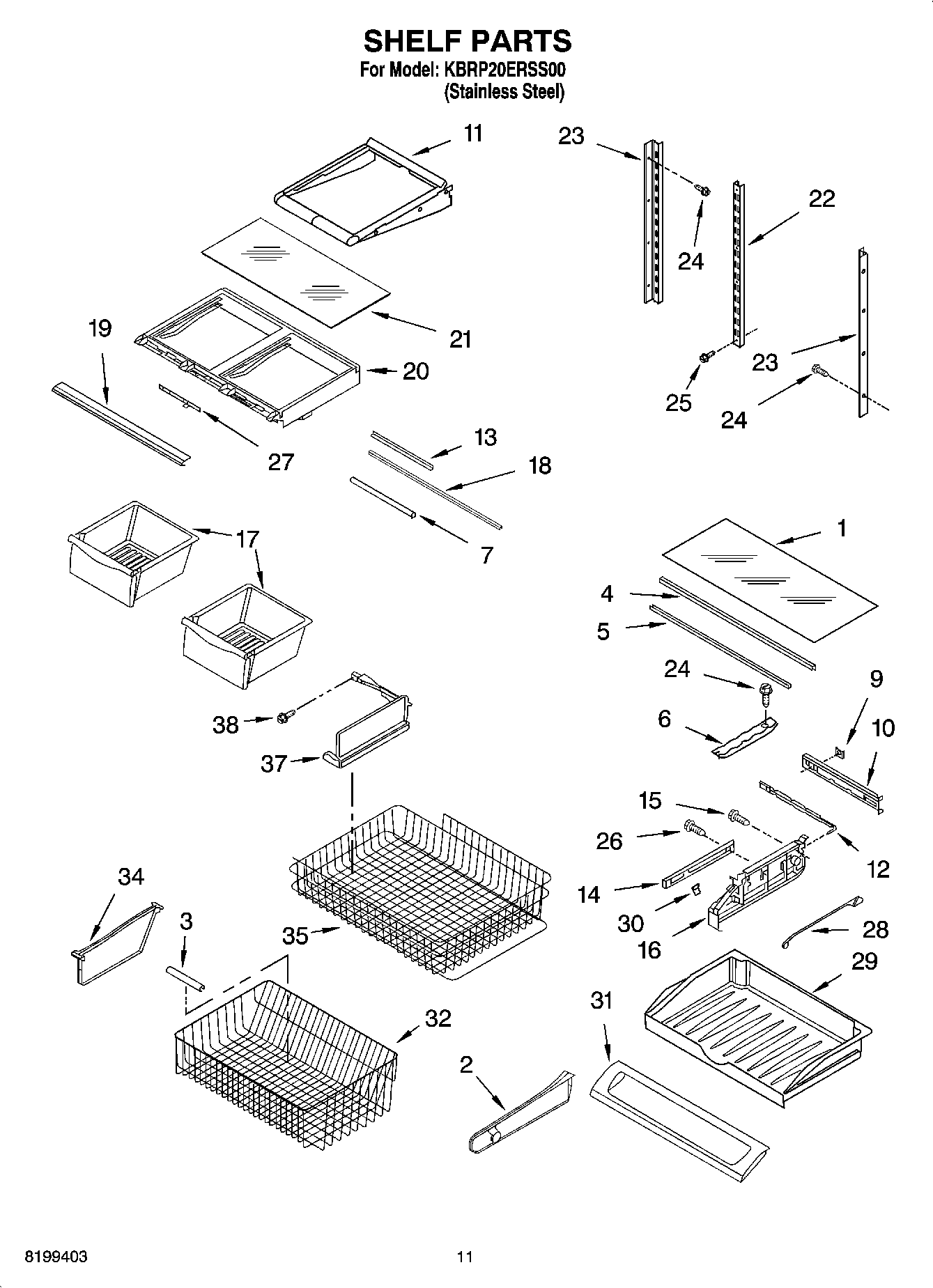

KBRP20ERSS00 06 – SHELF PARTS

Products

Position	Product
1	WP67002332 Whirlpool Refrigerator Glass Pan
2	WP67002321 Whirlpool Refrigerator Divider Panel
3	Handle, Basket
4	WP67006010 Whirlpool Refrigerator Shelf Trim
5	WP12227305WD Whirlpool Drawer Support
6	WP67001719 Whirlpool Refrigerator Track
7	WP67003417 Whirlpool Refrigerator Front Seal
9	67002329 Whirlpool Refrigerator Pantry Gasket
10	12656202 Whirlpool Refrigerator Housing
11	Shelf, Glide (4)
12	WP67003793 Whirlpool Refrigerator Temperature Slide
13	WP67002513 Whirlpool Refrigerator Rear Crisper Seal
14	WPW10235370 Whirlpool Refrigerator Glide
15	WPL 4344523
16	WP12656105 Whirlpool Drawer Support
16	WP12656018 Whirlpool Drawer Support
17	WP67002659 Whirlpool Crisper Pan
18	WP12227304WD Whirlpool Refrigerator Drawer Support
19	Trim, Crisper
20	WP67006185 Whirlpool Refrigerator Crisper Frame
21	WP67006655 Whirlpool Refrigerator Crisper Glass Shelf
22	Ladder, Center
23	Ladder, Side
24	67006425 Whirlpool Refrigerator Screw
25	Screw
26	Hinge Bottom (Black)
27	SLIDE
28	67003794 Whirlpool Refrigerator Temperature Control Bar
29	W11490183 Whirlpool Refrigerator Utility Pan
30	W11498983 Whirlpool Refrigerator Knob
31	WP67005930 Whirlpool Refrigerator Pantry Drawer Front Lid
32	W10503185 Whirlpool Dishwasher Cutlery Basket
34	Divider, Lower Basket
35	Divider, Upper Basket
37	Divider, Upper Basket
38	Screw
