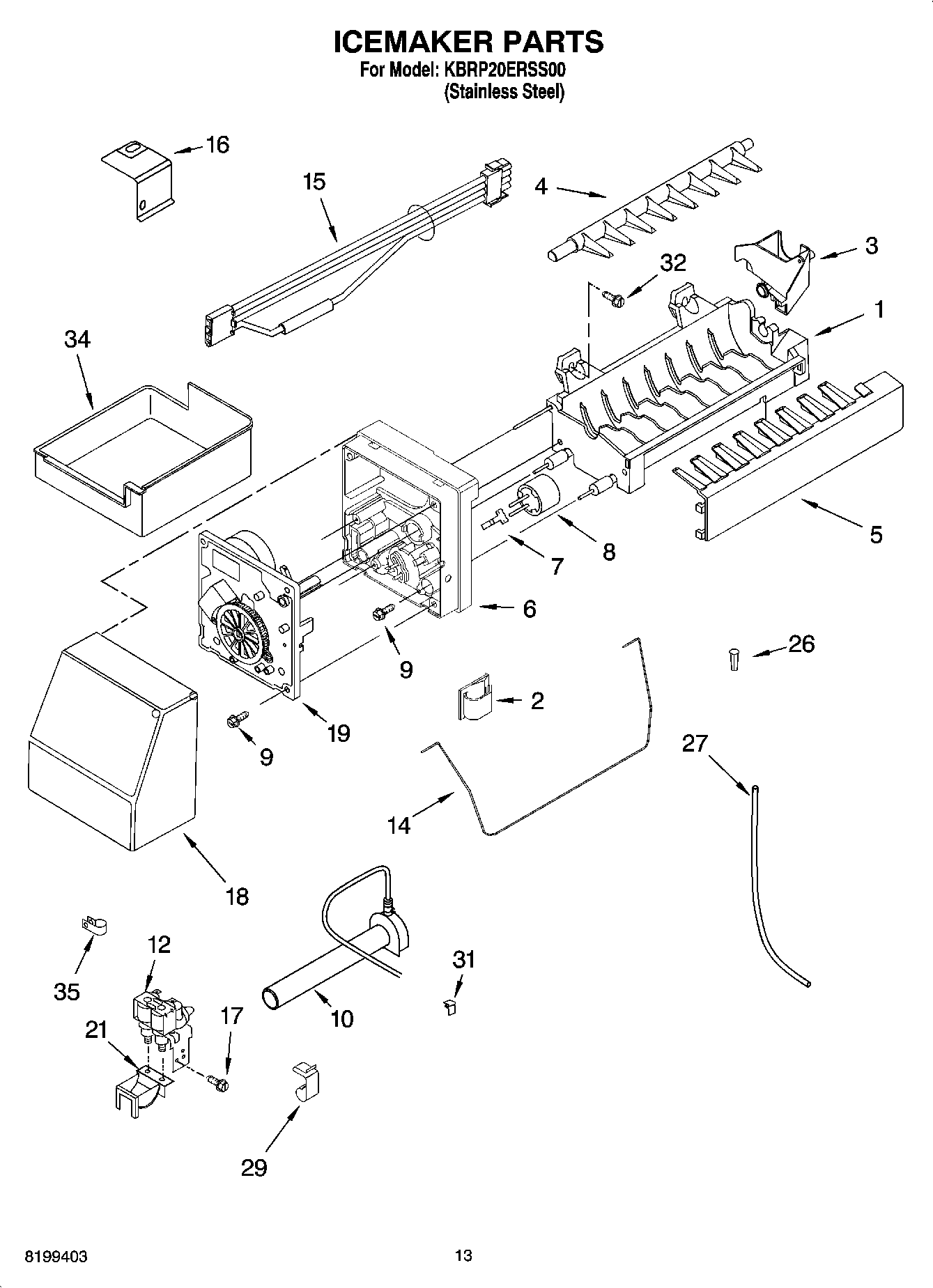

KBRP20ERSS00 07 – ICEMAKER PARTS

Products

Position	Product
1	Mold & Heater Assembly (Not Available — Order 8170937)
2	WPM0104106 Whirlpool Refrigerator Clip
3	WP628356 Whirlpool Refrigerator Fill Cup
4	WP627843 Whirlpool Refrigerator Ejector Arm
5	WP2182124 Whirlpool Refrigerator Stripper Arm
6	WP2195914 Whirlpool Refrigerator Ice Maker Housing
7	WP2315522 Whirlpool Refrigerator Clip
8	Thermostat (Not Available — Order 8170937)
9	WP681249 Whirlpool Screw Assembly
10	W11176463 Whirlpool Refrigerator Water Tube
12	WP67005154 Whirlpool Water Valve
14	ARM-SHUT
15	WPD7813010 Whirlpool Refrigerator Wire Harness
16	WP2256087 Whirlpool Refrigerator Bracket
17	WPL 4344167
18	WPW10289690 Whirlpool Ice Maker Cover
19	Module Assembly (Not Available — Order 8170937)
21	12831101 Whirlpool Refrigerator Tube Clamp
26	WPA3223101 Whirlpool Refrigerator Insert PL
27	W10823511 Whirlpool Refrigerator Water Tube
29	Clip, Water Line
31	WPM0114003 Whirlpool Microwave Speed Clip Clamp
32	WP98165 Whirlpool Screw
34	WP67001255 Whirlpool Ice Bucket
35	W10833902 Whirlpool Refrigerator Clamp
100	Note: The Following Parts Are Components of Accessory Bag
100	Tube Clamp
100	FOLLOWING PARTS NOT ILLUSTRATED
100	Retainer, Tube
100	Screw, Bracket
100	WPL 4344549
100	WPL 4344316
100	W11033771 Whirlpool Refrigerator Coupling
100	D7824706Q Whirlpool Refrigerator Ice Maker Assembly
100	681390 Whirlpool Refrigerator Screw
