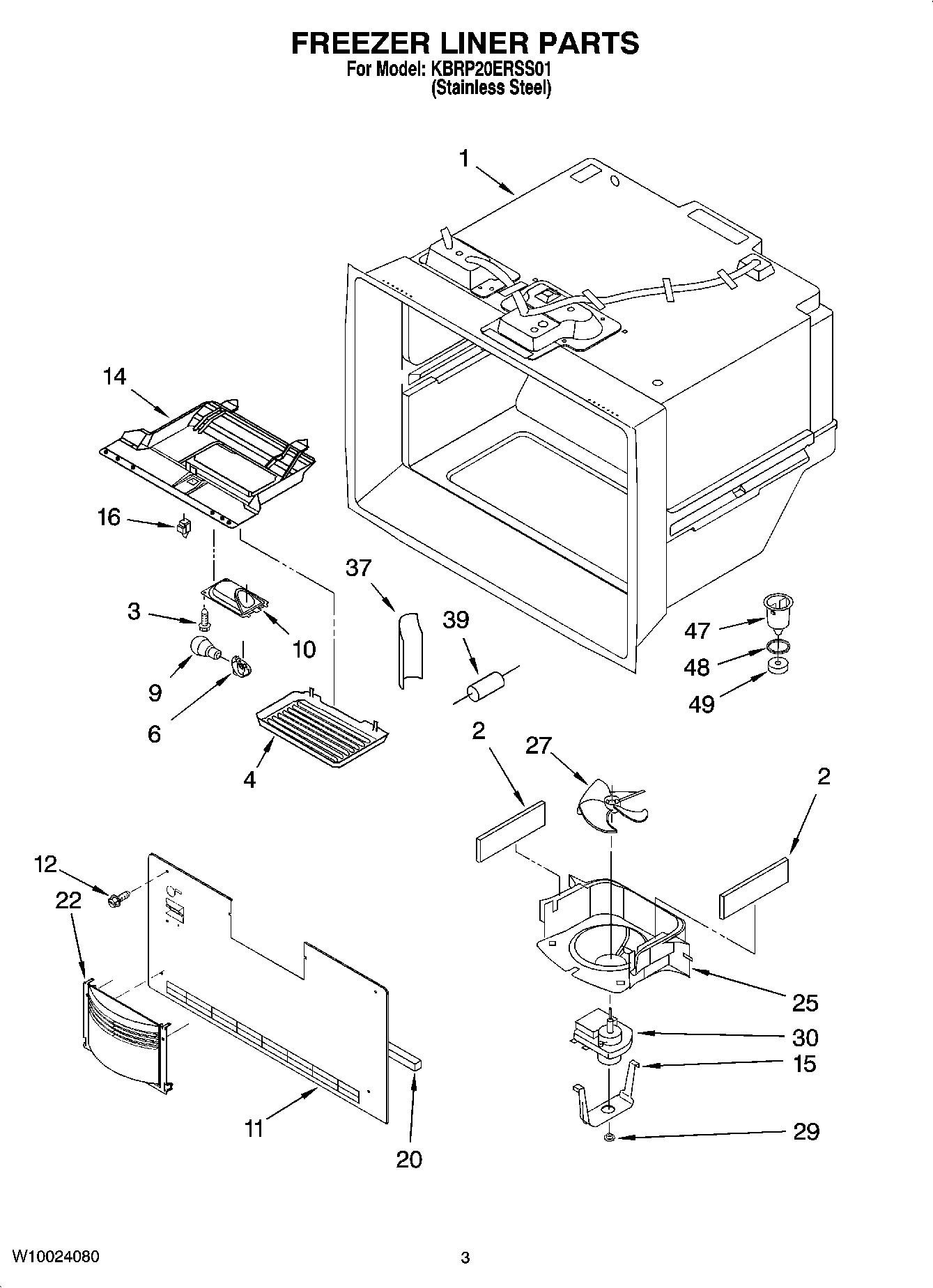

KBRP20ERSS01 02 – FREEZER LINER PARTS

KBRP20ERSS01 02 – FREEZER LINER PARTS

Written by

in

KBRP20ERSS01 02 – FREEZER LINER PARTS

Products

PositionProduct
1Liner (Not A Seviceable Part)
2W10856123 Whirlpool Refrigerator Gasket
3WPW10139210 Whirlpool Screw
4Cover, Light
6W11447232 Whirlpool Refrigerator Socket
9RANGE ONLY 40W 120V APPL BULB
10Housing, Light
11Trim, Crisper
12WPL 4344167
1467003906 Whirlpool Refrigerator Control Module
15Clip, Evap. Motor
16W11396033 Whirlpool Refrigerator Rocker Switch
20W11159728 Whirlpool Refrigerator Gasket
22WPW10175909 Whirlpool Grille Assembly
25Shroud, Evap.Fan
27WP2169142 Whirlpool Fan Blade
29WP67002780 Whirlpool Refrigerator Grommet
30WPW10128551 Whirlpool Evaporator Fan Motor
37WP67003924 Whirlpool Refrigerator Cover
3912002355 Whirlpool Refrigerator Thermistor Kit
47W10815413 Whirlpool Refrigerator Funnel
48WPM0500703 Whirlpool Refrigerator O-Ring Seal
49WPB8381501 Whirlpool Refrigerator Door Gasket
49Harness, Lights (Freezer)
49FOLLOWING PARTS NOT ILLUSTRATED
