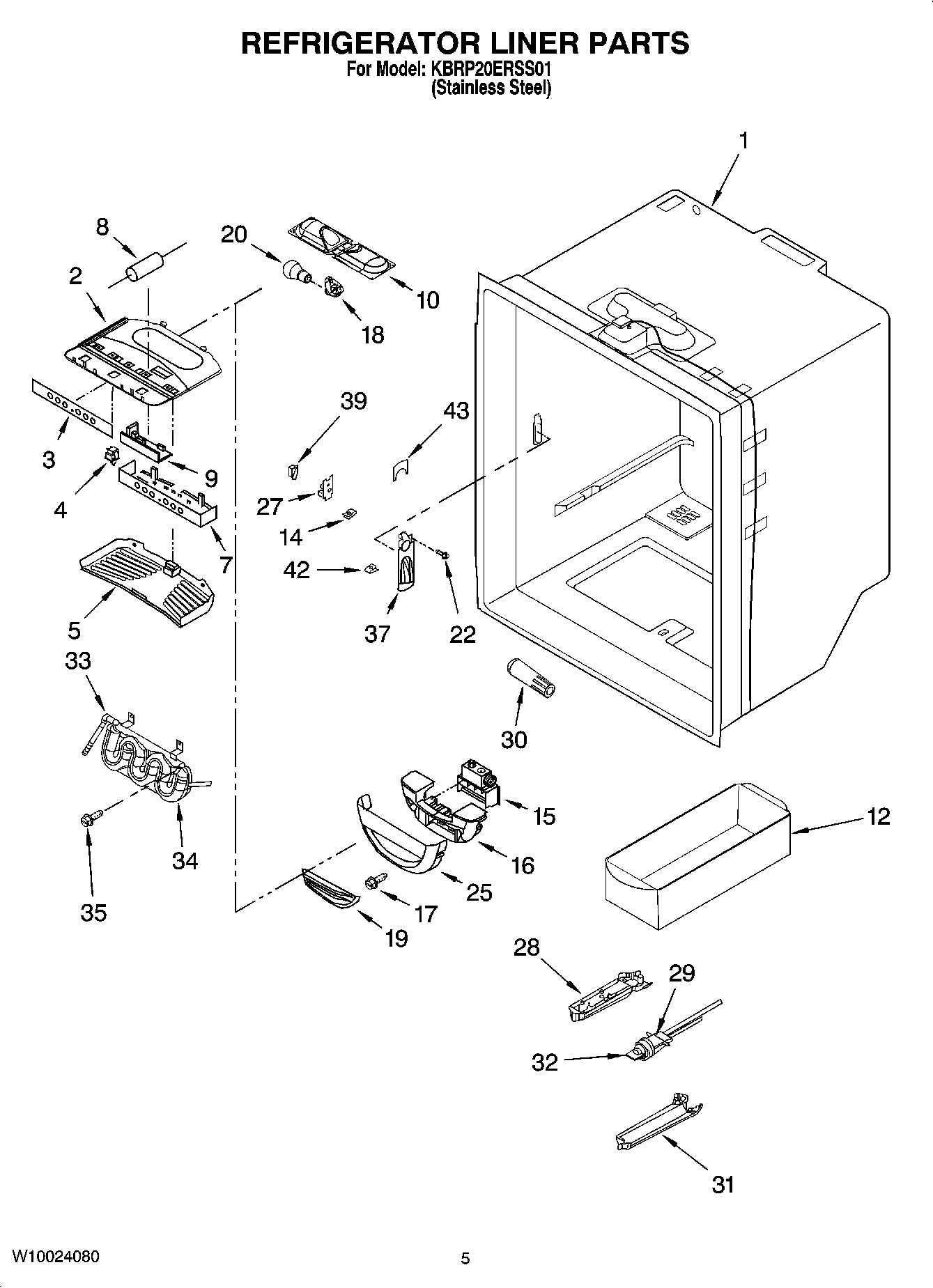

KBRP20ERSS01 03 – REFRIGERATOR LINER PARTS

Products

PositionProduct
1Liner (Not A Serviceable Part)
2Bracket, Control and Lights
3Overlay
4W11384469 Whirlpool Door Switch
5W11284721 Whirlpool Refrigerator Cover
7W11416469 Whirlpool Refrigerator Housing
812002355 Whirlpool Refrigerator Thermistor Kit
9WPW10207861-includeCORE Whirlpool WPW10207861 Refrigerator Electronic Control Board + Core
1012806601 Whirlpool Refrigerator Light Housing
12W10136387A Whirlpool Refrigerator Egg Container
14Clip, Front
15WP67003903 Whirlpool Refrigerator Damper Control
16WP67003904 Whirlpool Refrigerator Insulation
17WP400021-1 Whirlpool Screw
18W11447232 Whirlpool Refrigerator Socket
1967003900 Whirlpool Refrigerator Insert Damper Cover
20RANGE ONLY 40W 120V APPL BULB
2267006425 Whirlpool Refrigerator Screw
25WP12806701 Whirlpool Refrigerator Box Cover
2712707303SP Whirlpool Refrigerator Plate
28PLATE-FIL
29WP67004106 Whirlpool Water Filter Housing
30everydrop® Filter 4 EDR4RXD1 Whirlpool Refrigerator Water
31WP12568001 Whirlpool Filter Cover
32Head, Filter Bypass
33WP2300868 Whirlpool Refrigerator Fitting
34Tank, Water
35WP98165 Whirlpool Screw
37Dispenser
39WP12575501 Whirlpool Refrigerator Micro Switch
4267002816 Whirlpool Refrigerator Waterline Clip
43Harness, Damper Control
4367005644 Whirlpool Refrigerator Wire Harness
43W11519867 Whirlpool Refrigerator Cover
43FOLLOWING PARTS NOT ILLUSTRATED
