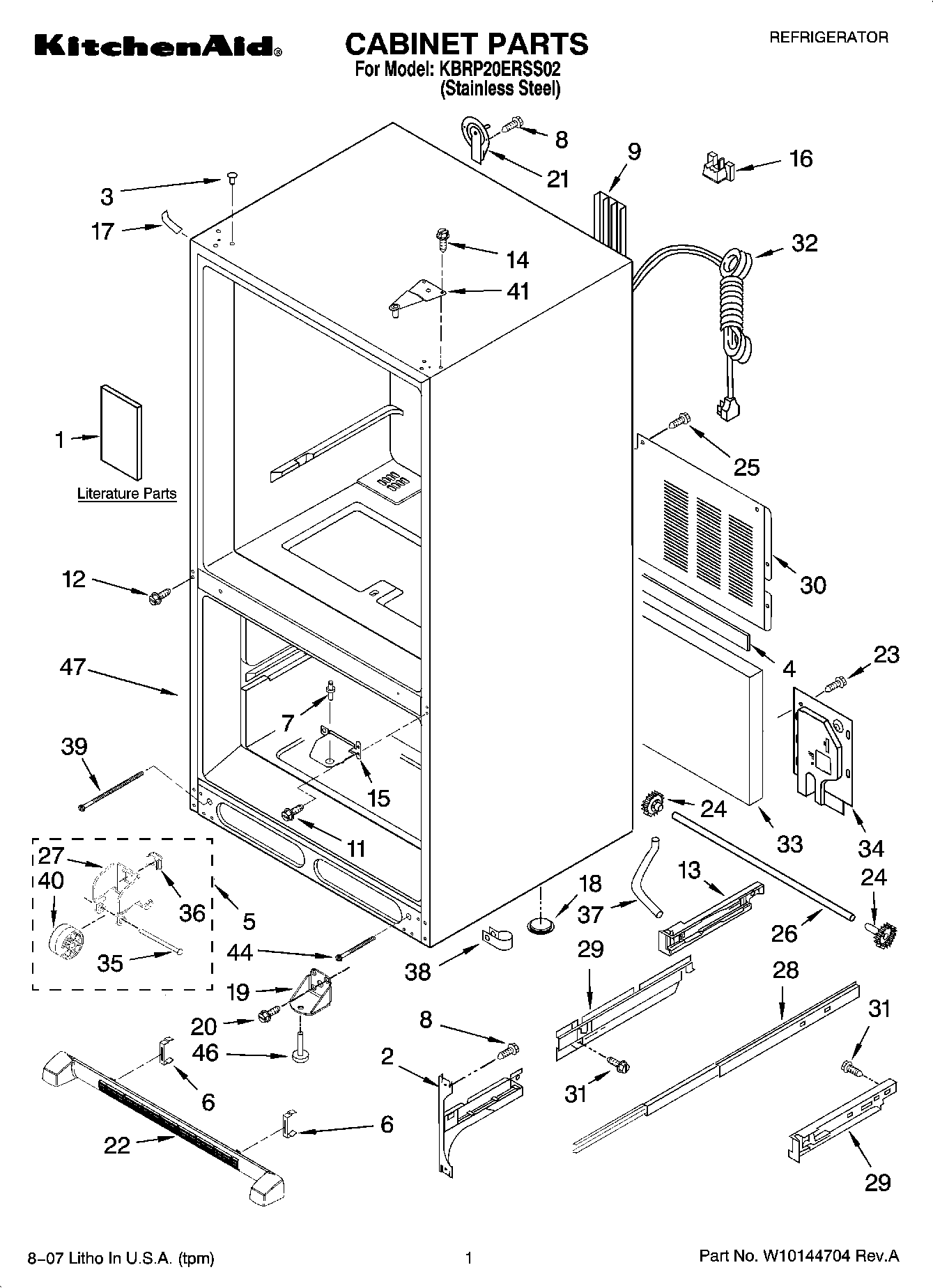

KBRP20ERSS02 01 – CABINET PARTS

Products

Position	Product
1	Tag, Energy
1	Owners Manual
1	Tech Sheet
2	WPW10330991 Whirlpool Refrigerator Bracket
2	WPW10330993 Whirlpool Refrigerator Bracket
3	WP12246608 Whirlpool Refrigerator Button
4	Gasket
5	Roller Assy.(Rear)
6	Clip, Grille
7	WP67006642 Whirlpool Refrigerator Pin
8	W10709801 Whirlpool Refrigerator Screw
9	Track, Waterline
11	WP67006380 Whirlpool Screw
12	WP98165 Whirlpool Screw
13	W10251557 Whirlpool Refrigerator Bracket
14	WP489349 Whirlpool Refrigerator Screw
15	Hinge, Center
16	WP12777701 Whirlpool Refrigerator Filler Block
17	67003485 Whirlpool Refrigerator Corner Cover (Black)
18	A3076901 Whirlpool Refrigerator Plug
19	Bracket, Foot
20	67006564 Whirlpool Refrigerator Screw
21	12726003 Whirlpool Refrigerator Water Cover
22	WPW10534153 Whirlpool Refrigerator Black Kickplate Grille
23	WP489128 Whirlpool Refrigerator Screw
24	12002497 Whirlpool Refrigerator Drawer Gear Kit
25	67006425 Whirlpool Refrigerator Screw
26	W11028221 Whirlpool Refrigerator Shaft
27	12456801V Whirlpool Refrigerator Bracket
28	Slide, Drawer
29	W10284690 Whirlpool Refrigerator Bracket
29	Adapter, Slide (Right)
30	Cover, Unit
31	WP489474 Whirlpool Refrigerator Screw
32	Power Cord
33	67003796 Whirlpool Refrigerator Fiber Acoustic
34	Cover, Water Valve
35	Pin
36	M0286708 Whirlpool Refrigerator Holder Nut Assembly
37	Tube, Drain
38	67001067 Whirlpool Refrigerator Drain Tube Clip
39	71003131 Whirlpool Oven Screw
41	Hinge, Top (Left)
41	12626910ED Whirlpool Refrigerator Door Hinge
44	Bolt, Adjusting (Rear)
46	W11177593 Whirlpool Leveling Feet
47	Cabinet, (Not A Serviceable Part)
