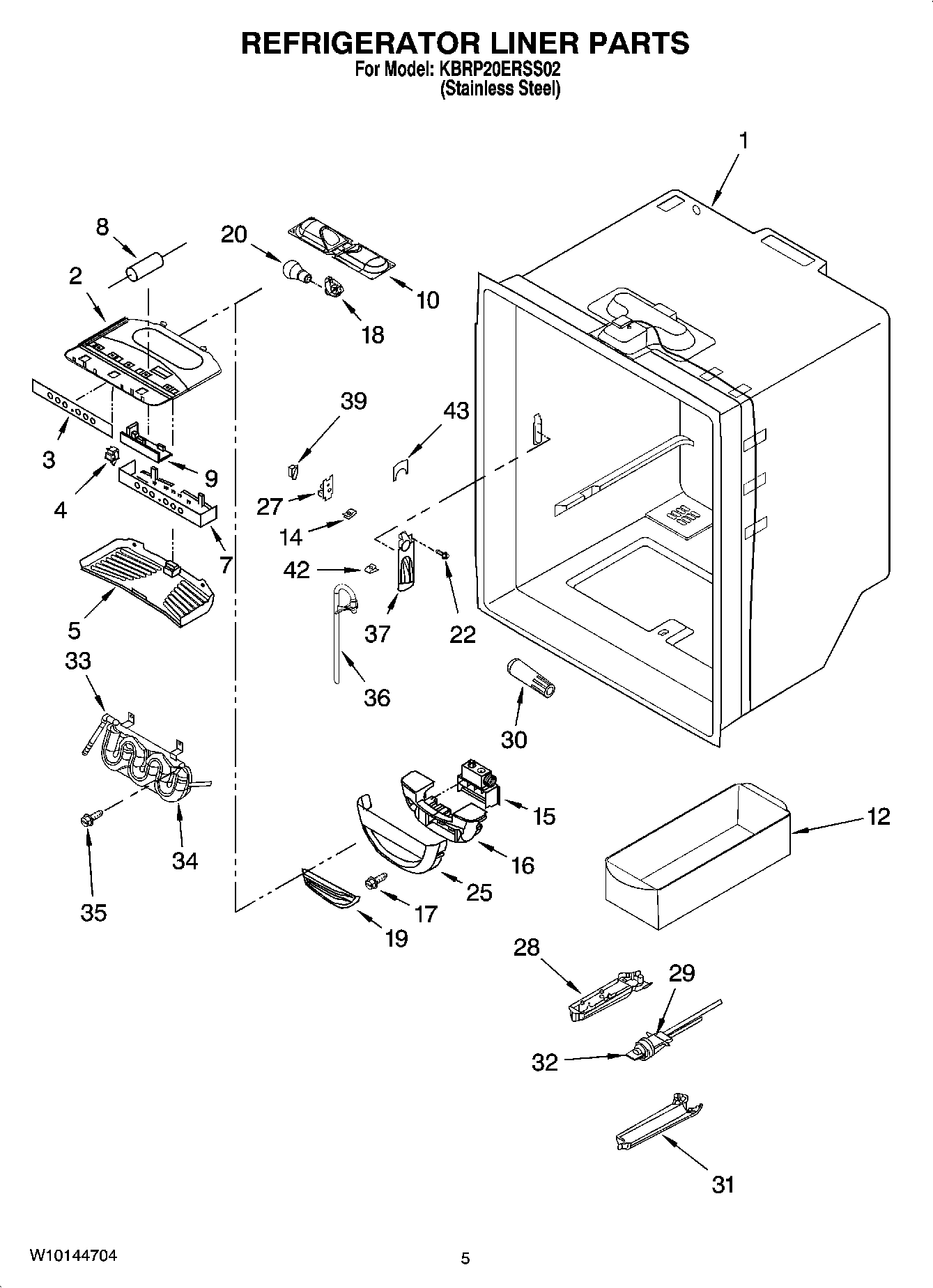

KBRP20ERSS02 03 – REFRIGERATOR LINER PARTS

Products

Position	Product
1	Liner (Not A Serviceable Part)
2	Housing, Ref. Light
3	Overlay
4	W11384469 Whirlpool Door Switch
5	W11284721 Whirlpool Refrigerator Cover
7	Module, Control
8	12002355 Whirlpool Refrigerator Thermistor Kit
9	WPW10207861-includeCORE Whirlpool WPW10207861 Refrigerator Electronic Control Board + Core
10	12806601 Whirlpool Refrigerator Light Housing
12	W10136387A Whirlpool Refrigerator Egg Container
14	W10819546 Whirlpool Refrigerator Clip
15	WPW10196393 Whirlpool Control Damper
16	INSULATION
17	WP400021-1 Whirlpool Screw
18	W11447232 Whirlpool Refrigerator Socket
19	67003900 Whirlpool Refrigerator Insert Damper Cover
20	W11679940 Whirlpool Refrigerator Light Bulb Assembly
22	WP98165 Whirlpool Screw
25	WP12806701 Whirlpool Refrigerator Box Cover
27	12707303SP Whirlpool Refrigerator Plate
28	PLATE-FIL
29	WP67006524 Whirlpool Refrigerator Housing
30	Filter, Water
31	WP12568001 Whirlpool Filter Cover
32	Plug, Bypass
33	WP2300868 Whirlpool Refrigerator Fitting
34	W11361728 Whirlpool Reservoir Assembly
35	67006425 Whirlpool Refrigerator Screw
36	W11677725 Whirlpool Refrigerator Guide
37	Cover, Dispenser Front
39	WP12575501 Whirlpool Refrigerator Micro Switch
42	67002816 Whirlpool Refrigerator Waterline Clip
43	67005644 Whirlpool Refrigerator Wire Harness
43	W11519867 Whirlpool Refrigerator Cover
43	Harness, Damper Control
43	Following Parts Not Illustrated
