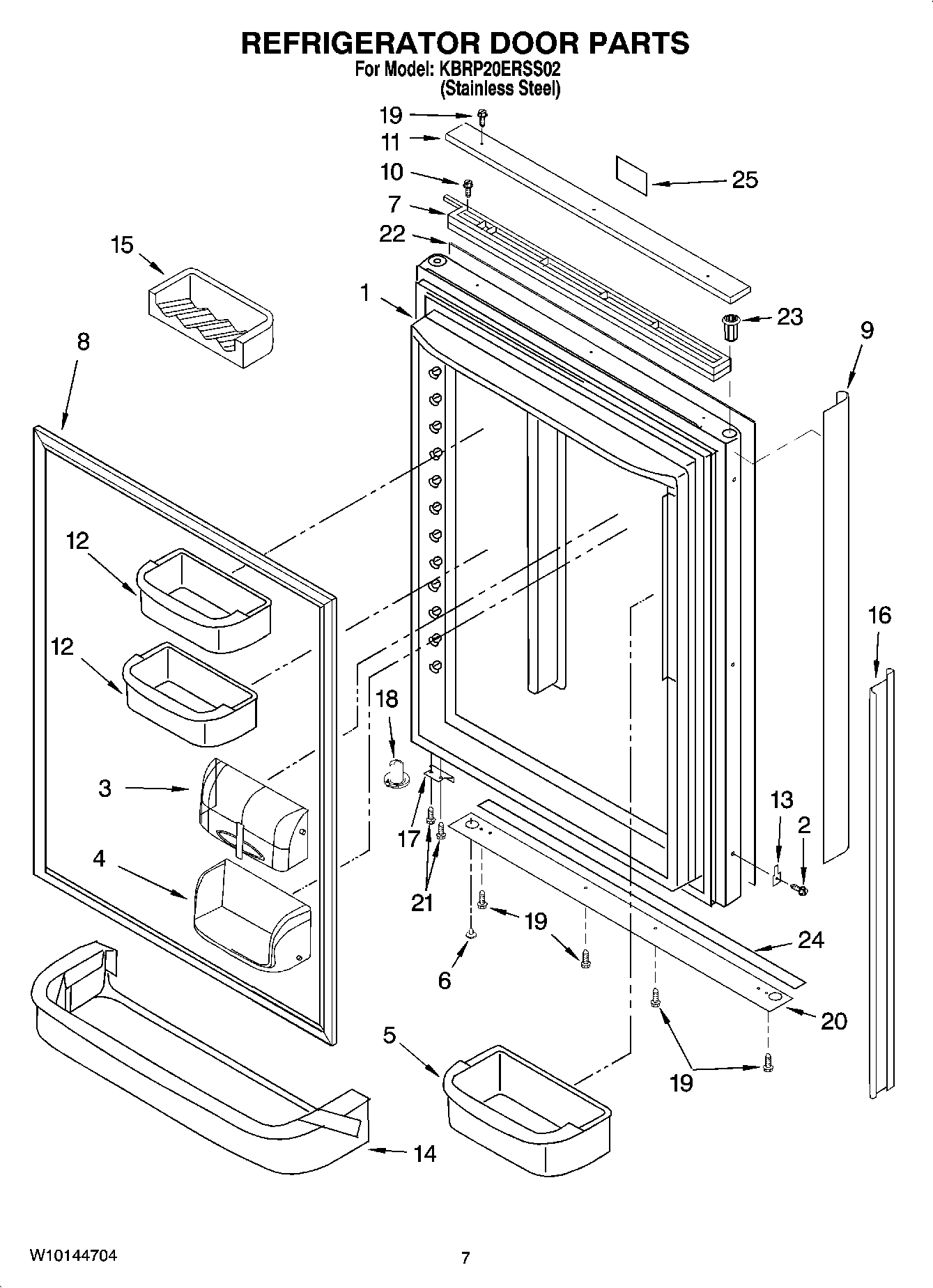

KBRP20ERSS02 04 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1	Refrigerator Door
2	WP489128 Whirlpool Refrigerator Screw
3	WP12744905 Whirlpool Refrigerator Compressor Door
4	WP67001279 Whirlpool Refrigerator Dairy Tray
5	Shelf Bin (Medium)
6	67004838 Whirlpool Refrigerator Button Vent Plug
7	Trim, Door Extension
8	W10849442 Whirlpool Refrigerator FIP Gasket
9	Door Handle
10	WP489474 Whirlpool Refrigerator Screw
11	Trim, Door Top
12	Shelf Bin (Large)
13	67002451 Whirlpool Refrigerator Handle Clip Assembly
14	Trim, Door Shelf
15	WP67005626 Whirlpool Refrigerator Can Caddy
16	Trim, Door (Right Side)
16	Trim, Door (Left Side)
17	W11708403 Whirlpool Door Stop
18	WP67003639 Whirlpool Refrigerator Closer
19	WP3400805 Whirlpool Screw Assembly
20	Trim, Door Bottom
21	WP98165 Whirlpool Screw
22	Panel, Door Stainless Steel
23	67004978 Whirlpool Refrigerator Black Door Bushing
24	Spacer, Bottom
25	NAMEPLATE
