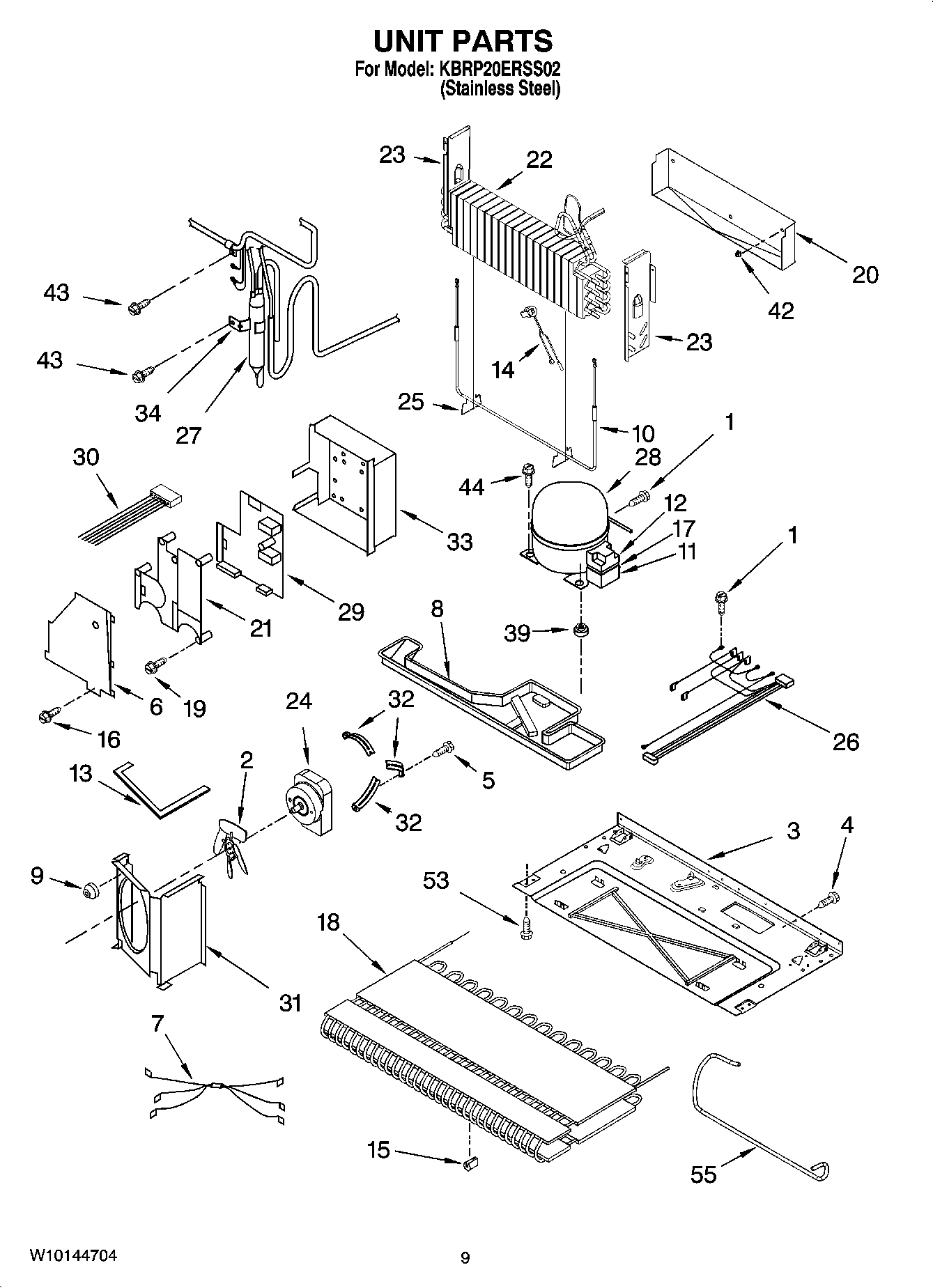

KBRP20ERSS02 05 – UNIT PARTS

Products

PositionProduct
112992301 Whirlpool Refrigerator Screw
2W10156818 Whirlpool Refrigerator Fan Blade
3Basepan
467006425 Whirlpool Refrigerator Screw
5WP67004954 Whirlpool Refrigerator Screw
667005421 Whirlpool Hoist Cover
7Harness, Evap Heater
8WP12579803 Whirlpool Refrigerator Drain Pan
9Grommet (3)
10WP67002493 Whirlpool Refrigerator Defrost Heater
11Clip, Capacitor
12W10613606 Whirlpool Refrigerator Start Device Relay Overload
13WP854334 Whirlpool Air Conditioner Sealing Strip
14WP67003426 Whirlpool Refrigerator Thermostat
1567005680 Whirlpool Refrigerator Condenser Grommet
16Screw (2)
17Capacitor (See Item 12)
18WP67006131 Whirlpool Refrigerator Condenser
19Screw
20W11547653 Whirlpool Refrigerator Drip Tray
21Spacer, Box- High Voltage
2212002041 Whirlpool Refrigerator Evaporator Replacement Kit
23Dam (Left Side)
23Dam (Right Side)
24Motor, Fan
25W11673433 Whirlpool Clip
26Harness, Unit
27WPW10143759 Whirlpool Dryer Filter
28W10160407 Whirlpool Refrigerator Compressor
29Control Board, High Voltage
30Harness, High Voltage
31Shroud
32WP67004953 Whirlpool Refrigerator Bracket
33Control Box, High Voltage
3410547003 Whirlpool Refrigerator Dryer Clip
3967003493 Whirlpool Refrigerator Compressor Grommet
42CLIP, EVAP (2)
43WP33001882 Whirlpool Screw
4412846902 Whirlpool Refrigerator Screw
53Screw (4)
55Following Parts Not Illustrated and Optional Parts Not Included
55REFRIGERANT CHARGE 5.0 Ozs. (R-134A)
55WP12866903 Whirlpool Refrigerator Discharge Tube
55VALVE, ACCESS (5/8“)
55876764 Whirlpool Refrigerator Primary Valve
55978026 Whirlpool Refrigerator Primary Valve
55978027 Whirlpool Refrigerator Primary Valve
55VALVE, ACCESS (1/2“)
55978030 Whirlpool Refrigerator Valve
55WP978025 Whirlpool Refrigerator Valve
