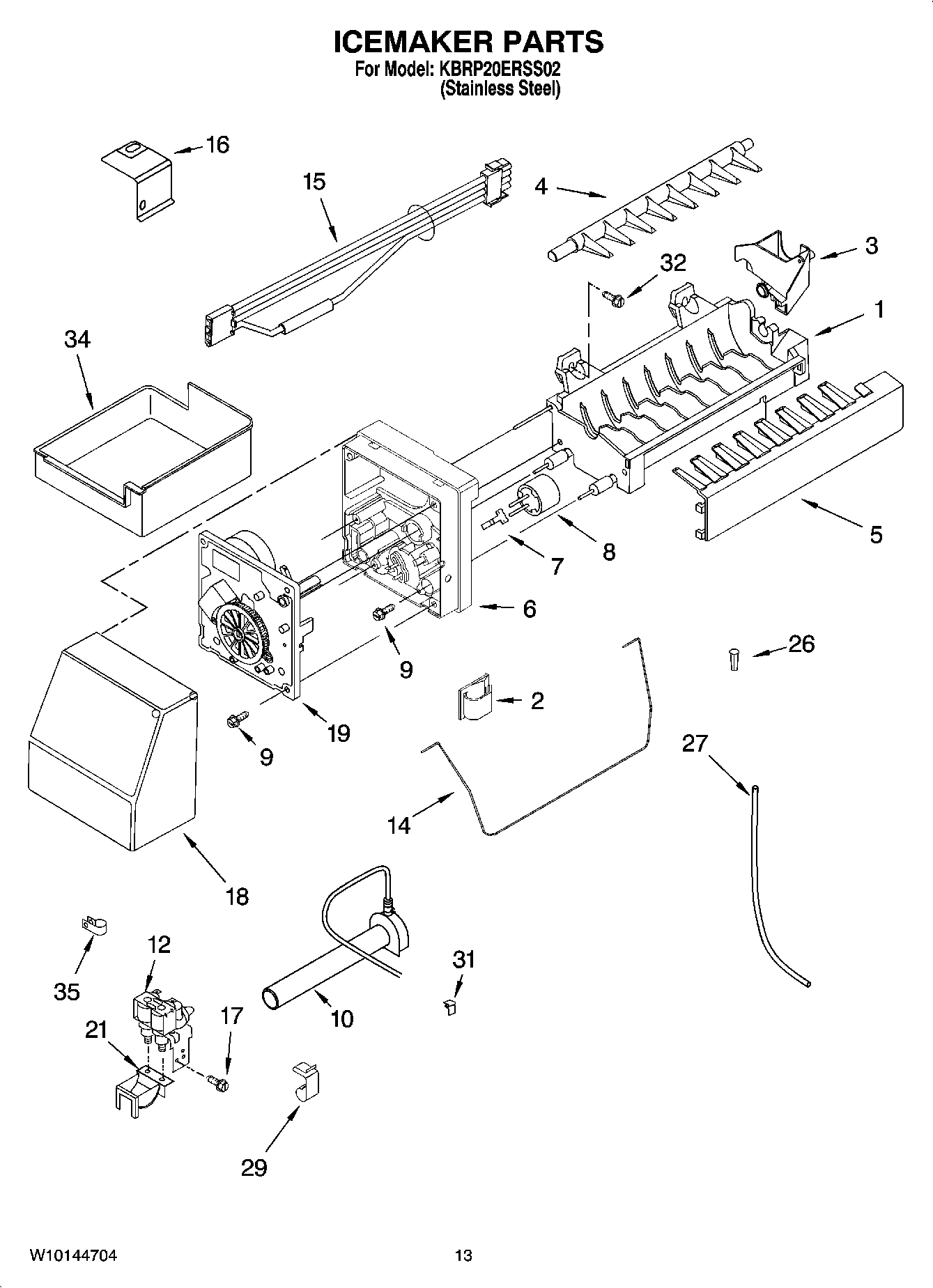

KBRP20ERSS02 07 – ICEMAKER PARTS

Products

Position	Product
	Following Parts Not Illustrated
	WPL 4344549
	Note: The Following Parts Are Components of Accessory Bag
	8003RP Whirlpool Refrigerator 25' 1/4" Copper Water Supply Line Kit
	Tube Clamp
	WPL 4344316
	W11033771 Whirlpool Refrigerator Coupling
1	Mold & Heater Assembly (Not Available Order D7824706Q)
2	W10833902 Whirlpool Refrigerator Clamp
3	Inlet, Water
4	Ejector
5	Ice Stripper
6	Support & Motor Assembly
7	Retainer, Thermostat
8	Thermostat (Not Available Order D7824706Q)
9	Screw, (2) 10-32 x 49/64
10	W11176463 Whirlpool Refrigerator Water Tube
12	WP67006531 Whirlpool Water Inlet Valve
14	ARM-SHUT
15	WPD7813010 Whirlpool Refrigerator Wire Harness
16	WP2256087 Whirlpool Refrigerator Bracket
17	WPL 4344167
18	WPW10289690 Whirlpool Ice Maker Cover
19	Module Assembly (Not Available Order D7824706Q)
21	12831101 Whirlpool Refrigerator Tube Clamp
26	WPA3223101 Whirlpool Refrigerator Insert PL
27	WPB5705307 Whirlpool Refrigerator Tube
29	67002816 Whirlpool Refrigerator Waterline Clip
32	WP98165 Whirlpool Screw
34	WP67001255 Whirlpool Ice Bucket
35	WPM0114003 Whirlpool Microwave Speed Clip Clamp
100	D7824706Q Whirlpool Refrigerator Ice Maker Assembly
