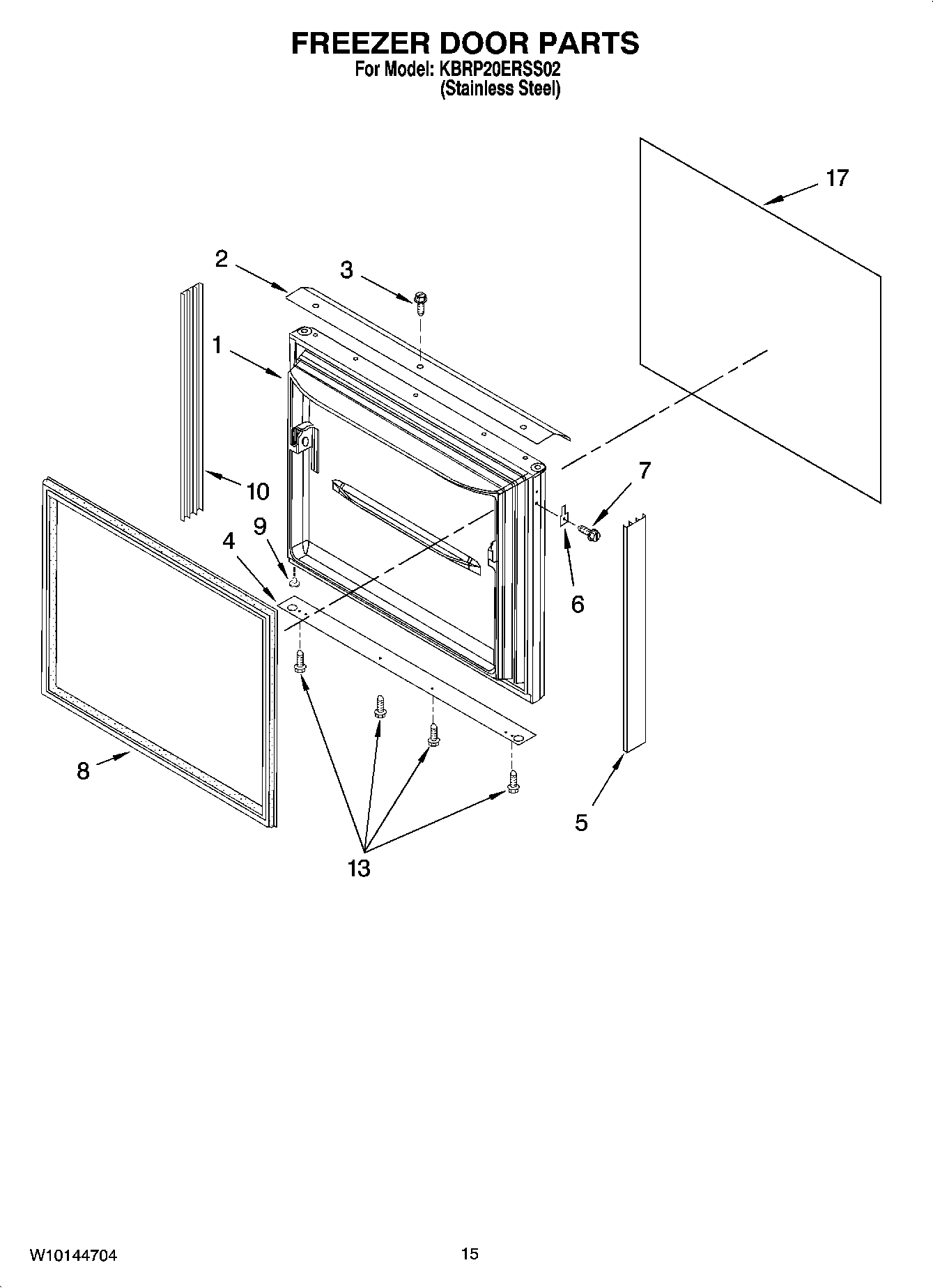

KBRP20ERSS02 08 – FREEZER DOOR PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

Position	Product
	350930 Whirlpool White Spray Paint
	Enamel, Black (1 Qt. Uncut)
	WPL 799833
	WPL 876029
	285006 Whirlpool Spray
	72032 Whirlpool Touch Up Paint Black
	ACCESSORY PARTS, STAINLESS STEEL CLEANER & POLISH
	Important: The spray paint is not to be used where the paint may make contact with the door gaskets.
	REFINISHING MATERIAL
	Miscellaneous
	TORX SCREW WREN
	WPL ARI153748A
	CEMENT, ALUMILASTIC (1 1/4 OZ.)
	TAPE, VINYL (3/4 X 108“)
	Torx Key
	72017 Whirlpool Appliance Touch-Up Paint White
	799344 Whirlpool Refrigerator Paint
	212643 Whirlpool Refrigerator Permagum Sealer
	350942 Whirlpool Spray Paint
	606755 Whirlpool Refrigerator Bag
	833938 Whirlpool Refrigerator Terminal
	WP505587 Whirlpool Refrigerator Sealer
	WP542638 Whirlpool Refrigerator Grease
	876370 Whirlpool Refrigerator Insulation
	WP503695 Whirlpool Refrigerator Sealer
1	Freezer Door
2	Handle
3	67006529 Whirlpool Refrigerator Screw
4	Trim, Door Bottom
5	Trim, Side (2)
6	67002451 Whirlpool Refrigerator Handle Clip Assembly
7	WP489128 Whirlpool Refrigerator Screw
8	W10436252 Whirlpool Door Gasket
9	67004838 Whirlpool Refrigerator Button Vent Plug
10	Trim, Door
13	12991101 Whirlpool Refrigerator Screw
17	Panel, Door Stainless Steel
