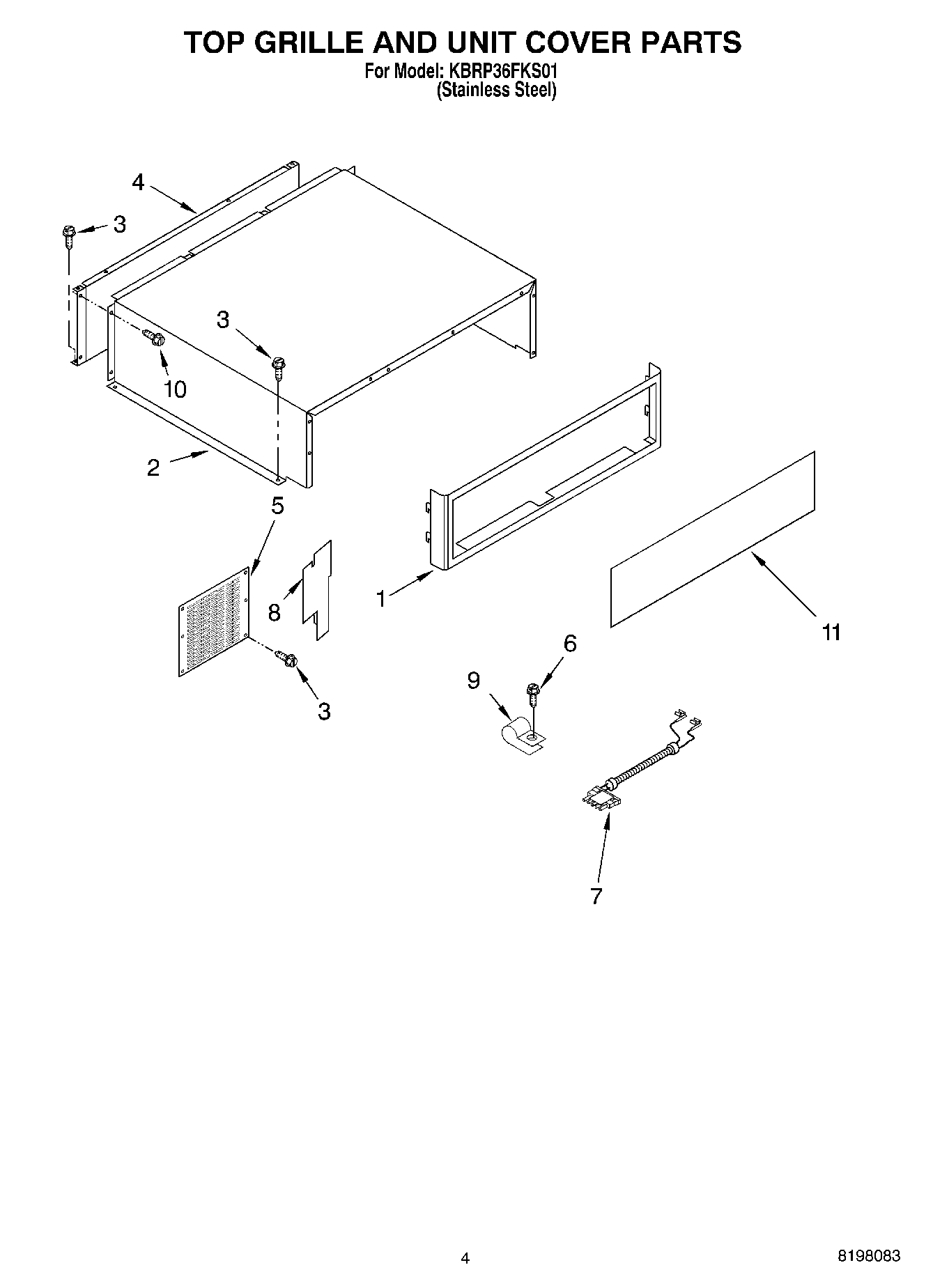

KBRP36FKS01 03 – TOP GRILLE AND UNIT COVER

Written by

Products

Position	Product
1	Top Grille Assembly
2	Cover, Unit
3	WP489069 Whirlpool Compactor Screw
4	2256466 Whirlpool Refrigerator Unit Cover
5	Guard, Wiring
6	WP965173 Whirlpool Dishwasher Screw
7	Wire Assembly
8	Baffle-Air, Condenser
9	489348 Whirlpool Refrigerator Tube Clamp
10	SCREW
11	Panel, Insert
