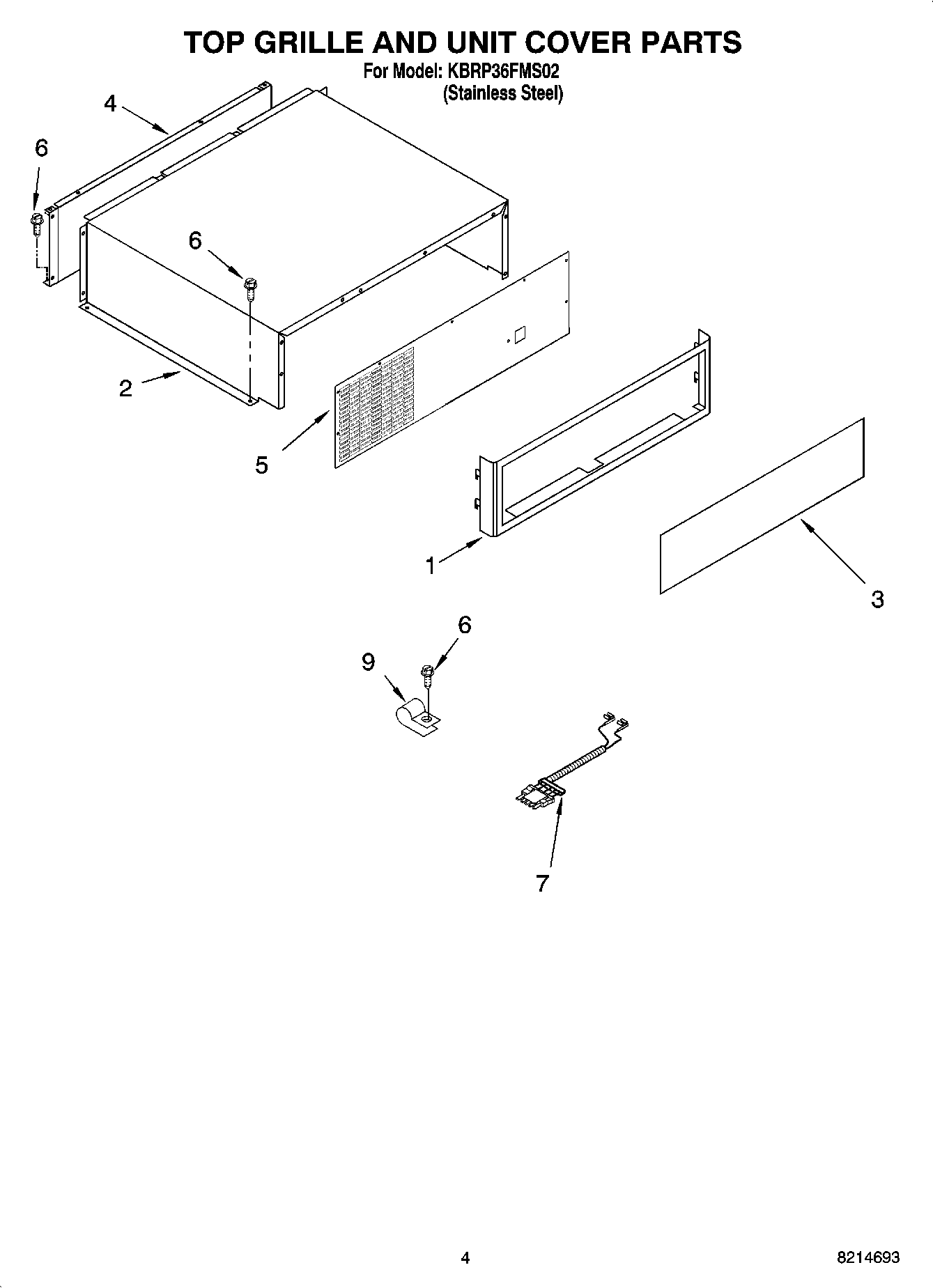

KBRP36FMS02 03 – TOP GRILLE AND UNIT COVER PARTS

Written by

Products

Position	Product
1	Top Grille Assembly (Stainless Steel)
2	Cover, Unit
3	Panel, Insert
4	2256466 Whirlpool Refrigerator Unit Cover
5	Front, Unit Cover
6	WP965173 Whirlpool Dishwasher Screw
7	Wire Assembly
9	489348 Whirlpool Refrigerator Tube Clamp
