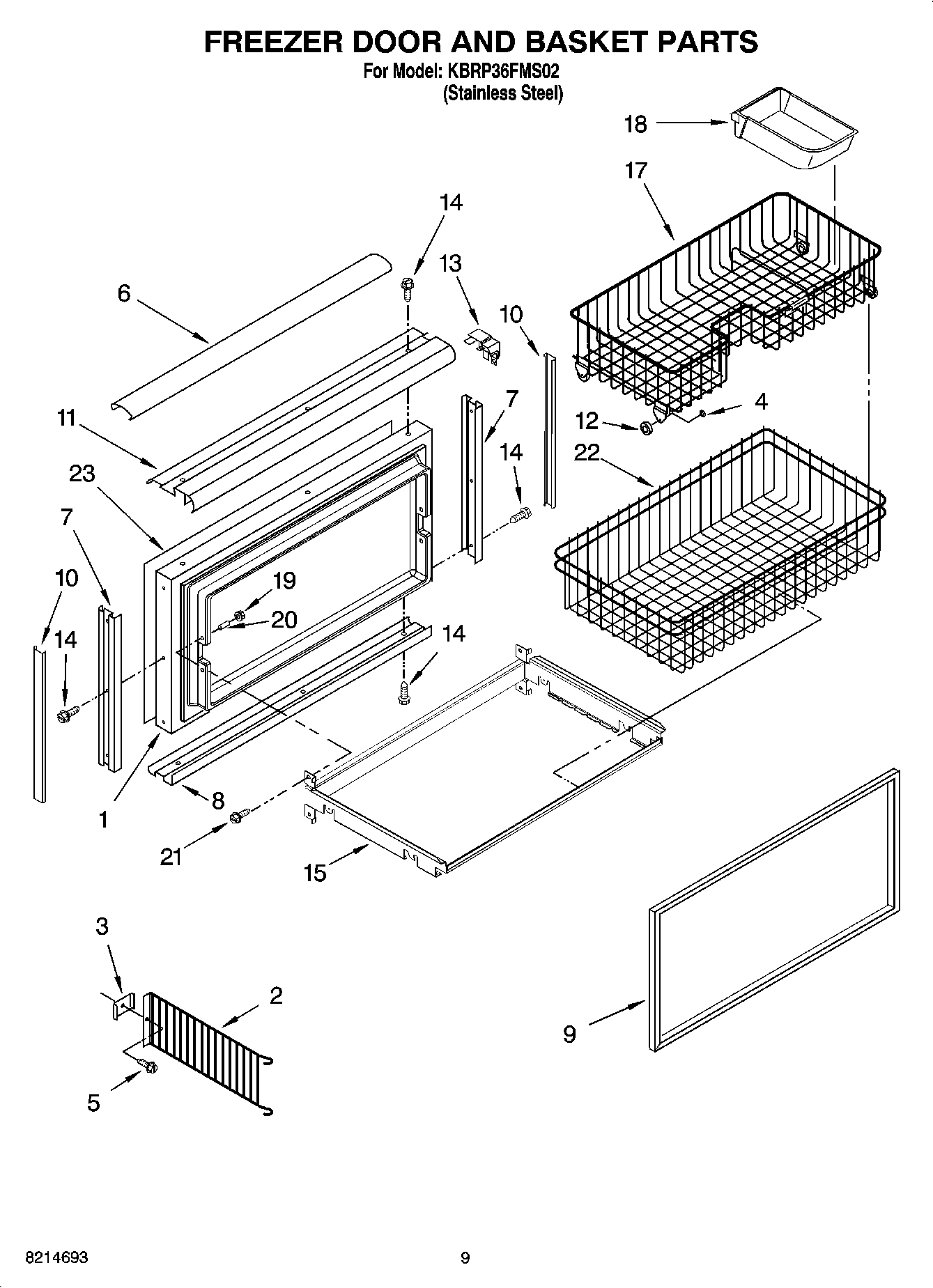

KBRP36FMS02 06 – FREEZER DOOR AND BASKET PARTS

Products

Position	Product
1	Freezer Door Panel (Includes Item 9)
2	Divider, Basket
3	Clamp, Divider
4	2207415 Whirlpool Refrigerator Nut
5	Screw
6	2006329 Whirlpool Refrigerator Cover Trim
7	Door Trim, Side
8	Door Trim, Btm
9	2302710 Whirlpool Refrigerator Door Gasket
10	2006324 Whirlpool Refrigerator Cover Trim
11	Handle, Door (Stainless Steel)
12	W11214482 Whirlpool Refrigerator Roller
13	2207457 Whirlpool Refrigerator Door Trim
14	WP8281250 Whirlpool Refrigerator Screw
15	Bracket Assembly, Freezer Basket
17	Basket, Upper
18	Pan, Ice Cube
19	WP2207454 Whirlpool Refrigerator Nut
20	Bushing
21	Screw
22	Basket, Freezer Lower
23	Panel, Insert
