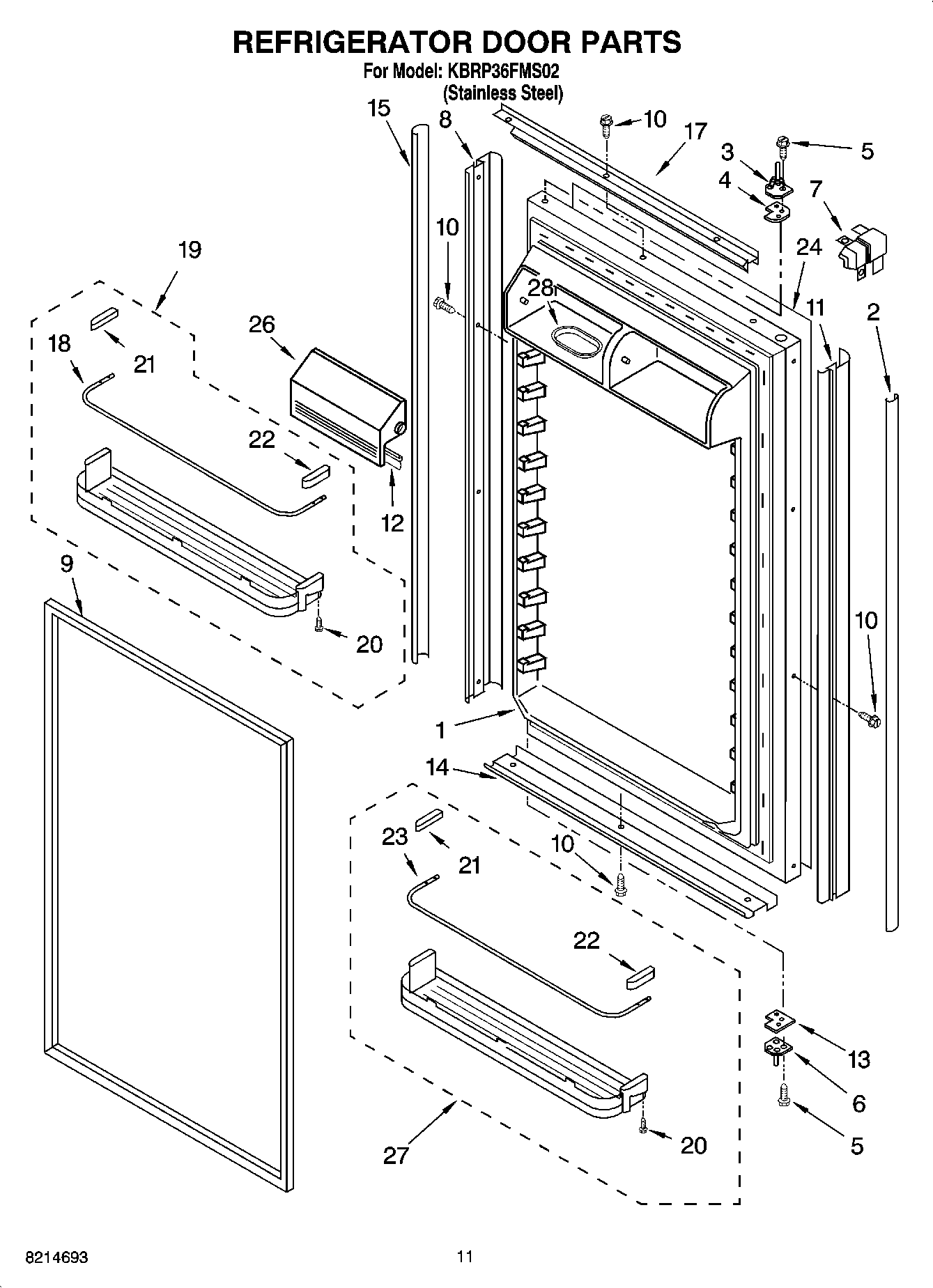

KBRP36FMS02 07 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1	Refrigerator Door (Includes Item 9)
2	Trim Cover, Handle
3	Hinge Assembly, Top
4	Spacer-Hinge, Top
5	W11474472 Whirlpool Screw
6	Hinge Assembly, Bottom
7	2207457 Whirlpool Refrigerator Door Trim
8	Door Trim, Side
9	2302709 Whirlpool Refrigerator Door Gasket
10	WP8281250 Whirlpool Refrigerator Screw
11	Handle, Door (Stainless Steel)
12	Gasket (2)
13	SPACER, HINGE (BOTTOM)
14	Door Trim, Btm
15	Trim Cover, Side
17	Door Trim, Top
18	Tube, Door Shelf
19	Shelf, Door (2)
20	WP681249 Whirlpool Screw Assembly
21	End Cap, Left
22	End Cap, Right
23	Tube, Door Shelf (Gallon)
24	Panel, Insert
26	Door, Utility Bin (2) (Includes Item 12)
27	Door Shelf, Gallon
28	Butter Tray
