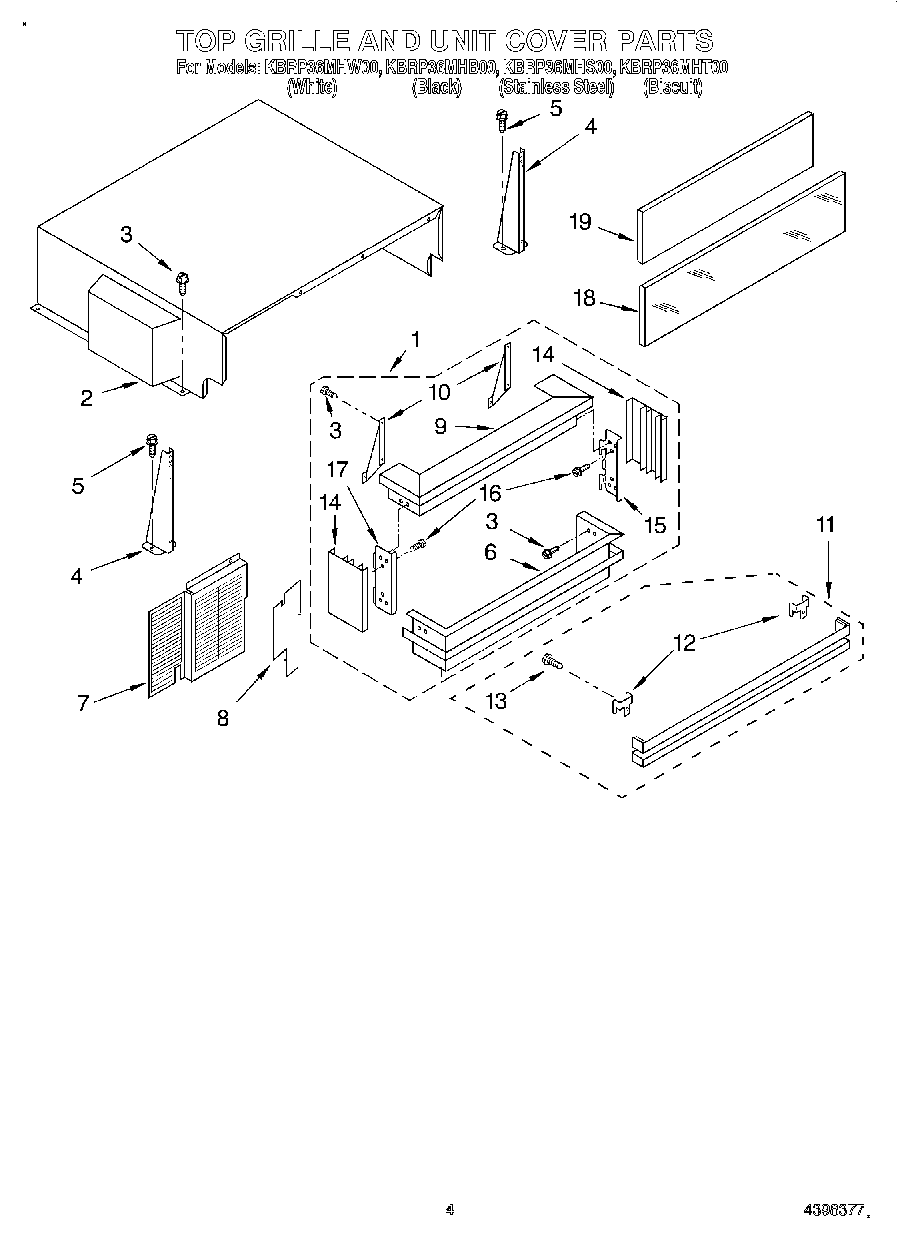

KBRP36MHB00 03 – TOP GRILLE AND UNIT COVER

Products

PositionProduct
1Top Grille Assembly (White)
1Top Grille Assembly (Black)
1Top Grille Assembly (Stainless Steel)
1Top Grille Assembly (Biscuit)
2Cover, Unit
4Grille, Bracket
5WP8204624 Whirlpool Bolt
6Trim-Lower, Panel (Black)
6Trim-Lower, Panel (Biscuit)
6Trim-Lower, Panel (Stainless Steel)
6Trim-Lower, Panel (White)
7Guard, Compressor Wiring
8Baffle-Air, Condenser
9Trim-Top, Panel (White)
9Trim-Top, Panel (Stainless Steel)
9Trim-Top, Panel (Black)
9Trim-Top, Panel (Biscuit)
10Bracket, Trim Panel
11Louver, Vent
11Louver, Vent (Biscuit)
11Louver, Vent (Black)
11Louver, Vent (White)
12Louver, Bracket
13WPW10141625 Whirlpool Refrigerator Screw Assembly
14Trim-Side, Panel (Biscuit)
14Trim-Side, Panel (Black)
14Trim-Side, Panel (White)
14Trim-Side, Panel (Stainless Steel)
15Bracket-Panel, Right Side
16WP3196170 Whirlpool Screw
17Bracket-Panel, Left Side
18Decorative Panel, Acrylic (White)
18Decorative Panel, Acrylic (Black)
18Decorative Panel, Acrylic (Biscuit)
18Decorative Panel, Acrylic (Stainless Steel)
19Board, Filler
