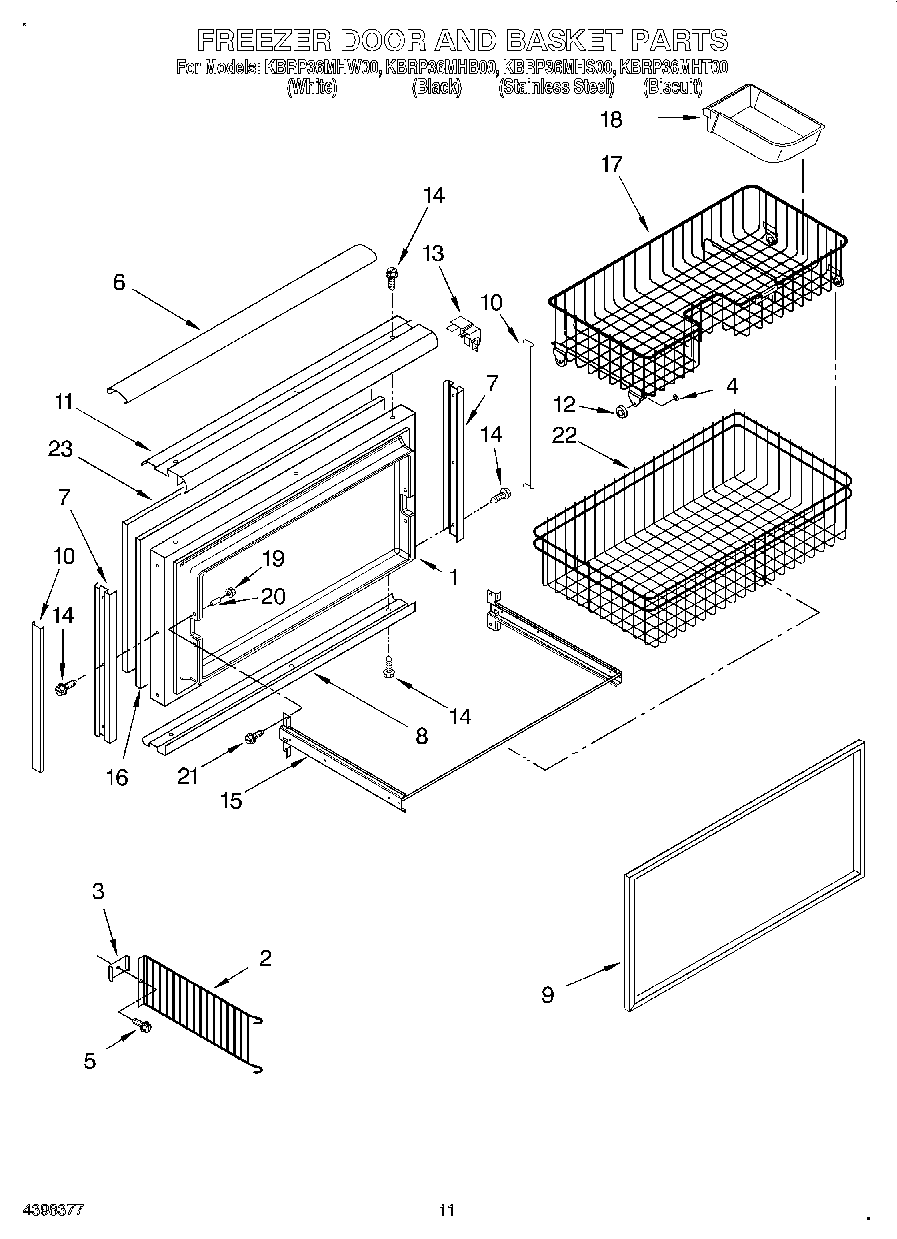

KBRP36MHB00 07 – FREEZER DOOR AND BASKET

Products

Position	Product
1	Freezer Door Panel (Includes Item 9)
2	Divider, Basket
3	Clamp, Divider
4	2207415 Whirlpool Refrigerator Nut
5	WPW10141625 Whirlpool Refrigerator Screw Assembly
6	Trim Cover, Handle (Black)
6	2006329 Whirlpool Refrigerator Cover Trim
6	Cover-Trim, Handle (White)
6	Cover-Trim, Handle (Biscuit)
7	Door Trim, Side (Black)
7	Trim-Door, Side (White)
7	Trim-Door, Side (Biscuit)
7	Door Trim, Side
8	Door Trim, Btm
8	Trim-Door, Bottom (Biscuit)
8	Trim-Door, Bottom (White)
8	Door Trim, Bottom (Black)
9	Door Gasket, Magnetic
10	2006324 Whirlpool Refrigerator Cover Trim
10	Cover-Trim, Side (Biscuit)
10	Cover-Trim, Side (White)
10	Trim Cover, Side (Black)
11	Handle, Door (Stainless Steel)
11	Handle, Door (White)
11	Handle, Door (Biscuit)
11	Handle, Door (Black)
12	W11214482 Whirlpool Refrigerator Roller
13	Corner Trim (White)
13	Corner Trim (Black)
13	Corner Trim (Biscuit)
13	2207457 Whirlpool Refrigerator Door Trim
14	WP488729 Whirlpool Refrigerator Door Screw
15	Bracket, Assembly Freezer Basket
16	Filler, Board
17	Basket, Upper
18	Pan, Ice Cube
19	WP2207454 Whirlpool Refrigerator Nut
20	Bushing
21	Screw
22	Basket, Freezer Lower
23	Panel, Acrylic (White)
23	Panel, Acrylic (Black)
23	Panel, Acrylic (Biscuit)
23	Panel, Acrylic (Stainless Steel)
