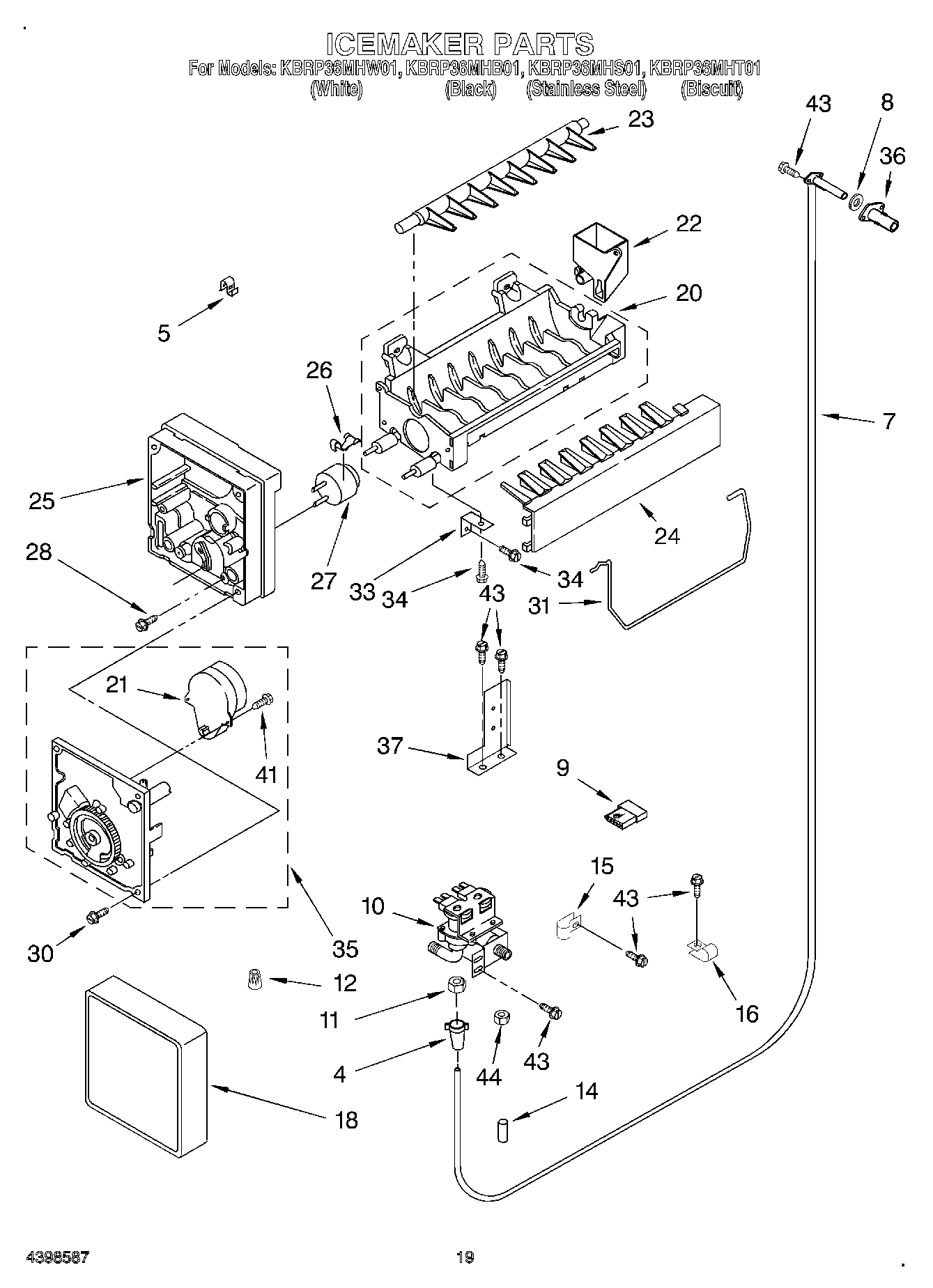

KBRP36MHB01 11 – ICEMAKERadmin2025-04-26T09:38:23+00:00KBRP36MHB01 11 – ICEMAKER ProductsPositionProduct44387491 Whirlpool Refrigerator Insert5WP628379 Whirlpool Refrigerator Clip7Water Inlet Tube Assembly8WP1106508 Whirlpool Refrigerator Gasket9Connector10Valve, Solenoid11WP627018 Whirlpool Refrigerator Nut12Wire Connector14Plug, Water Valve15489348 Whirlpool Refrigerator Tube Clamp16488946 Whirlpool Air Conditioner Clamp18WPW10289690 Whirlpool Ice Maker Cover20WPW10190929 Whirlpool Refrigerator Ice Maker Mold20WP542638 Whirlpool Refrigerator Grease21W10190935 Whirlpool Refrigerator Icemaker Motor Module Assembly22WP628356 Whirlpool Refrigerator Fill Cup23WP627843 Whirlpool Refrigerator Ejector Arm24WP2182124 Whirlpool Refrigerator Stripper Arm25WP2195914 Whirlpool Refrigerator Ice Maker Housing26WP2315522 Whirlpool Refrigerator Clip27CEMENT, ALUMILASTIC (1 1/4 OZ.)27WP627985 Whirlpool Icemaker Cycling Thermostat288533917 Whirlpool Refrigerator Screw30WP681249 Whirlpool Screw Assembly31Shut Off Arm33WP2256087 Whirlpool Refrigerator Bracket34WP489478 Whirlpool Refrigerator Screw36Heater, Fill Tube37Water Valve Mounting Bracket41489136 Whirlpool Refrigerator Screw43W11624204 Whirlpool Screw44Nut, Compression1004317943 Whirlpool Refrigerator Ice Maker Assembly
