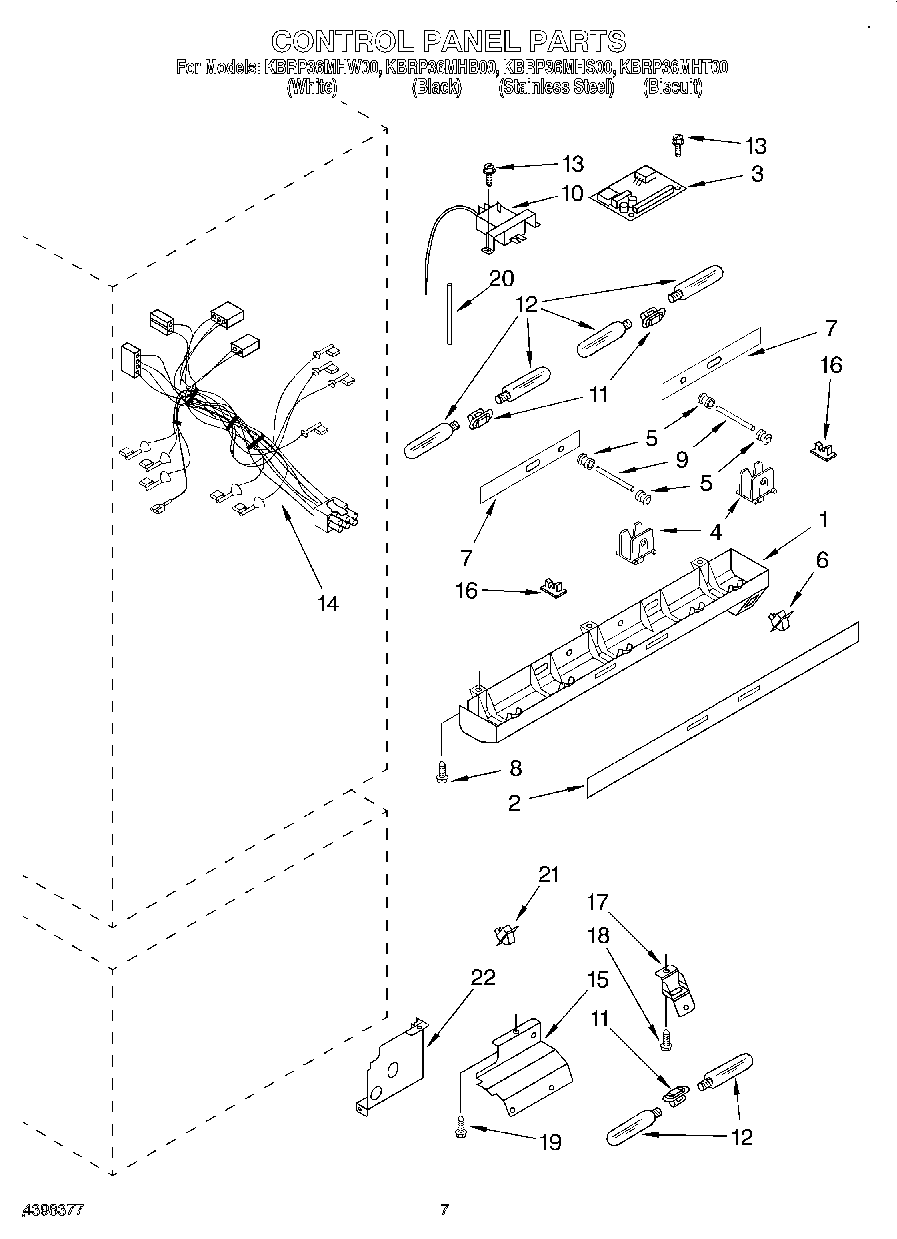

KBRP36MHS00 05 – CONTROL PANEL

Products

Position	Product
1	Control Panel
2	Overlay, Control Panel
3	Circuit Board
4	Slide, Control
5	Grommet, Light Fiber
6	W11384469 Whirlpool Door Switch
7	Heat Shield, Lamp
8	Screw (3)
9	Fiber Optic
10	Thermostat
11	Socket, Light
12	WP548049 Whirlpool Refrigerator Light Bulb
13	2006254 Whirlpool Refrigerator Screw
14	Harness, Control Box
15	Channel, Wiring Freezer Light
16	CLIP, WIRING
17	Bracket, Freezer Light
18	WP489128 Whirlpool Refrigerator Screw
19	W11624204 Whirlpool Screw
20	Tube-Barrier, Thermostat
21	W11457217 Whirlpool Refrigerator Rocker Switch Combination
22	Wiring Cover, Icemaker
