KBRP36MHS00 10 – LOWER UNIT AND TUBE

KBRP36MHS00 10 – LOWER UNIT AND TUBE

Written by

in

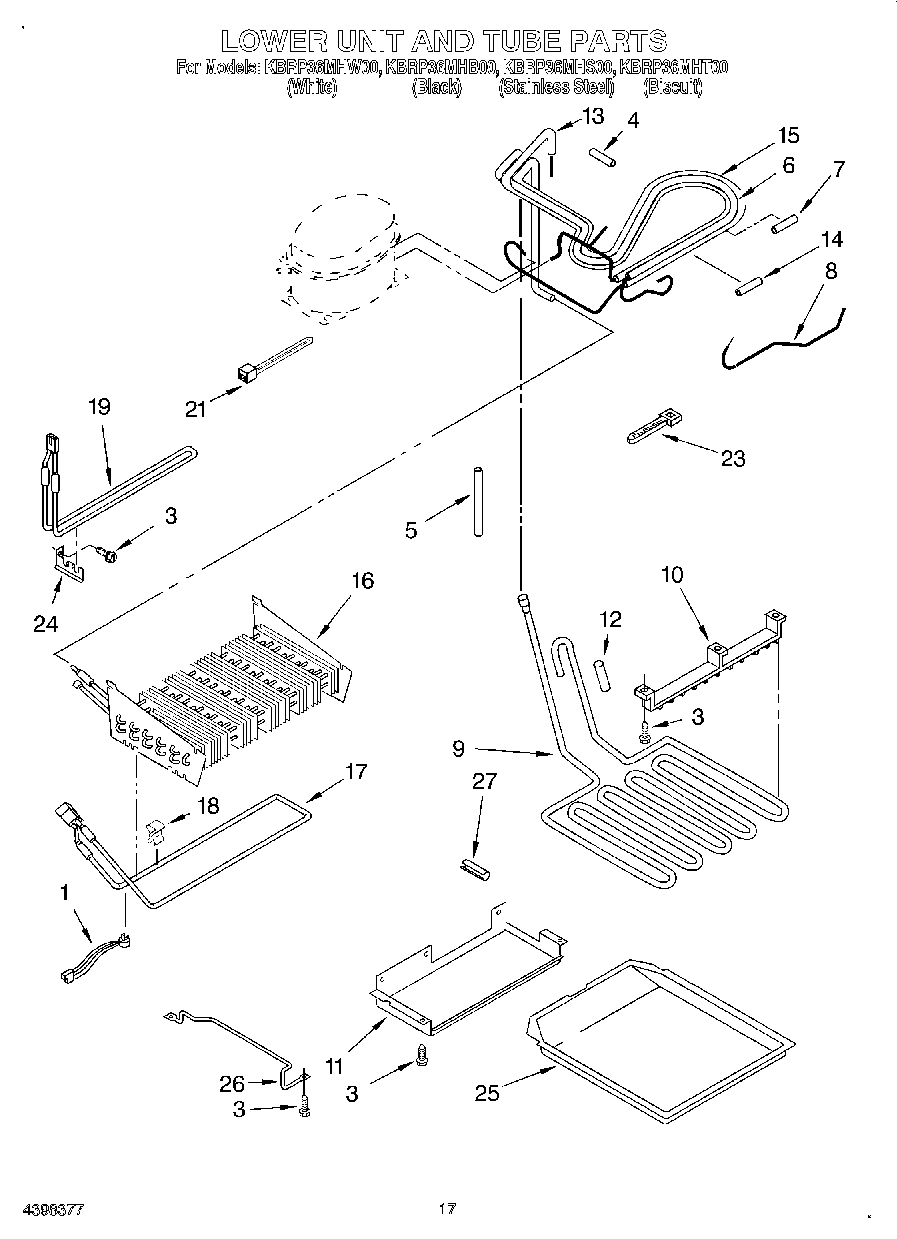

KBRP36MHS00 10 – LOWER UNIT AND TUBE

Products

PositionProduct
1Defrost Bi-Metal
3W11624204 Whirlpool Screw
5WP2002171 Whirlpool Refrigerator Sleeve
6Condenser Inlet Tube
8Tube, Connect (Drier)
9WP2004545 Whirlpool Refrigerator Heater Pan
10Hanger, Heater
11Shield, Drain Pan
12Sleeve
13Tube, Discharge
15Heat Exchanger
16Evaporator (Also Order Item 15)
17Heater, Defrost Front
18Clamp, Heater (2)
19Heater, Defrost Rear
21WPW10339879 Whirlpool Wire Tie
23Strap
24Support, Heater
25WP2001264 Whirlpool Refrigerator Drip Pan
26Bracket, Drain Pan (Right)
26Bracket, Drain Pan (Left)
27WP2158826 Whirlpool Refrigerator Dampener
