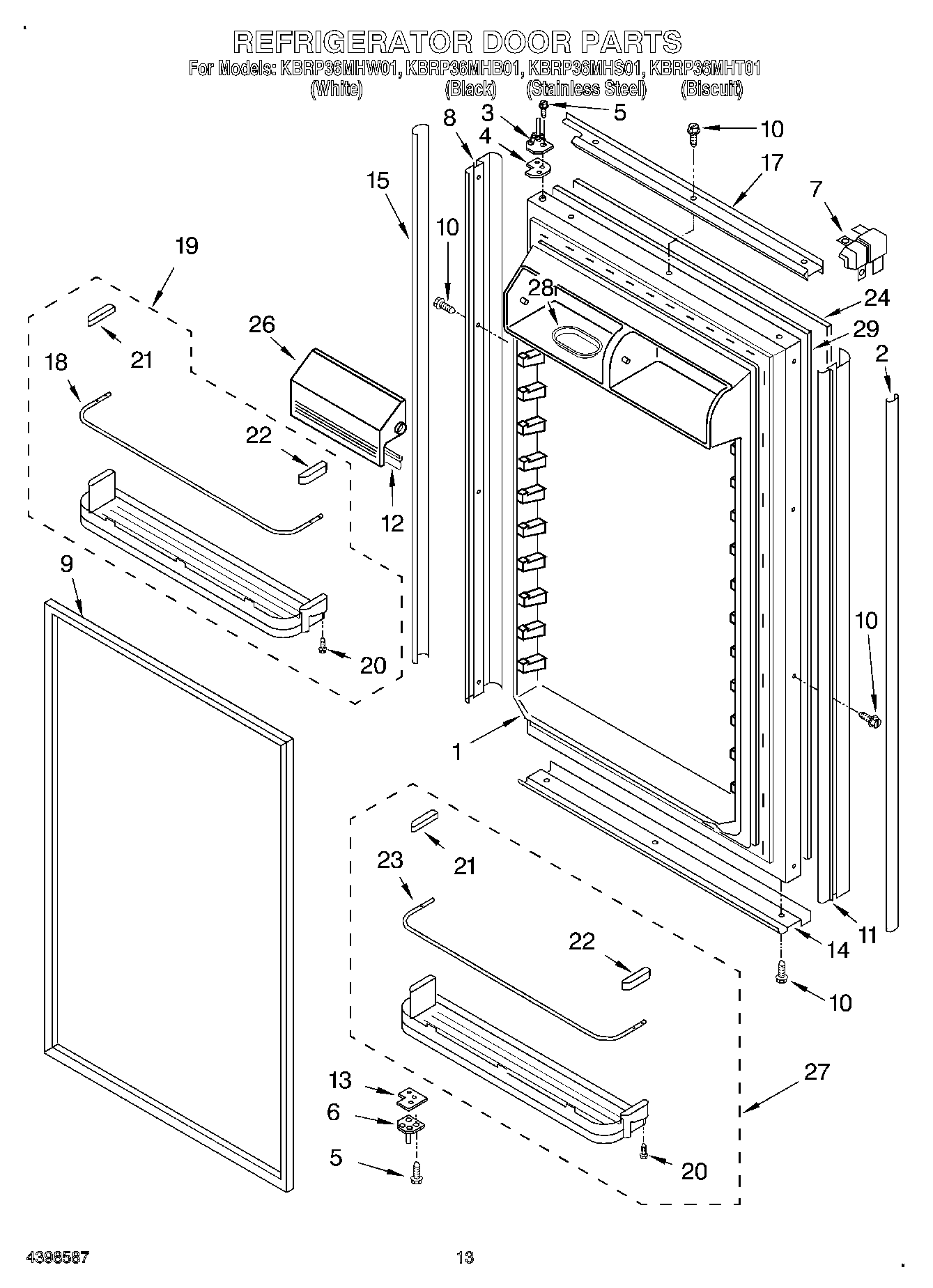

KBRP36MHS01 08 – REFRIGERATOR DOOR

Products

Position	Product
1	Refrigerator Door (Includes Item 9)
2	Trim Cover, Handle
2	Cover-Trim, Handle (Biscuit)
2	Cover-Trim, Handle (White)
2	Trim Cover, Handle (Black)
3	Hinge Assembly, Top
4	Spacer-Hinge, Top
5	W11474472 Whirlpool Screw
6	Hinge Assembly, Bottom
7	Corner Trim (White)
7	2207457 Whirlpool Refrigerator Door Trim
7	Corner Trim (Black)
7	Corner Trim (Biscuit)
8	Door Trim, Side
8	Trim-Door, Side (Black)
8	Trim-Door, Side (Biscuit)
8	Trim-Door, Side (White)
9	Door Gasket, Magnetic
10	WP488729 Whirlpool Refrigerator Door Screw
11	Handle, Door (Stainless Steel)
11	Handle, Door (Black)
11	Handle, Door (Biscuit)
11	Handle, Door (White)
12	Gasket (2)
13	Spacer-Hinge, Bottom
14	Trim-Door, Bottom (Biscuit)
14	Trim-Door, Bottom (Black)
14	Trim-Door, Bottom (White)
14	Door Trim, Btm
15	Trim Cover, Side (Black)
15	Trim Cover, Side
15	Cover-Trim, Side (White)
15	Cover-Trim, Side (Biscuit)
17	Trim-Door, Top (Biscuit)
17	Trim-Door, Top (White)
17	Trim-Door, Top (Black)
17	Door Trim, Top
18	Tube, Door Shelf
19	Shelf, Door (2)
20	WP681249 Whirlpool Screw Assembly
21	End Cap, Left
22	End Cap, Right
23	Tube, Door Shelf (Gallon)
24	WPL 2006425
24	WPL 2006427
24	WPL 2006429
24	WPL 2204580
26	Door, Utility Bin (2) (
27	Door Shelf, Gallon
28	Butter Tray
29	WPL 2006432
