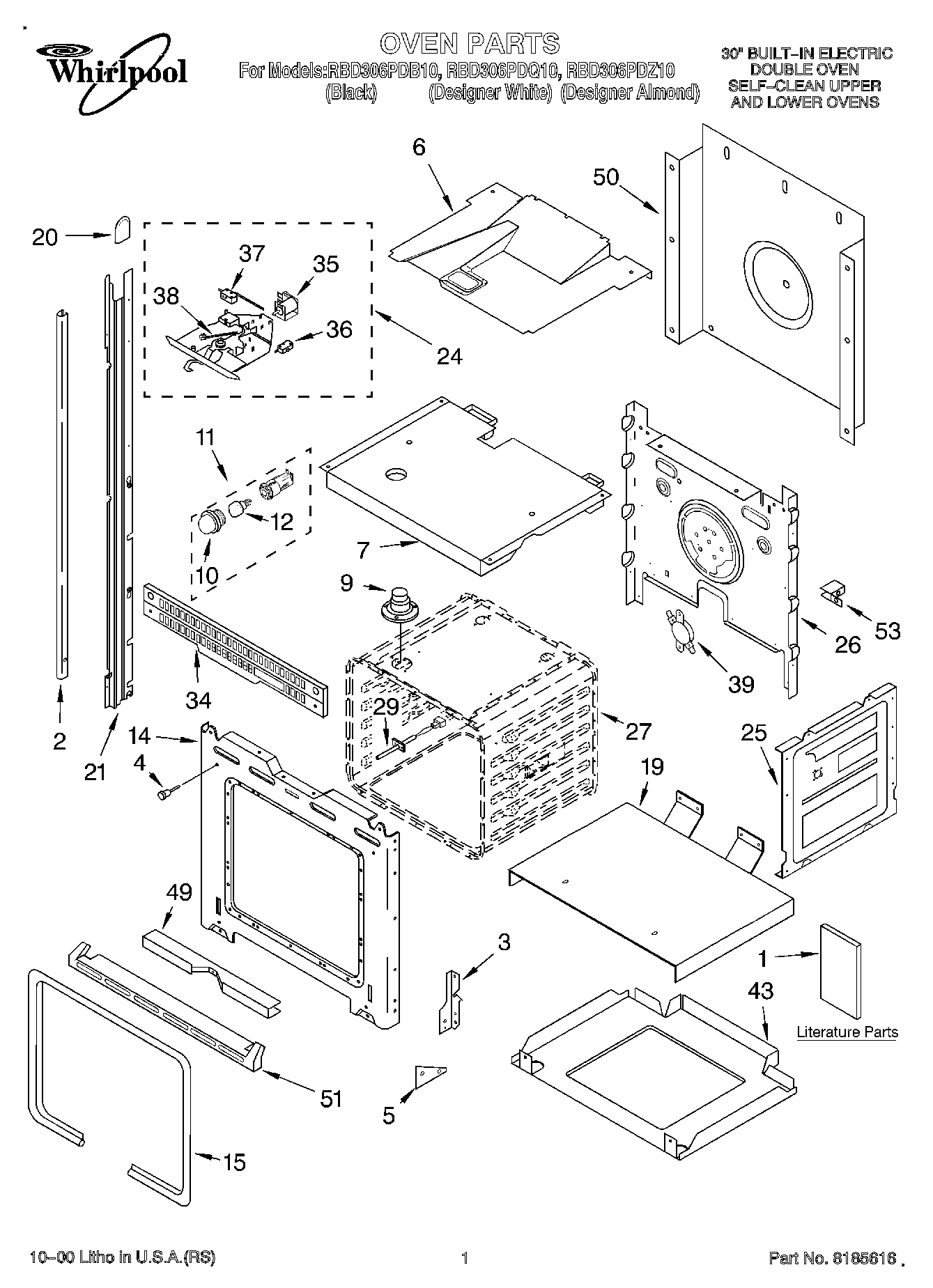

KBRP36MHT00 01 – OVEN, LITERATURE

Products

Position	Product
1	Safer Cooking Tips
1	Literature Parts (Tech Sheet)
1	Literature Parts (Use & Care Guide (Oven))
1	Literature Parts (Installation Instructions)
2	Trim, Side (LH Black)
2	Trim, Side (Right Hand) (White Model)
2	Trim, Side (RH Black)
2	Trim, Side (Right Hand) (Almond Model)
2	Trim, Side (Left Hand)) (White Model)
2	Trim, Side (Left Hand)) (Almond Model)
2	Trim, Side (White)
2	WP8281236 Whirlpool Screw
3	Reciever, Hinge (Left Hand)
3	Reciever, Hinge (Right Hand)
4	4448520 Whirlpool Oven Bumper
5	WP4455509 Whirlpool Support Bracket
6	Divider, Vent
7	Top, Chassis
9	W10861715 Whirlpool Vent Tube
10	Lens, Light
11	WPW10734065 Whirlpool Light
12	WP4173175 Whirlpool Light Bulb
14	Screw
14	Frame, Front
14	WP4450118 Whirlpool Nut
15	W11675844 Whirlpool Oven Gasket
19	Support, Insulation
20	Cap, Spacer
21	WP4448444 Whirlpool Grommet
21	814374 Whirlpool Oven Rail Mount
21	814373 Whirlpool Oven Rail Mount
24	Latch Assembly
25	Side, Chassis (R.H. & L.H.)
26	Back, Chassis
27	Liner, Oven (Not a Serviceable Part)
29	WPW10131825 Whirlpool Oven Temperature Sensor
34	Vent, Center
35	Solenoid
36	Microswitch N.C.
37	Microswitch
38	Spring, Latch
39	WP9759242 Whirlpool Thermostat
39	WP9759243 Whirlpool Thermostat
43	WPL 4455530
49	WP4449154 Whirlpool Screw
49	WP4448933 Whirlpool Retainer
50	WP4451747 Whirlpool Rear Cover
51	Trim, Bottom (Screw)
51	WPL 4448478
51	WPL 4448477
51	WPL 4448862
53	W11684730 Whirlpool Insulation
53	WPL 4449845
53	WP4449809 Whirlpool Screw
53	WPL 4450365
