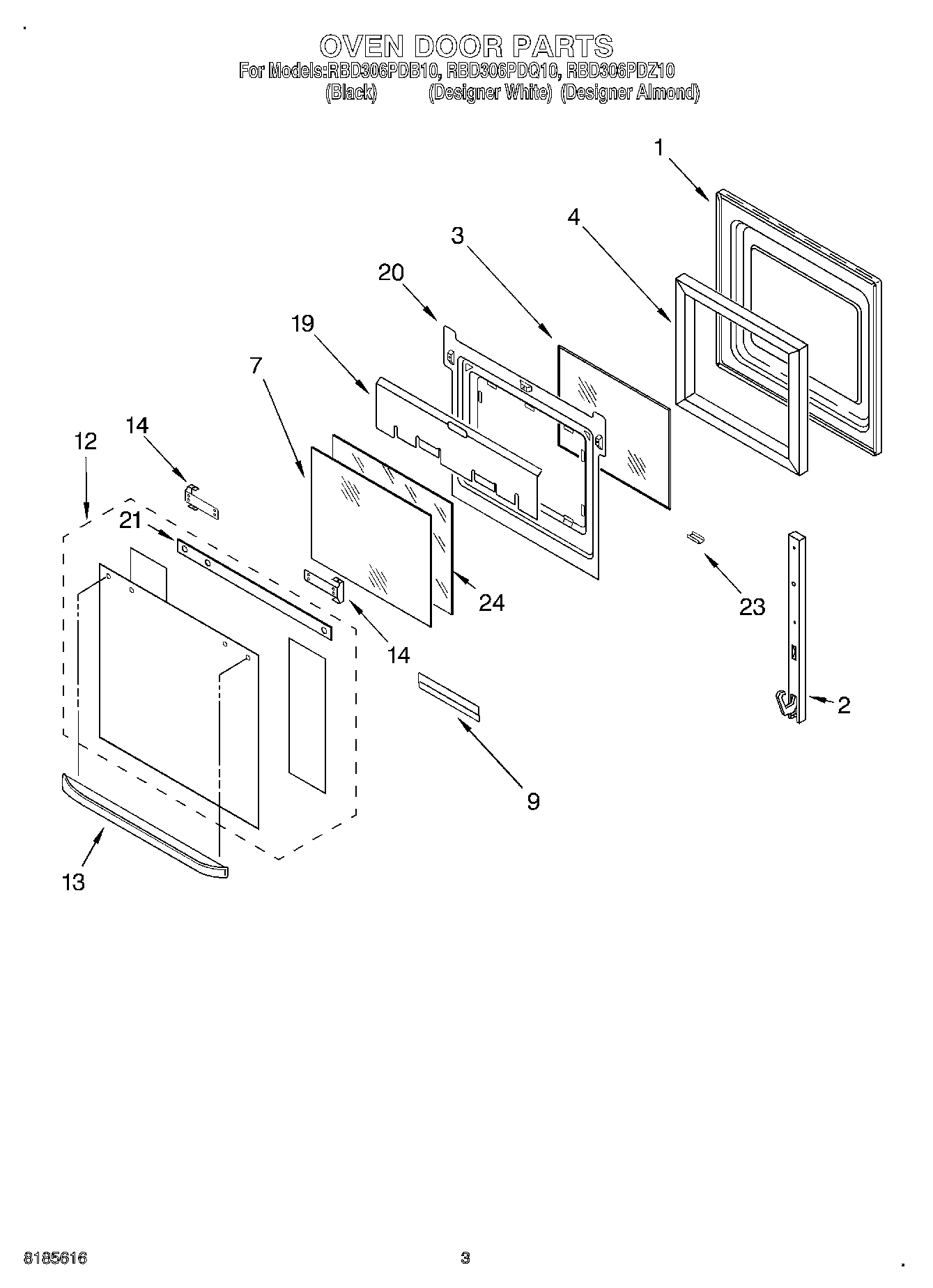

KBRP36MHW00 02 – OVEN DOOR

Products

Position	Product
1	WP9759413 Whirlpool Door Liner
2	WP4449743 Whirlpool Screw
2	WP4455525 Whirlpool Oven Door Hinge
3	WP4449259 Whirlpool Glass Window
4	WP4451722 Whirlpool Door Insulation Assembly
7	WP4449263 Whirlpool Inner Door Glass
9	Retainer, Glass
12	Assy, Door Glass (Almond Model)
12	Door Glass, Assy (White Model)
12	WP9759641 Whirlpool Outer Door Glass
13	Door Handle (White Model)
13	Door Handle (Black Model)
13	Door Handle (Almond Model)
14	Bracket, Handle
14	Screw
19	Shield, Heat
20	WP4449809 Whirlpool Screw
20	Retainer, Glass
21	Seal, Door Top
23	Clip, Retainer (White Model)
23	Clip, Retainer (Black Model)
23	Retainer, Clip (Almond Model)
24	Glass, Inner
