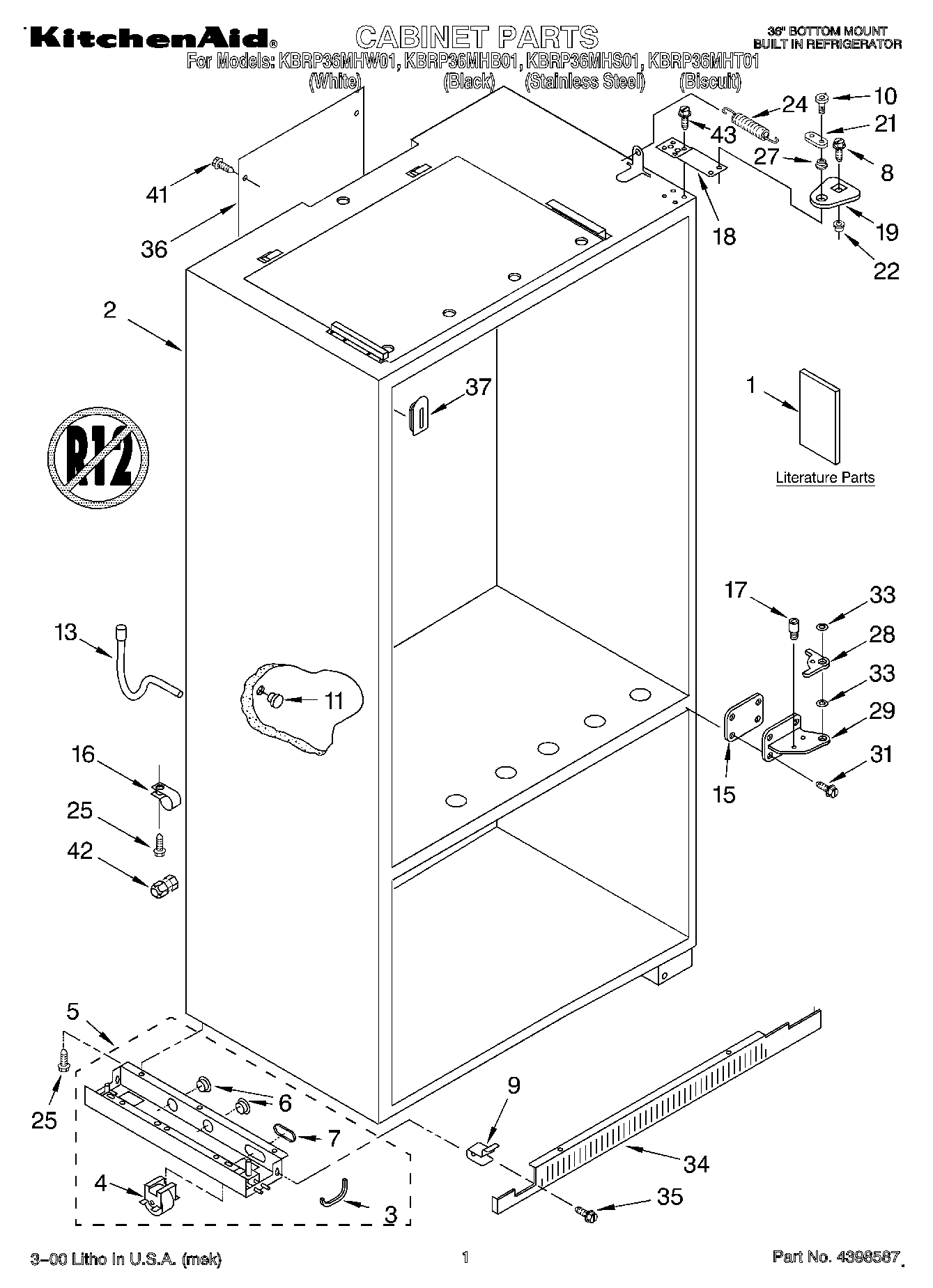

KBRP36MHW01 01 – CABINET, LITERATUREadmin2025-04-26T09:38:00+00:00KBRP36MHW01 01 – CABINET, LITERATURE
Products
| Position | Product |
|---|
| 1 | Modular Icemaker Service Sheet |
| 1 | LITERATURE PARTS (Use & Care Guide) |
| 1 | LITERATURE PARTS (Energy Label) |
| 1 | LITERATURE PARTS (Installation Instructions) |
| 1 | LITERATURE PARTS (Service & Wiring Sheet) |
| 2 | Cabinet (Not A Serviceable Part) |
| 3 | Grommet, Crossover Tube |
| 4 | WPW10138054 Whirlpool Refrigerator Cabinet Roller |
| 5 | W10860229 Whirlpool Refrigerator Support |
| 5 | W10860448 Whirlpool Refrigerator Support |
| 6 | Grommet, Wiring |
| 7 | Grommet, Flexible |
| 8 | Screw |
| 9 | Mounting Bracket, Grill |
| 10 | Screw |
| 11 | Cap, Grommet |
| 13 | Tube, Drain Condensate |
| 15 | 2207470 Whirlpool Refrigerator Hinge Shim |
| 16 | 488946 Whirlpool Air Conditioner Clamp |
| 17 | Screw, Door Stop |
| 18 | 2257644 Whirlpool Refrigerator Door Hinge |
| 19 | Cam-Closer, Door |
| 21 | Closer-Extension, Door |
| 22 | Bushing |
| 24 | WP2004517 Whirlpool Refrigerator Spring |
| 25 | W11624204 Whirlpool Screw |
| 27 | Bushing-Arm, Extension |
| 28 | W10188434 Whirlpool Refrigerator Hinge Gap |
| 29 | 2005101 Whirlpool Refrigerator Bottom Hinge |
| 31 | W11474472 Whirlpool Screw |
| 33 | WP2006346 Whirlpool Refrigerator Washer |
| 34 | Grille Base, Front (White) |
| 34 | Grille Base, Front (Black) |
| 35 | Screw |
| 36 | Cover, Rear |
| 37 | Grommet, Wiring |
| 41 | WP1163283 Whirlpool Air Conditioner Screw |
| 42 | WP4211117 Whirlpool Refrigerator Connector |
| 43 | WP8204624 Whirlpool Bolt |
