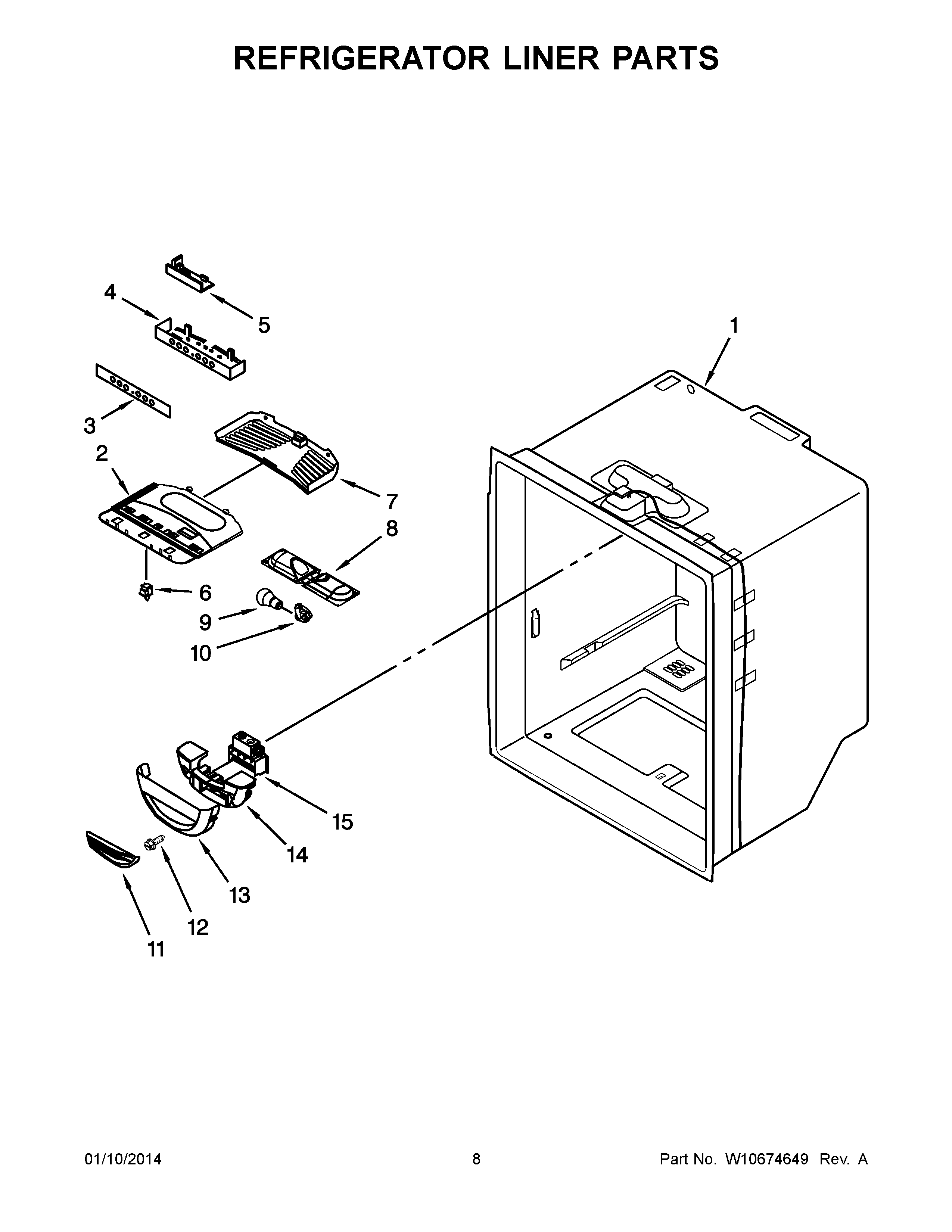

KBRS19KCMS00 05 – REFRIGERATOR LINER PARTS

KBRS19KCMS00 05 – REFRIGERATOR LINER PARTS

Written by

in

KBRS19KCMS00 05 – REFRIGERATOR LINER PARTS

Products

PositionProduct
NICABINET (NOT A SERVICEABLE PART)
NIW11619328 Whirlpool Wire Harness
2W10464757 Whirlpool Refrigerator Housing
3W10593588 Whirlpool Refrigerator Overlay
4WPW10464769 Whirlpool Refrigerator Housing
5WPW10503278 Whirlpool Refrigerator Electronic Control Board
6W11384469 Whirlpool Door Switch
7W11284721 Whirlpool Refrigerator Cover
8W10443023 Whirlpool Refrigerator Housing
9W11338583 Whirlpool Light Bulb
10W11447232 Whirlpool Refrigerator Socket
1167003900 Whirlpool Refrigerator Insert Damper Cover
12WP400021-1 Whirlpool Screw
13WP12806701 Whirlpool Refrigerator Box Cover
14INSULATION
15WPW10594330 Whirlpool Refrigerator Control
