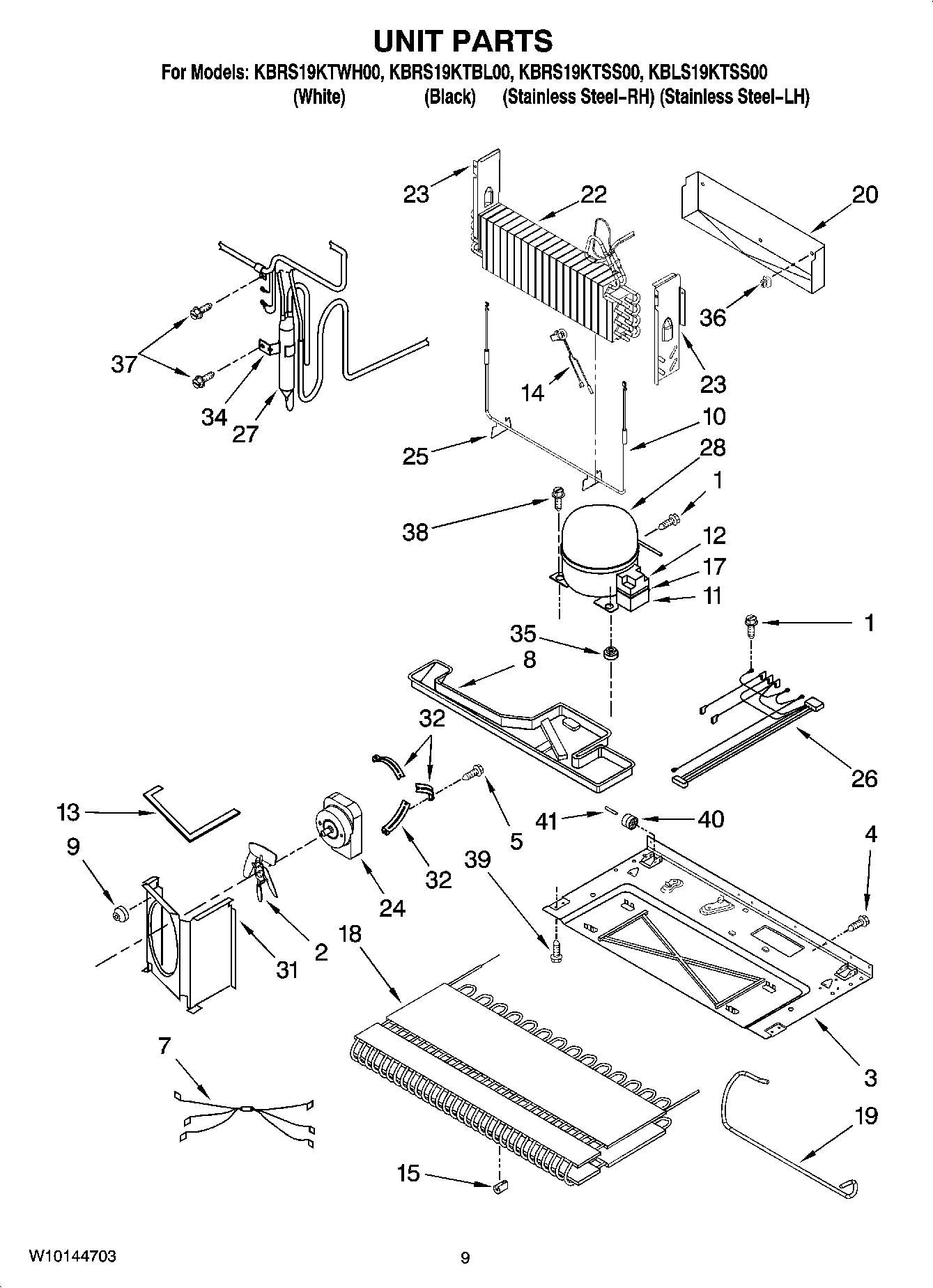

KBRS19KTBL00 05 – UNIT PARTS

Products

Position	Product
2	W10156818 Whirlpool Refrigerator Fan Blade
3	Basepan
4	12992301 Whirlpool Refrigerator Screw
5	WP67004954 Whirlpool Refrigerator Screw
7	Harness, Evap Heater
8	Drain Pan
9	Grommet (3)
10	WP67002135 Whirlpool Refrigerator Defrost Heater
11	Capacitor (See Item 12)
12	W10613606 Whirlpool Refrigerator Start Device Relay Overload
13	WP854334 Whirlpool Air Conditioner Sealing Strip
14	WP67003426 Whirlpool Refrigerator Thermostat
15	67005680 Whirlpool Refrigerator Condenser Grommet
17	Clip, Capacitor
18	67006133 Whirlpool Refrigerator 30" Condenser BM
19	Tube, Discharge
20	W11337775 Whirlpool Drip Tray
22	EVAPORATOR
23	Dam (Right Side)
23	Dam (Left Side)
24	Motor, Fan
25	W11673433 Whirlpool Clip
26	13060302 Whirlpool Refrigerator Wire Harness
27	WPW10143759 Whirlpool Dryer Filter
28	W10160407 Whirlpool Refrigerator Compressor
31	Shroud
32	WP67004953 Whirlpool Refrigerator Bracket
34	10547003 Whirlpool Refrigerator Dryer Clip
35	67003493 Whirlpool Refrigerator Compressor Grommet
36	CLIP, EVAP (2)
37	WP33001882 Whirlpool Screw
38	12846902 Whirlpool Refrigerator Screw
39	Screw (4)
40	WP67005149 Whirlpool Roller
41	Following Parts Not Illustrated and Optional Parts Not Included
41	VALVE, ACCESS (5/8“)
41	876764 Whirlpool Refrigerator Primary Valve
41	978026 Whirlpool Refrigerator Primary Valve
41	978030 Whirlpool Refrigerator Valve
41	WP978025 Whirlpool Refrigerator Valve
41	VALVE, ACCESS (1/2“)
41	978027 Whirlpool Refrigerator Primary Valve
41	67006434 Whirlpool Axle Pin
41	REFRIGERANT CHARGE 5.00 Ozs. (R-134A)
